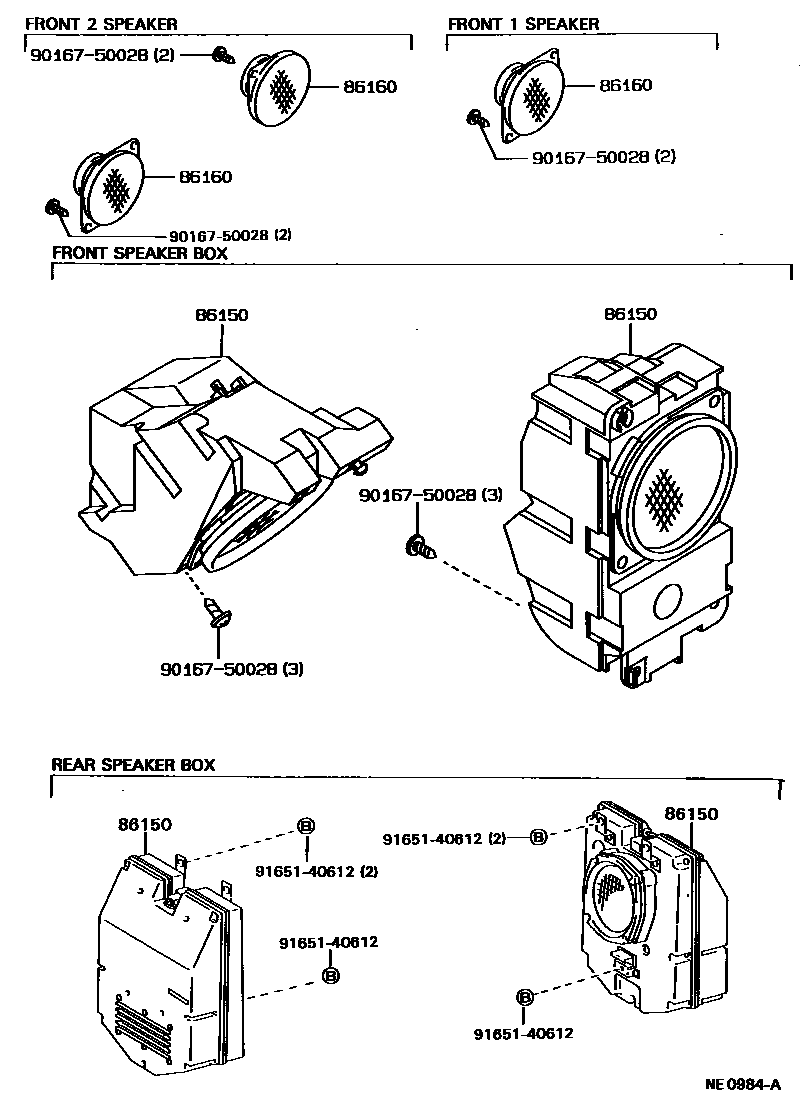

SPEAKER

0001 1 0002 1

86150SPEAKER ASSY, W/BOX, NO.1

main86150-35030iKZN130,VZN130..JPP..RHD199308-199511

LH

main86150-35040×2iKZN130,LN130,VZN130..JPP199108-199511

W(4-SPEAKER),RR

main86150-35050iKZN130,VZN130..JPP..RHD199308-199511

RH

main86150-35060iKZN130,LN130,VZN130..JPP..LHD199108-199511

FRONT,LH

main86150-35070iKZN130,LN130,VZN130..JPP..LHD199108-199511

FRONT,RH

main86150-89103iLN130,VZN130..JPP198908-199108

W(4-SPEAKER),LH

main86150-89104iLN130,VZN130..JPP198908-199108

W(4-SPEAKER),RH

main86150-89107×2iLN130,VZN130..JPP198908-199108

W(4-SPEAKER)

main86150-89108×2iLN130,VZN130..JPP198908-199108

W(4-SPEAKER),RR

86160SPEAKER ASSY, FRONT NO.1

main86160-16130×2iLN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP198808-199108

W(4-SPEAKER)

main86160-35080×2iLN105,85,YN106,85..JPP;KZN130,LN108,110,130,90,RN106,110,VZN130,YN110,90..JPP..LHD199108

9016750028

main90167-50028

9165140612

main91651-40612

4 parts on this diagram · 2 diagrams in section
