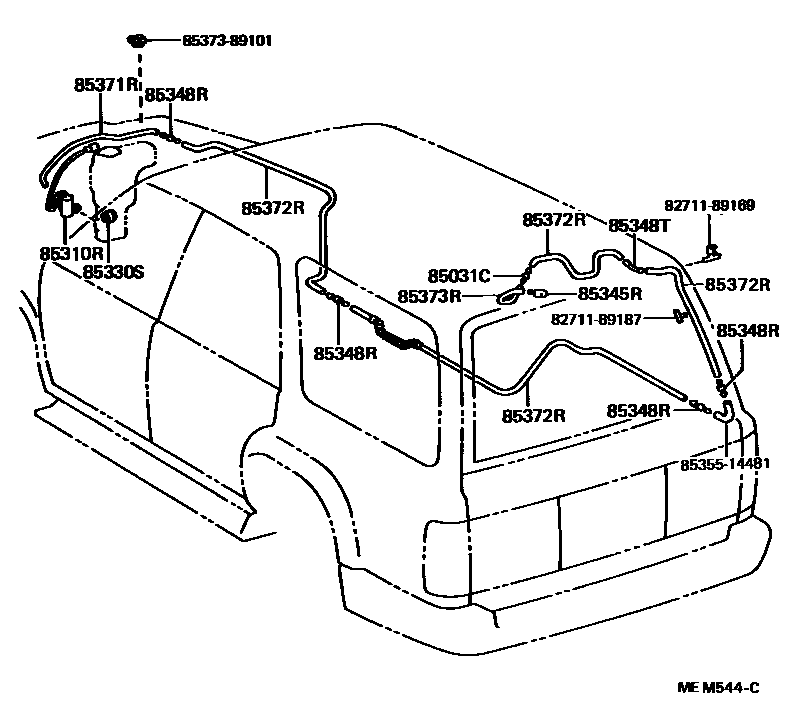

REAR WASHER
85031CVALVE SUB-ASSY, WASHER
W(REAR WIPER)
85330SBUSH, REAR WASHER JAR
85345RNOZZLE, REAR WASHER
85348RJOINT, REAR WASHER HOSE, NO.1
85348TJOINT, REAR WASHER HOSE, NO.2
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
L=1800(*H,L=480)
L=1800(*H,L=670),*FRG
L=1800(*H,L=380)
85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
L=1800(*H,L=700)
L=1800(*H,L=30)
L=1800(*H,L=380)
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
L=1800(*H,L=530)
L=1800(*H,L=1080)
8271189169WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-89169
8271189187WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-89187
8535514481VALVE, WINDSHIELD WASHER HOSE
main85355-14481
8537389101HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
main85373-89101
13 parts on this diagram · 2 diagrams in section
