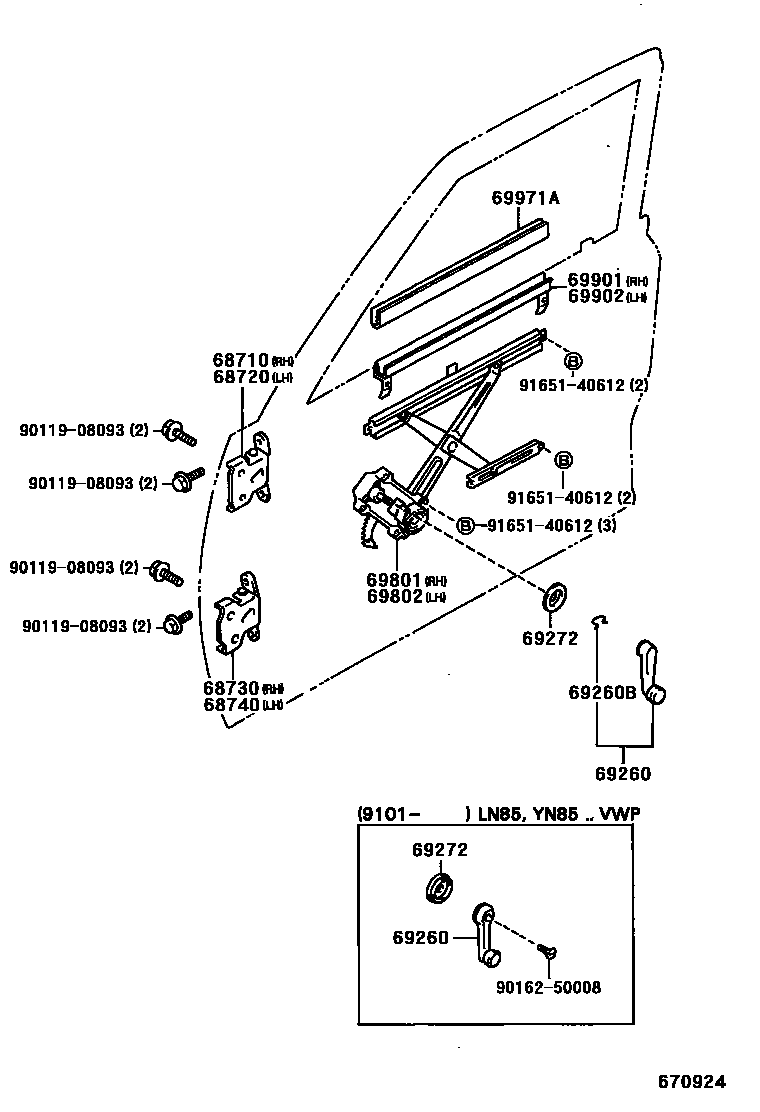

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-20060iLN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP198808-199108

main68710-35010iKZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP199108

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-20050iLN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP198808-199108

main68720-35010iKZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP199108

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-14030iLN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP198808-199108

main68730-35010iKZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP199108

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-14030iLN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP198808-199108

main68740-35010iKZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP199108

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-14030-17iLN130,VZN130..JPP198912-199008

RED,TRIM3#

sub69260-14030

main69260-14030-18iLN130,VZN130..JPP198912-199008

BLUE,TRIM8#

sub69260-14030

main69260-14030-50iLN130,VZN130..JPP198908-199008

MEDIUM GRAY,TRIM1#

sub69260-14030

main69260-14030-57iLN130,VZN130..JPP198912-199008

BROWN,TRIM4#

sub69260-14030

main69260-89104-03iLN105,110,85,90,RN110,YN106,110,85,90..JPP198808-198901

GRAY,TRIM1#

sub69260-89104

main69260-89104-04iLN105,110,85,90,RN110,YN106,110,85,90..JPP198808-198901

BLUE,TRIM8#

sub69260-89104

main69260-89104-06iLN105,110,85,90,RN110,YN106,110,85,90..JPP198808-198901

BROWN,TRIM4#

sub69260-89104

main69260-89104-B0iLN10#,110,85,90,RN106,110,YN106,110,85,90..JPP198901-199708

MEDIUM GRAY,TRIM1#

sub69260-89104

main69260-89104-E0iLN105,110,85,90,RN106,110,YN106,110,85,90..JPP198901-199108

BROWN,TRIM4#

sub69260-89104

main69260-89104-J0iLN10#,110,85,90,RN106,110,YN106,110,85,90..JPP198901-199408

MEDIUM BLUE,TRIM8#

sub69260-89104

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002iLN10#,110,85,90,RN106,110,YN106,110,85,90..JPP198808-199008

sub90520-01274

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69268-16010iLN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP198808-199108

sub69268-20020

main69268-20020iLN10#,110,85,90,RN106,110,YN106,110,85,90..JPP199108

sub69285-22010

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-35010iLN105,110,85,90,RN106,110,YN106,110,85,90..JPP..T1199204

main69801-35020iLN10#,85,RN106..JPP..TW1199206

main69801-35040iKZN130,LN130,VZN130..JPP199206-199511

main69801-35040iLN108..JPP199511-199703

SPECIAL EDITION(PORTUGAL)

main69801-35040iLN85..JPP..TW1199510-199701

ISRAEL(SPORT SEAT)

main69801-89113iLN105,110,85,90,RN106,110,YN106,110,85,90..JPP..T1198808-199204

sub69801-35010

main69801-89117iLN10#,85,RN106..JPP..TW1198808-199206

sub69801-35020

main69801-89120iLN130,VZN130..JPP199008-199206

sub69801-35040

main69801-89120iLN130,VZN130..JPP198908-199008

W(POWER WINDOW)

sub69801-35040

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-35010iLN105,110,85,90,RN106,110,YN106,110,85,90..JPP..T1199204

main69802-35020iLN10#,85,RN106..JPP..TW1199206

main69802-35040iLN108..JPP199511-199703

SPECIAL EDITION(PORTUGAL)

main69802-35040iKZN130,LN130,VZN130..JPP199206-199511

main69802-35040iLN85..JPP..TW1199510-199701

ISRAEL(SPORT SEAT)

main69802-89111iLN105,110,85,90,RN106,110,YN106,110,85,90..JPP..T1198808-199204

sub69802-35010

main69802-89115iLN10#,85,RN106..JPP..TW1198808-199206

sub69802-35020

main69802-89117iLN130,VZN130..JPP199008-199206

sub69802-35040

main69802-89117iLN130,VZN130..JPP198908-199008

W(POWER WINDOW)

sub69802-35040

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-89113iLN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP199001-199008

W(POWER WINDOW)

main69901-89113iLN105,110,85,90,RN106,110,VZN130,YN106,110,85,90..JPP198808-199111

main69901-89113iLN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP199001-199008

GLASS T=3.5

main69901-89115iLN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP199001-199008

GLASS T=4.0

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69901-89113iLN130,VZN130..JPP199001-199008

W(POWER WINDOW)

main69901-89113iLN105,110,85,90,RN106,110,VZN130,YN106,110,85,90..JPP198808-199111

main69901-89113iLN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP199001-199008

GLASS T=3.5

main69901-89115iLN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP199001-199008

GLASS T=4.0

69971AFILLER, FRONT DOOR GLASS CHANNEL

main69971-89106iLN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP199001-199008

GLASS T=3.5

main69971-89106iLN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP199001-199008

W(POWER WINDOW)

main69971-89106iLN130,VZN130..JPP198808-199111

main69971-89109iLN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP199001-199008

GLASS T=4.0

sub69971-89103

9011908093

main90119-08093

9016250008

main90162-50008

9165140612

main91651-40612

15 parts on this diagram · 1 diagram in section
