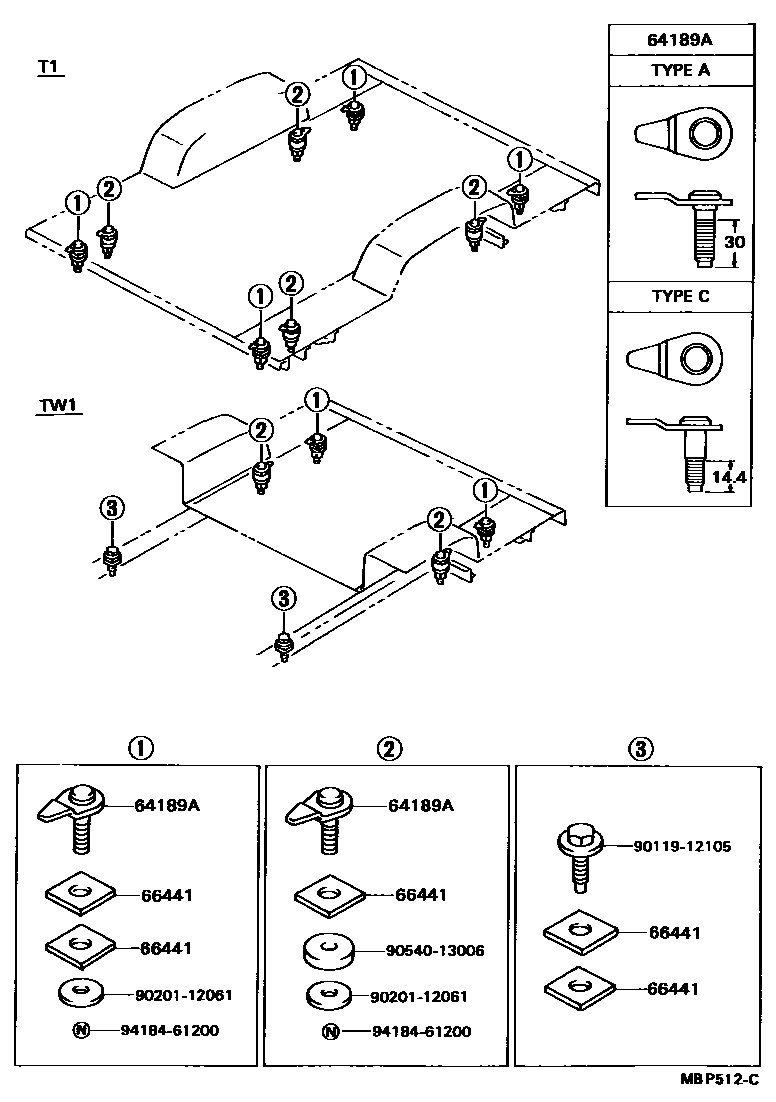

REAR BODY MOUNTING

64189ABOLT, REAR BODY MOUNTING

main64189-35010iLN105,110,85,90,RN106,110,YN106,110,85,90..JPP..T1199308-199309

TYPE A:REFER TO ILLUSTRATION

main64189-35010iLN10#,85,RN106..JPP..TW1199308

TYPE A

main64189-35020iLN10#,85,RN106..JPP..TW1199308

TYPE C:REFER TO ILLUSTRATION

main64189-89103iLN105,110,85,90,RN106,110,YN106,110,85,90..JPP..T1199006-199308

TYPE A

sub64189-35010

main64189-89103iLN105,85..JPP..TW1198808-199006

TYPE A:REFER TO ILLUSTRATION

sub64189-35010

main64189-89105iLN105,110,85,90,RN106,110,YN106,110,85,90..JPP..T1199006-199308

TYPE C

sub64189-35020

66441SHIM, MOUNTING, NO.1

main90950-04019iLN105,85..JPP..TW1198808-198907

OD=17

main90950-04020iLN105,85..JPP..TW1198808-198907

OD=12

main90950-04025iLN10#,85,RN106..JPP..TW1198907-199306

T=3.5

main90950-04026iLN10#,110,85,90,RN106,110,YN106,110,85,90..JPP199306-199309

T=3.0

sub90950-04028

main90950-04027iLN105,110,85,90,RN106,110,YN106,110,85,90..JPP..T1199306-199309

T=5.0

sub90950-04029

main90950-04028iLN10#,85,RN106..JPP..TW1199308-199309

T=3.0

main90950-04029iLN10#,110,85,90,RN106,110,YN106,110,85,90..JPP199308-199309

T=5.0

9011912105

main90119-12105

9020112061

main90201-12061

9054013006

main90540-13006

9418461200

main94184-61200

6 parts on this diagram · 1 diagram in section
