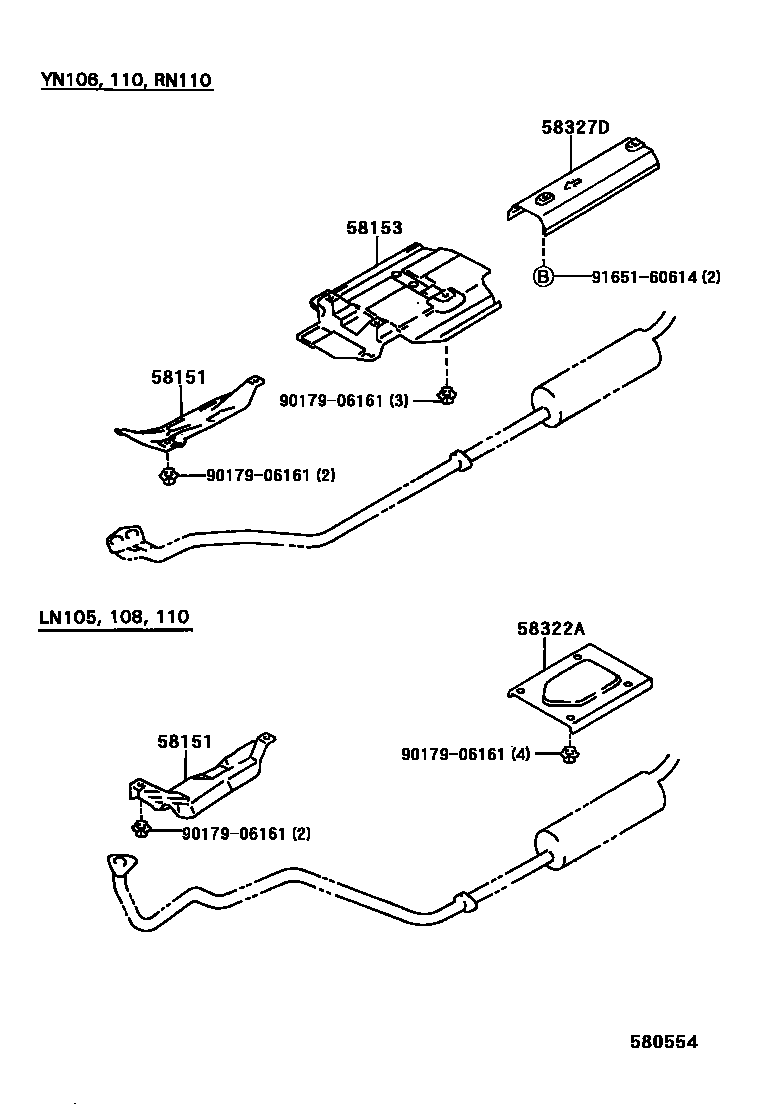

FLOOR INSULATOR

0001 1 0002 1 0003 1

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58041-89107iRN106,110,YN106,110..JPP198905

main58151-35010iLN10#,110,130..JPP199410

main58151-89112iYN85,90..JPP198808-199408

main58151-89113iLN85,90..JPP198808

main58151-89116iLN10#,110,130..JPP198808-199410

sub58151-35010

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-89111iRN106,VZN130..JPP198908-199108

main58153-89112iRN106,110..JPP..(DCB,XTR)198808

58322AINSULATOR, REAR FLOOR HEAT, REAR

main58322-89103iLN105,85,RN106..JPP..TW1198808-199508

58327DINSULATOR, MAIN MUFFLER HEAT, UPPER

main58327-89106iRN106,110..JPP..T1..CBU198808

9017906161

main90179-06161

9165160614

main91651-60614

6 parts on this diagram · 3 diagrams in section
