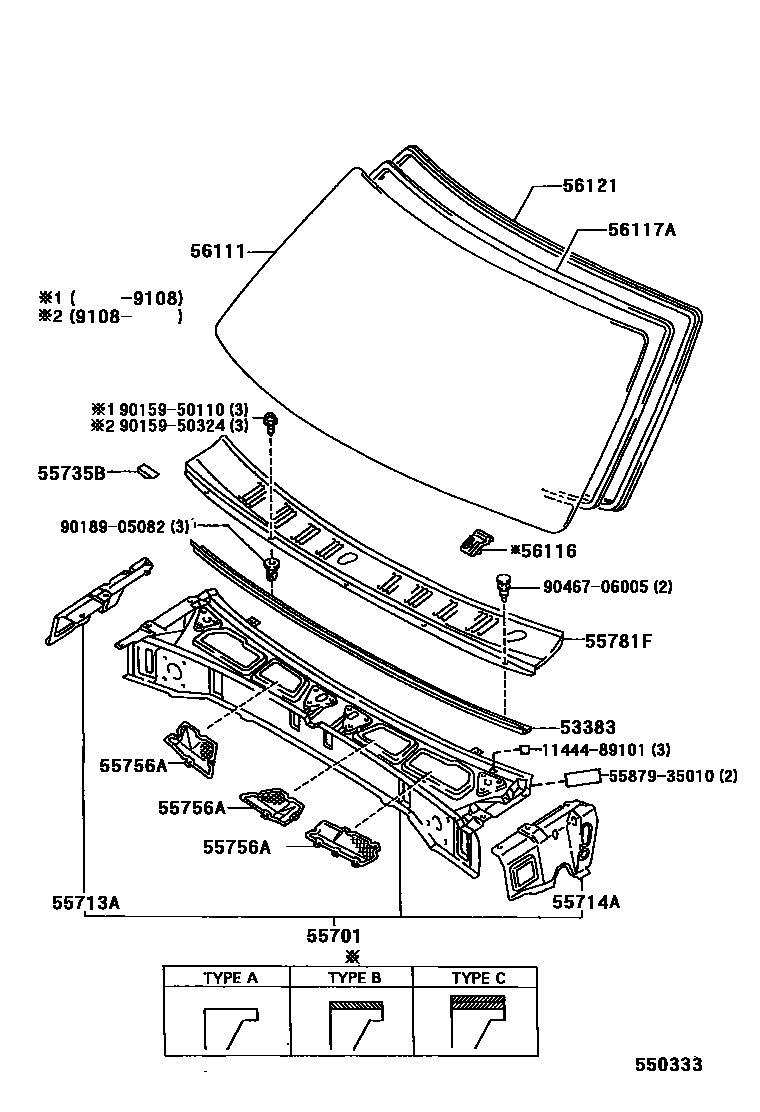

COWL PANEL & WINDSHIELD GLASS

53383SEAL, HOOD TO COWL TOP

main53383-89106iKZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP198808

55701PANEL SUB-ASSY, COWL

main55700-35060iKZN130,LN105,85..JPP..RHD199108

PLANT NO.A51,A52

main55700-35110iYN106,85..JPP..RHD199108-199408

PLANT NO.A51,A52

main55700-35110iVZN130..JPP..RHD199308-199511

main55700-89130iYN110,85,90..JPP..LHD198808-199005

PLANT NO. P11

sub55700-89134

main55700-89131iLN10#,110,85,90..JPP..LHD198808

main55700-89134iKZN130,LN130..JPP..LHD199001-199511

main55700-89138iLN105..JPP..RHD198808-198901

main55700-89138iLN105..JPP..RHD198901-199005

PLANT NO. P11

main55700-89141iYN106,85..JPP..RHD198901-199005

PLANT NO. P11

sub55700-89155

main55700-89145iRN110..JPP198901-198906

PLANT NO. A51,A52

sub55700-89146

main55700-89146iRN106,110..JPP199005-199108

PLANT NO.A51,A52

main55700-89146iRN110..JPP198808-198901

main55700-89146iRN106,110..JPP198901-199005

PLANT NO. P11

main55700-89146iRN106,110,VZN130..JPP198906-199005

PLANT NO. A51,A52

main55700-89149iLN105..JPP..RHD198901-199005

PLANT NO. A51,A52

sub55700-35060

main55700-89149iKZN130,LN105,85..JPP..RHD199108

PLANT NO.P11

sub55700-35060

main55700-89149iLN105..JPP..RHD199005-199108

sub55700-35060

main55700-89155iYN106,85..JPP..RHD199005-199108

main55700-89155iYN106,85..JPP..RHD198901-199005

PLANT NO. A51,A52

main55700-89155iYN106,85..JPP..RHD199108-199408

PLANT NO.P11

55713APANEL, COWL TOP SIDE, RH

main55713-89105iKZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP198808

55714APANEL, COWL TOP SIDE, LH

main55714-89106iKZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP198808

55735BSEAL, FRONT AIR SHUTTER

main55735-89101iKZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP198808

55756ASCREEN, HEATER AIR DUCT

main55756-89108iLN105,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD198808-199008

COLD SPEC,LH

main55756-89108iLN105,YN106,85..JPP..RHD198808-199008

LH

main55756-89109iLN105,YN106,85..JPP..RHD198808-199008

COLD SPEC,CENTER

main55756-89109iLN105,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD198808-199008

CENTER

main55756-89110iKZN130,LN105,85,VZN130,YN106,85..JPP..RHD198808

RH

main55756-89111iLN105,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD198808-199008

COLD SPEC,RH

main55756-89111iKZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD199008

RH

55781FLOUVER, COWL TOP VENTILATOR

main55781-89103iKZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD198808

main55781-89104iKZN130,LN105,85,VZN130,YN106,85..JPP..RHD198808

56111GLASS, WINDSHIELD

main56111-0W150iLN105,110,85,90,RN106,110..JPP..(DLX,STD)199410

*LAM,T=5.3

sub56111-89144

main56111-0W170iLN108,110,90,RN106,110..JPP..(DLX,SR5)199410

*TL,T=5.3,GREEN

sub56111-89145

main56111-89142iLN105,110,85,90,RN106,110,YN106,110,85,90..JPP..(DLX,STD)198808-199208

*ZT,T=5.0

sub56111-89144

main56111-89144iLN105,110,85,90,RN106,110,YN106,110,85,90..JPP..(DLX,STD)198808-199410

*LAM,T=5.3

sub56111-89145

main56111-89145iYN110,90..JPP198808-199410

*TL,T=5.3

sub56111-35390

main56111-89145iYN110,90..JPP198808-199108

*TL,T=5.3,W(SHADE)

sub56111-35390

main56111-89147iKZN130,LN130,VZN130..JPP198908-199511

*TL,T=5.3,BLUE

sub56111-35410

main56111-89148iLN130,VZN130..JPP198908-199108

*TL,T=5.3,BRONZE

56116SPACER, WINDSHIELD GLASS

main56116-89104iKZN130,LN130,VZN130..JPP198908-199511

TYPE A

main56116-89105iKZN130,LN130,VZN130..JPP198908-199511

TYPE B

main56116-89106iKZN130,LN130,VZN130..JPP198908-199511

TYPE C

56117ADAM, WINDOW GLASS ADHESIVE

main56117-89104iLN85..JPP..TW1;LN105,110,90,RN106,110,YN106,110,90..JPP198808-199108

CHROME PLATED PACKAGE

main56117-89104iKZN130,LN130,VZN130..JPP198908-199511

56121WEATHERSTRIP, WINDSHIELD

main56121-89120iLN10#,110,85,90,RN106,110,YN106,110,85,90..JPP198808

main56121-89121iLN85..JPP..TW1;LN10#,110,90,RN106,110,YN106,110,90..JPP198808

CHROME PLATED PACKAGE

1144489101PLUG, HOLE

main11444-89101

5587935010PACKING, FRONT VENTILATOR

main55879-35010

9015950110

main90159-50110

9015950324

main90159-50324

9018905082

main90189-05082

9046706005

main90467-06005

17 parts on this diagram · 1 diagram in section
