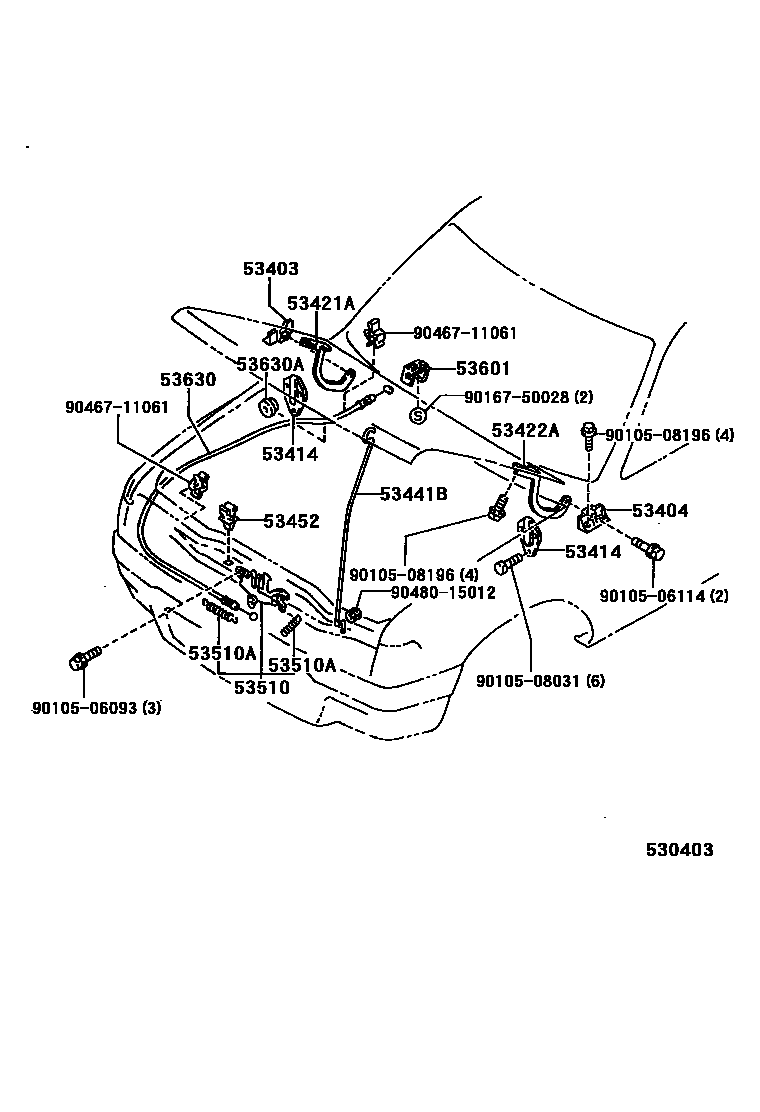

HOOD LOCK & HINGE

53403BRACKET SUB-ASSY, HOOD HINGE, RH

main53403-89102iLN105,110,85,90,RN106,110,VZN130,YN106,110,85,90..JPP198808-198909

main53403-89102iKZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP198909-199511

RH,P11

main53403-89103iKZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP198909-199511

RH,A51-A54

53404BRACKET SUB-ASSY, HOOD HINGE, LH

main53404-89102iLN105,110,85,90,RN106,110,VZN130,YN106,110,85,90..JPP198808-198909

main53404-89102iKZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP198909-199511

LH,P11

main53404-89103iKZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP198909-199511

LH,A51-A54

53414SEAL, HOOD HINGE

main53414-89103iKZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP198808

53421AARM, HOOD HINGE, RH

main53421-89103iLN105,110,85,90,RN106,110,VZN130,YN106,110,85,90..JPP198808-198909

main53421-89103iKZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP198909-199511

RH,P11

main53421-89104iKZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP198909-199511

RH,A51-A54

53422AARM, HOOD HINGE, LH

main53422-89102iLN10#,110,85,90,RN106,110..JPP198808-198909

main53422-89102iKZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP198909-199511

LH,P11

main53422-89103iKZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP198909-199511

LH,A51-A54

53441BSUPPORT, HOOD

main53441-89105iKZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP198808

53452HOLDER, HOOD STAY

main53452-90351iKZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP198808

53510LOCK ASSY, HOOD

main53510-35030iKZN130,LN105,85,VZN130,YN106,85..JPP..RHD199108

main53510-35050iKZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD199108

main53510-89115iLN105,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD198808-199108

main53510-89116iLN105,YN106,85..JPP..RHD198808-199108

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-07019iLN105,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD199011-199108

WD=0.7,CW=29.25,L=34,L=34

main90506-07021iKZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP199108

WD=0.7,CW=37.25,L=40

main90506-09039iLN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP198808-199108

WD=0.9,CW=21.25,L=34

main90506-20008iKZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP198808

WD=2.0,CW=17,L=59

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-89103-02iLN130,VZN130..JPP198908-199108

RED,TRIM3#

sub53601-89103

main53601-89103-03iLN105,110,85,90,RN110,YN106,110,85,90..JPP198808-198901

GRAY,TRIM1#

sub53601-89103

main53601-89103-04iLN105,110,85,90,RN110,YN106,110,85,90..JPP198808-198901

BLUE,TRIM8#

sub53601-89103

main53601-89103-06iLN105,110,85,90,RN110,YN106,110,85,90..JPP198808-198901

BROWN,TRIM4#

sub53601-89103

main53601-89103-B0iKZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP198901-199708

MEDIUM GRAY,TRIM1#

sub53601-89103

main53601-89103-E0iLN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP198901-199108

BROWN,TRIM4#

sub53601-89103

main53601-89103-E2iKZN130,LN130,VZN130..JPP..LHD199308-199511

OAK,TRIM4#

sub53601-89103

main53601-89103-J0iKZN130,LN130,VZN130..JPP198901-199511

MEDIUM BLUE,TRIM8#

sub53601-89103

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-89113iLN105,110,85,90,RN110,YN106,110,85,90..JPP198808-198809

sub53630-89114

main53630-89114iKZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP198809

53630AGROMMET(FOR HOOD LOCK CONTROL CABLE)

main90480-40008iKZN130,LN105,85,VZN130,YN106,85..JPP..RHD198808

9010506093

main90105-06093

9010506114

main90105-06114

9010508031

main90105-08031

9010508196

main90105-08196

9016750028

main90167-50028

9046711061

main90467-11061

9048015012

main90480-15012

19 parts on this diagram · 1 diagram in section
