RADIATOR GRILLE

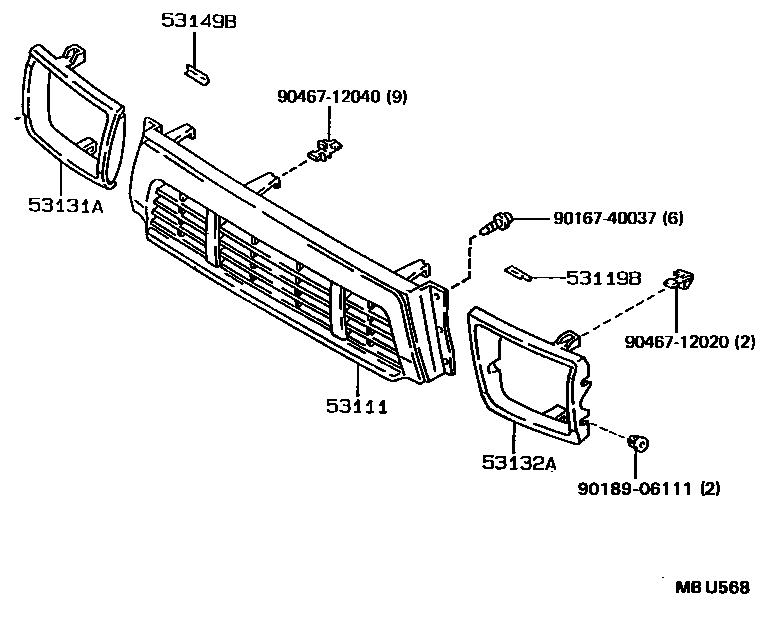

Parts diagram
53111GRILLE, RADIATOR
main53111-35050i198811-199108
VW BRAND
main53111-35060i199108-199408
NO PAINT REQ.
main53111-35070i199108-199408
PLATED
main53111-35110i199108-199408
NO PAINT REQ.,*FRG
main53111-35130i199108-199408
NO PAINT REQ.
main53111-35130i199108-199408
NO PAINT REQ.,VW BRAND
main53111-35140i199108-199408
NO PAINT REQ.
sub53111-35151
main53111-35150i199108-199402
PLATED
sub53111-35151
main53111-35151i199402-199408
PLATED
main53111-35160i199108-199511
NO PAINT REQ.
main53111-35170i199108-199308
PLATED
sub53111-35171
main53111-35171i199308-199511
PLATED
main53111-35250i199408
NO PAINT REQ.
main53111-35280i199408
PLATED
main53111-35300i199408
NO PAINT REQ.
main53111-35310i199408
PLATED
main53111-89130i198808-199108
NO PAINT REQ.
sub53111-89131
main53111-89131i198808-199108
NO PAINT REQ.
main53111-89132i198808-199108
PLATED
main53111-89134i198808-199108
PLATED,*FRG
main53111-89136i198808-199108
NO PAINT REQ.
main53111-89137i198808-199108
NO PAINT REQ.
main53111-89138i198808-199108
PLATED
main53111-89139i198811-199108
PLATED,VW BRAND
main53111-89140i198811-199108
NO PAINT REQ.,VW BRAND
main53111-89141i198905-199108
NO PAINT REQ.,VW BRAND
main53111-89142i198811-199108
PLATED,VW BRAND
main53111-89143i198908-199108
NO PAINT REQ.
main53111-89144i198908-199108
PLATED
53119BPROTECTOR, RADIATOR GRILLE
main53119-35010i199108-199511
main53119-89105i198808-199108
53131ADOOR, HEADLAMP, RH
main53131-35030i199408
CHROME PLATED PACKAGE
main53131-35040i199108-199408
*FRG
main53131-35050i199108-199408
VW BRAND
main53131-35060i199108-199408
main53131-35070i199108-199402
CHROME PLATED PACKAGE
sub53131-35071
main53131-35071i199408
CHROME PLATED PACKAGE & VW BRAND
main53131-35071i199402-199408
CHROME PLATED PACKAGE
main53131-35080i199108-199408
*FRG
main53131-35090i199108-199408
*FRG & CHROME PLATED PACKAGE
main53131-35100i199408
main53131-89117i198808-199108
CHROME PLATED PACKAGE
main53131-89118i198808-199108
main53131-89119i198908-199108
main53131-89120i198808-199108
*FRG
main53131-89121i198808-199108
CHROME PLATED PACKAGE
main53131-89122i198811-199108
VW BRAND
main53131-89122i198811-199108
*FRG OR VW BRAND
main53131-89123i198811-199108
CHROME PLATED PACKAGE & VW BRAND
main53131-89124i198808-199108
*FRG & CHROME PLATED PACKAGE
main53131-89125i198905-199108
VW BRAND
main53131-89126i198908-199108
CHROME PLATED PACKAGE
main53131-89127i198908-199108
*FRG
main53131-89128i198908-199108
*FRG & CHROME PLATED PACKAGE
53132ADOOR, HEADLAMP, LH
main53132-35030i199408
CHROME PLATED PACKAGE
main53132-35040i199108-199408
*FRG
main53132-35050i199108-199408
VW BRAND
main53132-35060i199108-199408
main53132-35070i199108-199402
CHROME PLATED PACKAGE
sub53132-35071
main53132-35071i199402-199408
CHROME PLATED PACKAGE
main53132-35071i199408
CHROME PLATED PACKAGE & VW BRAND
main53132-35080i199108-199408
*FRG
main53132-35090i199108-199408
*FRG & CHROME PLATED PACKAGE
main53132-35100i199408
main53132-89116i198808-199108
CHROME PLATED PACKAGE
main53132-89117i198808-199108
main53132-89118i198908-199108
main53132-89119i198808-199108
*FRG
main53132-89120i198808-199108
CHROME PLATED PACKAGE
main53132-89121i198811-199108
*FRG OR VW BRAND
main53132-89121i198811-199108
VW BRAND
main53132-89121i198808-198811
*FRG
main53132-89122i198811-199108
CHROME PLATED PACKAGE & VW BRAND
main53132-89123i198808-199108
*FRG & CHROME PLATED PACKAGE
main53132-89124i198905-199108
VW BRAND
main53132-89125i198908-199108
CHROME PLATED PACKAGE
main53132-89126i198908-199108
*FRG
main53132-89127i198908-199108
*FRG & CHROME PLATED PACKAGE
53149BPROTECTOR, HEADLAMP DOOR, NO.3
main53149-35010i199108-199511
main53149-89101i198808-199108
9016740037
main90167-40037
9018906111
main90189-06111
9046712020
main90467-12020
9046712040
main90467-12040

9 parts on this diagram · 9 diagrams in section
