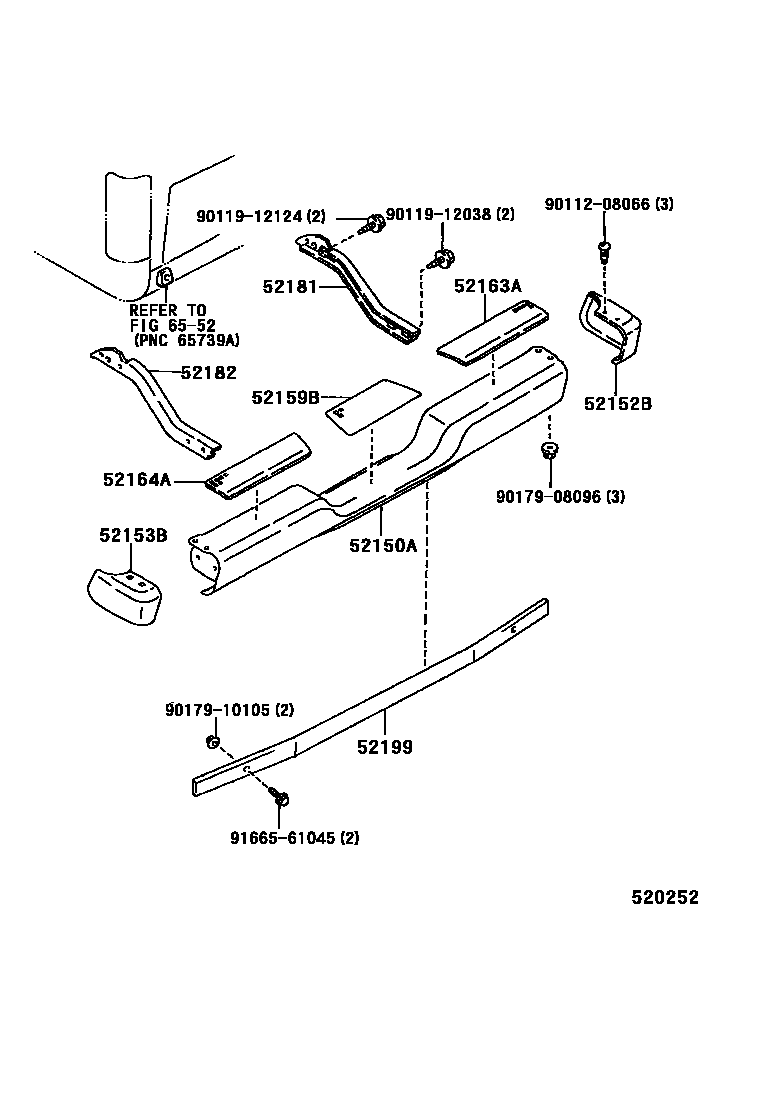

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52150ABUMPER ASSY, REAR

main52105-35040iKZN130,VZN130..JPP..LHD¥51,700199108-199511

CHROME PLATED BUMPER WIDE SPARE TIRE

main52105-35060-E0iVZN130..JPP199108-199308

W(265/70R 15 TIRE & PAINTED BUMPER),SILVER M.,27L

sub52105-35908¥24,200

main52105-35060-F0iKZN130,VZN130..JPP..RHD199308-199511

BLUE GRAY M.,25T

sub52105-35908¥24,200

main52105-35060-F0iKZN130,VZN130..JPP..LHD199108-199511

W(265/70R 15 TIRE),BLUE GRAY M.,25T

sub52105-35908¥24,200

main52105-35080-E0iKZN130..JPP..RHD199502

SPECIAL EMPLOYED VEHICLE,SILVER M.

sub52105-35910¥24,200

main52105-35080-E0iLN130,VZN130..JPP199108-199308

SILVER M.,27L

sub52105-35910¥24,200

main52105-35080-F0iKZN130,LN130,VZN130..JPP..LHD199108-199511

BLUE GRAY M.,25T

sub52105-35910¥24,200

main52105-35080-F0iKZN130..JPP..RHD199502-199508

SPECIAL EMPLOYED VEHICLE,BLUE GRAY M.

sub52105-35910¥24,200

main52105-35100iKZN130,LN130,VZN130..JPP..LHD¥39,900199108-199511

sub52105-35912¥24,200

main52105-35110iKZN130,VZN130..JPP..LHD¥39,900199108-199511

PAINTED BUMPER WIDE SPARE TIRE

sub52105-35913¥24,200

main52105-35110iKZN130,VZN130..JPP..RHD¥39,900199308-199511

sub52105-35913¥24,200

main52105-35160iLN130,VZN130..JPP¥51,700199108-199511

CHROME PLATED BUMPER

main52105-89118iLN130,VZN130..JPP¥40,400198908-199108

sub52105-35905¥24,400

main52105-89119iLN130,VZN130..JPP¥51,600198908-199108

CHROME PLATED PACKAGE

sub52105-35160¥51,700

main52105-89121-03iLN130,VZN130..JPP198908-199108

SILVER.M,27L

sub52105-35906¥26,900

main52105-89121-13iLN130,VZN130..JPP198908-199108

D.GRAY.M,28L

sub52105-35906¥26,900

main52150-35010iLN10#,110,RN106,YN110..JPP..CBU¥40,000199108

PAINTED STEP BUMPER

main52150-89113iLN105,110,RN106,YN110..JPP..CBU¥40,400198811-199108

PAINTED STEP BUMPER

main52150-89113iLN105,110,RN110,YN110..JPP..CBU¥40,400198808-198811

52152BEXTENSION, REAR BUMPER, RH

main52106-35020iKZN130,LN130,VZN130..JPP¥28,700199108-199511

sub52106-35902¥17,400

main52106-35030-E0iLN130,VZN130..JPP199108-199308

SILVER M.,27L

main52106-35030-F0iKZN130,LN130,VZN130..JPP199108-199511

BLUE GRAY M.,25T

main52106-89105iLN130,VZN130..JPP¥28,700198908-199108

main52106-89106iKZN130,LN130,VZN130..JPP..LHD¥24,500199108-199511

W(CHROME PLATED BUMPER)

main52106-89106iLN130,VZN130..JPP¥24,500198908-199108

CHROME PLATED PACKAGE

main52106-89107-03iLN130,VZN130..JPP198908-199108

SILVER.M,27L

main52106-89107-13iLN130,VZN130..JPP198908-199108

D.GRAY.M,28L

main52152-35010iRN110..JPP¥5,600199108

W(PAINTED STEP BUMPER)

main52152-89112iLN105,110,RN106,YN110..JPP..CBU¥4,040198811-199108

W(PAINTED STEP BUMPER)

main52152-89112iLN105,110,RN110,YN110..JPP..CBU¥4,040198808-198811

52153BEXTENSION, REAR BUMPER, LH

main52107-35010iKZN130,LN130,VZN130..JPP¥28,700199108-199511

sub52107-35902¥17,400

main52107-35020-E0iLN130,VZN130..JPP199108-199308

SILVER M.,27L

main52107-35020-F0iKZN130,LN130,VZN130..JPP199108-199511

BLUE GRAY M.,25T

main52107-89103iLN130,VZN130..JPP¥28,700198908-199108

main52107-89104iKZN130,LN130,VZN130..JPP..LHD¥24,500199108-199511

W(CHROME PLATED BUMPER)

main52107-89104iLN130,VZN130..JPP¥24,500198908-199108

CHROME PLATED PACKAGE

main52107-89105-03iLN130,VZN130..JPP198908-199108

SILVER.M,27L

main52107-89105-13iLN130,VZN130..JPP198908-199108

D.GRAY.M,28L

main52153-35010iLN10#,110,RN106,YN110..JPP..CBU¥5,600199108

W(PAINTED STEP BUMPER)

main52153-89112iRN110..JPP¥4,040198811-199108

W(PAINTED STEP BUMPER)

main52153-89112iLN105,110,RN110,YN110..JPP..CBU¥4,040198808-198811

52159BPLATE, REAR BUMPER

main52159-89102iLN105,110,RN110,YN110..JPP..CBU¥2,260198808-198811

main52159-89102iLN10#,110,RN106,YN110..JPP..CBU¥2,260198811

W(PAINTED STEP BUMPER)

main52159-89106iKZN130,LN130,VZN130..JPP¥10,600198908-199511

52163APLATE, REAR BUMPER, RH

main52163-89101iLN10#,110,RN106,110,YN110..JPP..CBU¥1,870198808

52164APLATE, REAR BUMPER, LH

main52164-89101iLN10#,110,RN106,110,YN110..JPP..CBU¥1,870198808

52181ARM, REAR BUMPER, RH

main52181-89117iLN10#,RN106..JPP..CBU¥12,700198808

main52181-89118iLN110,YN110..JPP¥10,400198811

W(PAINTED STEP BUMPER)

main52181-89118iLN110,RN110,YN110..JPP¥10,400198808-198811

52182ARM, REAR BUMPER, LH

main52182-89114iLN10#,RN106..JPP..CBU¥12,700198808

main52182-89115iLN110,YN110..JPP¥10,400198811

W(PAINTED STEP BUMPER)

main52182-89115iLN110,RN110,YN110..JPP¥10,400198808-198811

52199WEIGHT, REAR BUMPER

main52199-89102iRN110..JPP¥12,700198811

6552

9011208066

main90112-08066¥180

9011912038

main90119-12038¥360

9011912124

main90119-12124¥310

9017908096

main90179-08096¥110

9017910105

main90179-10105¥240

9166561045

main91665-61045¥210

16 parts on this diagram · 2 diagrams in section
