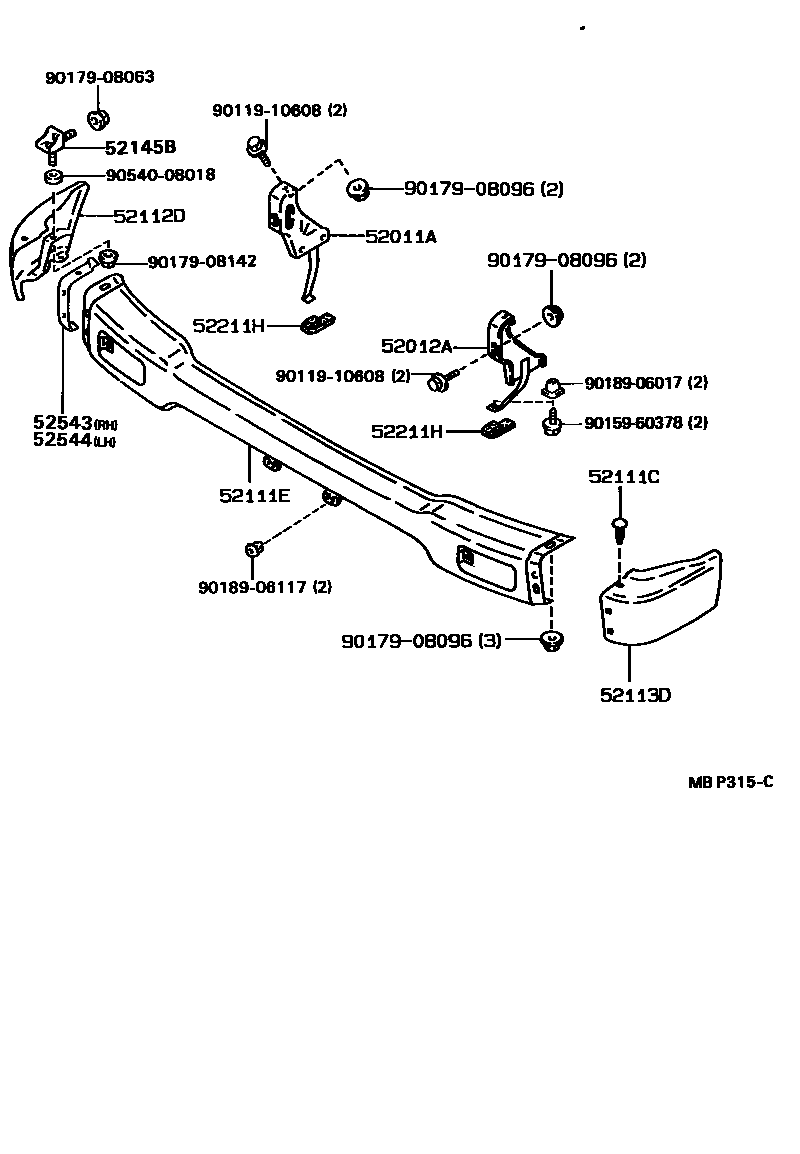

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1

52011AARM SUB-ASSY, FRONT BUMPER, RH

main52011-04020iLN85,90,YN85,90..JPP199208

(L)

main52011-35030iLN10#,110,RN106,110,YN106,110..JPP199108

main52011-35050iKZN130,LN130,VZN130..JPP199108-199511

main52011-35060iLN85,90,YN85,90..JPP199108

(J)

main52011-89115iLN85,90,YN85,90..JPP198808-199108

main52011-89116iLN105,110,RN106,110,YN106,110..JPP198808-199108

main52011-89117iLN130,VZN130..JPP198908-199108

52012AARM SUB-ASSY, FRONT BUMPER, LH

main52012-04020iLN85,90,YN85,90..JPP199208

(L)

main52012-35030iLN10#,110,RN106,110,YN106,110..JPP199108

main52012-35050iKZN130,LN130,VZN130..JPP199108-199511

main52012-35060iLN85,90,YN85,90..JPP199108

(J)

main52012-89115iLN85,90,YN85,90..JPP198808-199108

main52012-89116iLN105,110,RN106,110,YN106,110..JPP198808-199108

main52012-89117iLN130,VZN130..JPP198908-199108

52111CBOLT, ROUND HEAD SQUARE NECK(FOR FRONT BUMPER)

main90112-08069iLN105,110,130,RN106,110,VZN130,YN106,110..JPP198808-199108

CHROME PLATED PACKAGE

main90112-08070iVZN130..JPP..4FC;LN105,110,130,YN110..JPP..LHD..(4D,T1)..CBU198808-199108

FINLAND SPEC

main90112-08070iRN110..JPP198808-199008

SWEDEN SPEC OR CHROME PLATED PACKAGE & W(HEADLAMP CLEANER)

main90112-08070iLN105,110,130,RN106,110,VZN130,YN106,110..JPP198808-199108

CHROME PLATED PACKAGE & W(HEADLAMP CLEANER)

main90112-08070iVZN130..JPP..5F199008-199108

SWEDEN SPEC

main90112-08070iVZN130..JPP..5F199008-199108

FINLAND SPEC OR SWEDEN SPEC

main90112-08072-03iLN130,VZN130..JPP198908-199108

SILVER.M,27L

main90112-08072-13iLN130,VZN130..JPP198908-199108

D.GRAY.M,28L

52111EBAR, FRONT BUMPER

main52101-35060iLN85,90,YN85,90..JPP199108

NO PAINT REQ.

main52101-35070iLN85,90,YN90..JPP..(DCB,XTR)199108

PLATED

main52101-35080iLN10#,110,RN106,110,YN106,110..JPP199108

NO PAINT REQ.

sub52101-35922

main52101-35090iLN10#,110,RN106,YN106,110..JPP199108-199408

PLATED

main52101-35100iLN105,110,YN110..JPP..LHD..T1..CBU199108-199408

NO PAINT REQ.,FINLAND SPEC

main52101-35100iRN110..JPP199108

NO PAINT REQ.,FINLAND SPEC OR SWEDEN SPEC

main52101-35130iKZN130..JPP..RHD199503-199508

NO PAINT REQ.,SPECIAL EMPLOYED VEHICLE

sub52101-35905

main52101-35130iKZN130,LN130,VZN130..JPP..LHD199108-199511

NO PAINT REQ.

sub52101-35905

main52101-35140iVZN130..JPP..LHD199108-199511

PLATED,FINLAND SPEC & W(FRONT WHEEL OPENING EXTENTION)

main52101-35140iVZN130..JPP..LHD..5F199108-199511

PLATED,SWEDEN SPEC & W(FRONT WHEEL OPENING EXTENTION)

main52101-35150iKZN130,VZN130..JPP..RHD199308-199511

NO PAINT REQ.

sub52101-35906

main52101-35150iKZN130,VZN130..JPP..LHD199108-199511

NO PAINT REQ.,W(FRONT WHEEL OPENING EXTENTION)

sub52101-35906

main52101-35160-E0iLN130,VZN130..JPP199108-199308

SILVER M.,27L

sub52101-35921

main52101-35160-E0iKZN130..JPP..RHD199502-199508

SPECIAL EMPLOYED VEHICLE,SILVER M.

sub52101-35921

main52101-35160-F0iKZN130,LN130,VZN130..JPP..LHD199108-199511

BLUE GRAY M.,25T

sub52101-35921

main52101-35160-F0iKZN130..JPP..RHD199502-199508

SPECIAL EMPLOYED VEHICLE,BLUE GRAY M.

sub52101-35921

main52101-35170iKZN130,LN130,VZN130..JPP..LHD199108-199511

PLATED

main52101-35180iKZN130,VZN130..JPP..LHD199108-199511

PLATED,W(FRONT WHEEL OPENING EXTENTION)

main52101-35190-E0iVZN130..JPP199108-199308

W(FRONT WHEEL OPENING EXTENTION),SILVER M.,27L

sub52101-35906

main52101-35190-F0iKZN130..JPP..LHD199308-199511

W(WHEEL ARCH MOULDING),BLUE GRAY M.,25T

sub52101-35906

main52101-35190-F0iKZN130,VZN130..JPP..RHD199308-199511

BLUE GRAY M.,25T

sub52101-35906

main52101-35190-F0iVZN130..JPP..LHD199108-199401

W(FRONT WHEEL OPENING EXTENTION),BLUE GRAY M.,25T

sub52101-35906

main52101-35230iLN85,90,YN85,90..JPP..LHD..T1..CBU199108-199308

NO PAINT REQ.,FINLAND SPEC

main52101-35230iLN85,90..JPP..LHD..T1..CBU199308

NO PAINT REQ.,W(HEADLAMP CLEANER)

main52101-35270iVZN130..JPP..4FC199108-199511

PLATED,FINLAND SPEC

main52101-35270iVZN130..JPP..LHD..5F199108-199311

PLATED,FINLAND SPEC & SWEDEN SPEC

main52101-35270iVZN130..JPP..4FC199311-199511

PLATED,FINLAND SPEC OR SWEDEN SPEC

main52101-89107iLN85,90,YN85,90..JPP198808-199108

NO PAINT REQ.

main52101-89109iLN85,90,YN90..JPP..(DCB,XTR)198808-199108

PLATED

sub52101-35070

main52101-89110iYN85..JPP..LHD198808-199108

NO PAINT REQ.,W(HEADLAMP CLEANER)

main52101-89110iYN85..JPP..LHD198808-199108

NO PAINT REQ.,FINLAND SPEC & W(HEADLAMP CLEANER)

main52101-89113iLN105,110,130,RN106,110,VZN130,YN106,110..JPP198808-199108

NO PAINT REQ.

main52101-89114iLN105,110,130,RN106,110,VZN130,YN106,110..JPP198808-199108

PLATED

main52101-89115iLN105,110,130,RN106,110,VZN130,YN110..JPP..LHD198808-199108

NO PAINT REQ.,W(HEADLAMP CLEANER)

main52101-89117-03iLN130,VZN130..JPP198908-199108

SILVER.M,27L

main52101-89117-13iLN130,VZN130..JPP198908-199108

D.GRAY.M,28L

52112DEXTENSION, FRONT BUMPER, RH

main52102-89112iLN105,110,YN110..JPP..LHD..T1..CBU198808-199108

NO PAINT REQ.

main52102-89112iLN105,110,YN110..JPP..LHD..T1..CBU198808-199108

NO PAINT REQ.,FINLAND SPEC

main52102-89112iLN105,110,YN110..JPP..LHD..T1..CBU198808-199108

NO PAINT REQ.,W(HEADLAMP CLEANER)

main52102-89112iRN110..JPP199008-199108

NO PAINT REQ.,SWEDEN SPEC

main52102-89112iRN110..JPP198808-199008

NO PAINT REQ.,SWEDEN SPEC & W(HEADLAMP CLEANER)

main52102-89113iLN105,110,RN106,110,YN106,110..JPP198808-199108

PLATED

main52102-89114iLN130..JPP199001-199108

NO PAINT REQ.,FINLAND SPEC

main52102-89114iLN130,VZN130..JPP198908-199108

NO PAINT REQ.

main52102-89114iVZN130..JPP..5F199008-199108

NO PAINT REQ.,FINLAND SPEC OR SWEDEN SPEC

main52102-89115iLN130,VZN130..JPP198908-199108

PLATED

main52102-89116-03iLN130,VZN130..JPP198908-199108

SILVER.M,27L

main52102-89116-13iLN130,VZN130..JPP198908-199108

D.GRAY.M,28L

52113DEXTENSION, FRONT BUMPER, LH

main52103-89112iLN105,110,RN106,110,YN106,110..JPP198808-199108

NO PAINT REQ.

main52103-89112iLN105,110,RN106,110,YN106,110..JPP198808-199108

NO PAINT REQ.,FINLAND SPEC

main52103-89112iLN105,110,RN106,110,YN106,110..JPP198808-199108

NO PAINT REQ.,W(HEADLAMP CLEANER)

main52103-89112iRN110..JPP199008-199108

NO PAINT REQ.,SWEDEN SPEC

main52103-89112iRN110..JPP198808-199008

NO PAINT REQ.,SWEDEN SPEC & W(HEADLAMP CLEANER)

main52103-89113iLN105,110,RN106,110,YN106,110..JPP198808-199108

PLATED

main52103-89114iLN130..JPP199001-199108

NO PAINT REQ.,FINLAND SPEC

main52103-89114iVZN130..JPP..5F199008-199108

NO PAINT REQ.,FINLAND SPEC & SWEDEN SPEC

main52103-89114iLN130,VZN130..JPP198908-199108

NO PAINT REQ.

main52103-89115iLN130,VZN130..JPP198908-199108

PLATED

main52103-89116-03iLN130,VZN130..JPP198908-199108

SILVER.M,27L

main52103-89116-13iLN130,VZN130..JPP198908-199108

D.GRAY.M,28L

52145BBRACKET, FRONT BUMPER SIDE MOUNTING

main52145-89102iKZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP198808

52211HCUSHION(FOR FRONT BUMPER ARM)

main52211-89101iKZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP198808

52543SEAL, FRONT BUMPER SIDE, RH

main52543-89101iLN105,110,130,RN106,110,VZN130,YN106,110..JPP198808-199108

52544SEAL, FRONT BUMPER SIDE, LH

main52544-89101iLN105,110,130,RN106,110,VZN130,YN106,110..JPP198808-199108

9011910608

main90119-10608

9015960378

main90159-60378

9017908063

main90179-08063

9017908096

main90179-08096

9017908142

main90179-08142

9018906017

main90189-06017

9018906117

main90189-06117

9054008018

main90540-08018

18 parts on this diagram · 3 diagrams in section
