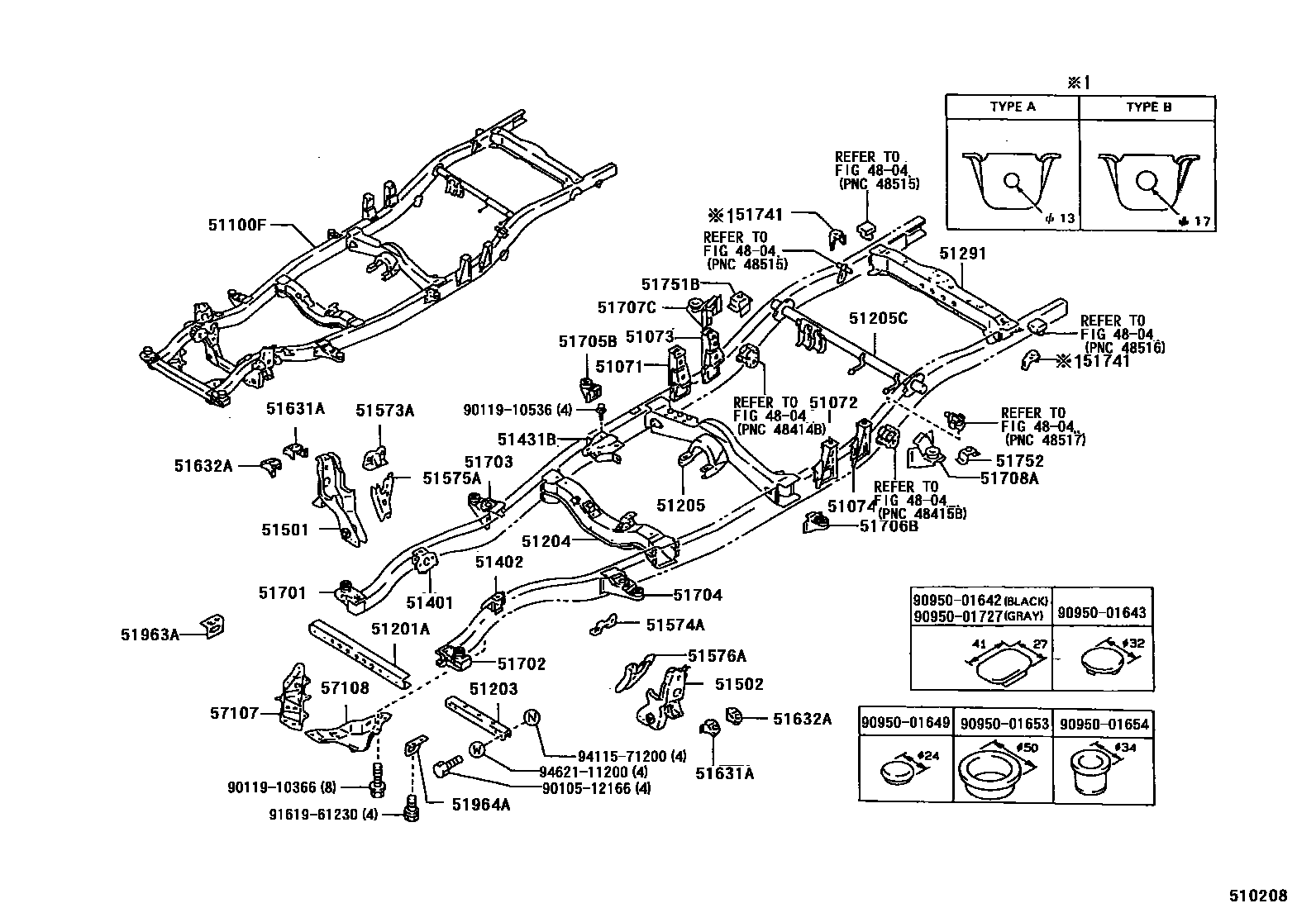

FRAME

0001 1 0002 1 0003 1

4804

51071BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.1 RH

main51071-35040iLN110,90,RN110,YN110,90..JPP198808

main51071-35050iLN105,85,RN106,YN106,85..JPP..T1198808

51072BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.1 LH

main51071-35050iLN105,85,RN106,YN106,85..JPP..T1198808

main51072-35020iLN110,90,RN110,YN110,90..JPP198808

51073BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 RH

main51073-35020iLN105,110,85,90,RN106,110,YN106,110,85,90..JPP..T1198808

51074BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 LH

main51074-35020iLN105,110,85,90,RN106,110,YN106,110,85,90..JPP..T1198808

51100FFRAME SUB-ASSY

main51001-3D680iYN110..JPP198808-199008

main51001-3D730iLN110..JPP198901-199008

main51002-3D360iYN85..JPP..LHD198908-199108

sub51002-3D361

main51002-3D361iYN85..JPP..LHD199108-199408

sub51002-3D371

main51002-3D380iLN85..JPP..T1198908-199108

sub51002-3D381

main51002-3D381iLN85..JPP..LHD..T1199108

main51002-3D420iLN85..JPP..TW1198908-199108

sub51002-3D421

main51002-3D421iLN85..JPP..TW1199108

main51002-3D431iLN85..JPP..TW1199308

SEVERE USAGE PACKAGE

main51002-3D440iYN90..JPP198908-199108

sub51002-3D441

main51002-3D441iYN90..JPP199108-199408

sub51002-3D451

main51002-3D460iLN90..JPP198908-199108

sub51002-3D461

main51002-3D461iLN90..JPP199108

sub51002-3D471

main51002-3D640iRN106..JPP198908-199008

main51002-3D650iVZN130..JPP198908-199008

main51002-3D660iLN130..JPP199001-199008

main51002-3D850iLN105..JPP..LHD..T1199008

W(LSD)

main51002-3D860iLN105..JPP..LHD..TW1199008

W(LSD)

main51003-35300iYN106..JPP198808-199408

main51003-35330iLN105..JPP..RHD..T1198808

main51003-35350iLN105..JPP..LHD..T1198808

main51003-35420iLN105..JPP..LHD..TW1198808

main51003-35430iLN105..JPP..TW1199308-199508

SEVERE USAGE PACKAGE

sub51003-35431

sub38391-35031

sub38392-35011

sub90119-10400

sub91181-81240

sub94621-11200

main51003-35431iLN105..JPP..LHD..TW1199508

SEVERE USAGE PACKAGE

main51003-35440iLN110,RN110..JPP198808-199008

main51003-35540iYN85..JPP..RHD198808-199408

main51003-35560iLN85..JPP..RHD199208

main51003-35620iYN85..JPP..LHD198808-198908

main51003-35640iLN85..JPP..T1198808-198908

main51003-35720iLN85..JPP..TW1198808-198908

main51003-35770iYN90..JPP198808-198908

main51003-35790iLN90..JPP198808-198908

main51003-3D030iVZN130..JPP..4FC199008-199511

sub51002-3D870

main51003-3D110iYN110..JPP199008-199408

main51003-3D120iLN110..JPP199008

main51003-3D230iRN106..JPP..T1199008

main51003-3D240iVZN130..JPP..5F199008-199511

sub51002-3D880

main51003-3D250iLN130..JPP199008-199511

main51003-3D360iRN110..JPP199008

main51003-3D470iRN106..JPP..TW1199108

main51003-3D480iLN108..JPP199108

main51003-3D490iLN108..JPP199108

W(LSD)

main51003-3D650iKZN130..JPP199308-199511

sub51003-3D610

main51003-3D770iLN105..JPP..RHD..TW1199508

51201ACROSSMEMBER SUB-ASSY, FRAME, FRONT

main51201-35160iLN85,YN85,90..JPP198808-199408

sub51201-35170

main51201-35170iLN90..JPP199208-199408

main51201-35170iLN85..JPP..TW1199308-199401

SEVERE USAGE PACKAGE

main51201-35180iLN105,110,130,RN106,110,VZN130,YN106,110..JPP198808-199008

sub51201-35190

main51201-35200iLN105,110,130,RN106,110,VZN130,YN106,110..JPP199008-199108

sub51201-35210

main51201-35230iVZN130,YN106,110..JPP..5F199108-199408

sub51201-35240

main51201-35240iVZN130..JPP..4FC;LN10#,110,130,RN106,110..JPP199108-199308

main51201-35250iKZN130..JPP199308-199511

51203CROSSMEMBER SUB-ASSY, FRAME, NO.2

main51202-35220iLN85,90,YN85,90..JPP198808

main51203-35270iKZN130,LN108,110,130,RN106,110,VZN130,YN110..JPP198808

51204CROSSMEMBER SUB-ASSY, FRAME, NO.3

main51202-35190iVZN130..JPP..5F198908-199511

main51202-35200iVZN130..JPP..4FC199008-199511

main51202-35240iLN105,110,RN106,110,YN106,110..JPP198808

sub51202-35270

main51202-35270iLN108,130..JPP199001

main51202-35310iKZN130..JPP199308-199511

main51203-35240iLN85,YN85..JPP..RHD198808

main51203-35250iLN85,90,YN85,90..JPP..LHD198808

51205CROSSMEMBER SUB-ASSY, FRAME, NO.4

main51204-35360iLN85,YN85..JPP..T1198808

main51204-35370iLN90,YN90..JPP198808

main51204-35380iLN85..JPP..TW1198808

main51204-35400iLN105,YN106..JPP198808

main51204-35430iRN106..JPP198908

main51204-35450iLN110,RN110,YN110..JPP198808

main51204-35510iLN108..JPP199108

51205CCROSSMEMBER SUB-ASSY, FRAME, NO.5

main51205-35131iLN10#,110,RN106,110,YN106,110..JPP198808

main51205-35140iLN85,90,YN85,90..JPP..T1198808

main51205-35170iLN85..JPP..TW1198808

main51205-35210iKZN130,LN130,VZN130..JPP198908-199511

main51205-35220iLN10#..JPP..LHD199008

W(LSD)

51291CROSSMEMBER, FRAME, REAR

main51209-35112iKZN130,LN130,VZN130..JPP198908-199511

main51209-35120iRN106..JPP;LN10#,110,85,RN110,YN110..JPP..(DCB,XTR)198808

main51291-35100iLN105,85,90,YN106,85,90..JPP..T1198808

51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH

main51401-35170iLN85,90..JPP198808

main51401-35190iYN106..JPP198808-199408

main51401-35200iLN105..JPP198808

main51401-35260iYN85,90..JPP198808-199408

51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51401-35190iYN106..JPP198808-199408

main51402-35170iLN85,90..JPP198808

main51402-35190iLN105..JPP198808

main51402-35260iYN85,90..JPP198808-199408

51431BBRACKET, ENGINE REAR MOUNTING

main51431-35060iLN85,90,YN85,90..JPP198808

main51431-35140iKZN130..JPP199308-199404

sub51431-35141

sub90119-10787

main51431-35141iKZN130..JPP199404-199511

51501SUPPORT SUB-ASSY, SUSPENSION ARM, RH

main51501-35030iLN110,130,RN106,110,VZN130,YN110..JPP198808-199008

sub51501-35070

sub51455-35020

sub90119-08766

main51501-35060iLN85,90,YN85,90..JPP198808-199708

main51501-35070iKZN130,LN108,110,130,RN106,110,VZN130,YN110..JPP199008-199708

sub51501-35071

51502SUPPORT SUB-ASSY, SUSPENSION ARM, LH

main51502-35030iLN110,130,RN106,110,VZN130,YN110..JPP198808-199008

sub51502-35070

sub51456-35020

sub90119-08766

main51502-35060iLN85,90,YN85,90..JPP198808-199708

main51502-35070iKZN130,LN108,110,130,RN106,110,VZN130,YN110..JPP199008-199708

sub51502-35071

51573AREINFORCEMENT, SUSPENSION ARM SUPPORT, NO.1 RH

main51573-35010iLN85,90,YN85,90..JPP198808

51574AREINFORCEMENT, SUSPENSION ARM SUPPORT, NO.1 LH

main51573-35010iLN85,90,YN85,90..JPP198808

51575AREINFORCEMENT, SUSPENSION ARM SUPPORT, NO.2 RH

main51575-35040iLN85,90..JPP198808

main51575-35050iYN85,90..JPP198808-199408

51576AREINFORCEMENT, SUSPENSION ARM SUPPORT, NO.2 LH

main51575-35040iLN85,90..JPP198808

main51576-35020iYN85,90..JPP198808-199408

51631STOPPER, FRONT SUSPENSION REBOUND, RH

main51631-35040iLN110,RN106,110,YN110..JPP198808-199108

51631ASTOPPER, FRONT SUSPENSION REBOUND, NO.1

main51631-35040iLN130,VZN130..JPP198908-199108

main51631-35050iLN85,90,YN85,90..JPP198808

51632ASTOPPER, FRONT SUSPENSION REBOUND, NO.2

main51632-35040iLN85,90,YN85,90..JPP198808

51701BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH

main51701-35110iLN85,90,YN85,90..JPP198808

main51701-35120iLN105,YN106..JPP198808

main51701-35130iKZN130,LN108,110,130,RN106,110,VZN130,YN110..JPP198808

51702BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH

main51702-35090iLN85,90,YN85,90..JPP198808

main51702-35100iLN105,YN106..JPP198808

main51702-35110iKZN130,LN108,110,130,RN106,110,VZN130,YN110..JPP198808

51703BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH

main51703-35060iLN105,85,90,YN106,85,90..JPP198808

main51703-35080iKZN130,LN130,VZN130..JPP198908-199511

main51703-35090iLN108,110,RN106,110,YN110..JPP198808

51704BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH

main51704-35080iLN105,85,90,YN106,85,90..JPP198808

main51704-35100iKZN130,LN130,VZN130..JPP198908-199511

main51704-35110iLN108,110,RN106,110,YN110..JPP198808

51705BBRACKET SUB-ASSY, CAB MOUNTING, NO.3 RH

main51705-35090iLN10#,110,85,90,RN106,110,YN106,110,85,90..JPP198808

main51705-35100iKZN130,LN130,VZN130..JPP198908-199511

51706BBRACKET SUB-ASSY, CAB MOUNTING, NO.3 LH

main51705-35090iLN10#,110,85,90,RN106,110,YN106,110,85,90..JPP198808

main51706-35020iKZN130,LN130,VZN130..JPP198908-199511

51707CBRACKET SUB-ASSY, CAB MOUNTING, NO.4 RH

main51707-35030iLN10#,85,RN106..JPP..TW1198808

main51707-35060iKZN130,LN130,VZN130..JPP198908-199511

51708ABRACKET SUB-ASSY, CAB MOUNTING, NO.4 LH

main51708-35030iLN10#,85,RN106..JPP..TW1198808

main51708-35060iKZN130,LN130,VZN130..JPP198908-199511

51741BRACKET, REAR BODY MOUNTING, NO.1

main51715-35020iLN105,110,85,90,RN110,YN106,110,85,90..JPP198808-198904

TYPE A

main51741-35050iLN105,110,85,90,RN110,YN106,110,85,90..JPP198808-198904

TYPE B

main51741-35050iLN10#,110,85,90,RN106,110,YN106,110,85,90..JPP198904

51751BBRACKET, BODY SUPPORT, NO.1 RH

main51751-35070iLN10#,85,RN106..JPP..TW1198808

51752BRACKET, BODY SUPPORT, NO.1 LH

main51752-35040iLN10#,85,RN106..JPP..TW1198808

51963AHOOK, TRANSPORT, FRONT RH

main51963-35070iLN85,90,YN85,90..JPP198808

51964AHOOK, TRANSPORT, FRONT LH

main51964-35050iLN130,85,90,VZN130,YN85,90..JPP198808-199108

57107BRACKET SUB-ASSY, STRUT BAR, RH

main57107-35050iLN85,90,YN85,90..JPP198808

57108BRACKET SUB-ASSY, STRUT BAR, LH

main57108-35050iLN85,90,YN85,90..JPP198808

9010512166

main90105-12166

9011910366

main90119-10366

9011910536

main90119-10536

9095001642

main90950-01642

9095001643

main90950-01643

9095001649

main90950-01649

9095001653

main90950-01653

9095001654

main90950-01654

9095001727

main90950-01727

9161961230

main91619-61230

9411571200

main94115-71200

9462111200

main94621-11200

51 parts on this diagram · 3 diagrams in section
