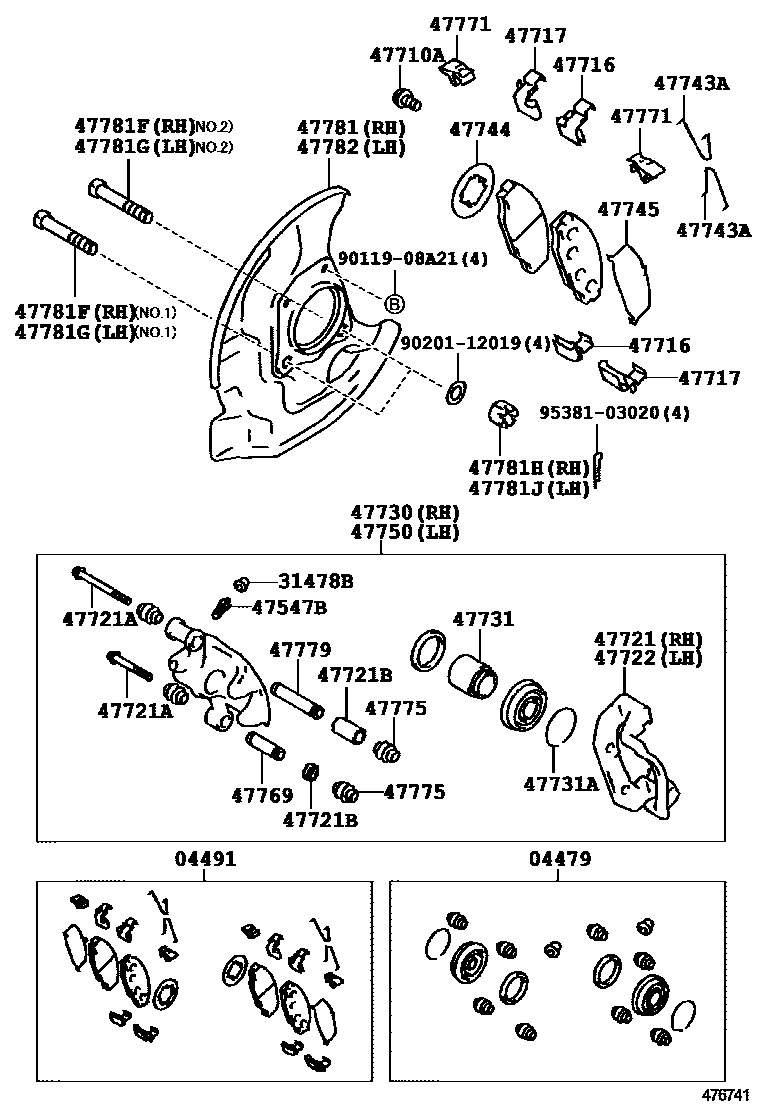

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1 0004 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-35010iLN10#,110,RN106,110,YN106,110..JPP198808-199708

main04479-40010iLN85,90,YN85,90..JPP198808-199708

sub04479-35050

main04479-60020iKZN130,LN130,VZN130..JPP199108-199511

04491PAD KIT, DISC BRAKE, FRONT

main04491-35160iLN10#,110,RN106,110,YN106,110..JPP198808-199505

sub04465-35040

main04491-35200iLN85,90,YN85,90..JPP198808-199505

sub04465-35020

main04491-35240iKZN130,LN130,VZN130..JPP199108-199505

sub04465-35140

main04491-35241iKZN130,LN130,VZN130..JPP199309-199408

sub04465-35140

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iKZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP198808-199708

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12010iLN85,90,YN85,90..JPP198808-199708

main47547-20030iKZN130,LN10#,110,130,RN106,110,VZN130,YN106,110..JPP198808-199708

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90101-12144iKZN130,LN10#,110,130,RN106,110,VZN130,YN106,110..JPP198808-199708

*12-1.25PX38-23

main90119-12058iLN85,90,YN85,90..JPP198808-199708

*12-1.25PX31-20

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-26040iLN85,90,YN85,90..JPP199110-199708

main47716-40010iLN85,90,YN85,90..JPP198808-199110

sub47716-26040

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-26010iLN85,90,YN85,90..JPP199110-199708

main47717-40010iLN85,90,YN85,90..JPP198808-199110

sub47717-26010

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-26050iLN85,90,YN85,90..JPP198808-199708

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90119-10014iLN85,90,YN85,90..JPP198808-199708

*10-1.25PX65.5-30

main90119-10249iLN85,90,YN85,90..JPP198808-199708

*10-1.25PX95.5-30

47721BCOLLAR(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90387-16004iLN85,90,YN85,90..JPP198808-199708

SUB

main90387-16005iLN85,90,YN85,90..JPP198808-199708

MAIN

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-26050iLN85,90,YN85,90..JPP198808-199708

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-26080iLN85,90,YN85,90..JPP198808-199708

main47730-35080iLN105,110,130,RN106,110,VZN130,YN106,110..JPP198808-199708

main47730-35090iKZN130,LN130,VZN130..JPP199108-199511

47731PISTON, FRONT DISC BRAKE

main47731-35010iLN105,110,130,RN106,110,VZN130,YN106,110..JPP198808-199708

main47731-40010iLN85,90,YN85,90..JPP198808-199708

main47731-60010iKZN130,LN130,VZN130..JPP199108-199511

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-48044iLN10#,110,RN106,110,YN106,110..JPP198808-199708

main90522-50003iKZN130,LN130,VZN130..JPP199108-199511

main90522-70001iLN85,90,YN85,90..JPP198808-199708

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-40020iLN85,90,YN85,90..JPP198808-199708

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-26020iLN85,90,YN85,90..JPP198808-199708

main47744-35020iLN10#,110,RN106,110,YN106,110..JPP198808-199708

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47745-35020iLN10#,110,RN106,110,YN106,110..JPP198808-199708

main47745-40020iLN85,90,YN85,90..JPP198808-199708

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-26080iLN85,90,YN85,90..JPP198808-199708

main47750-35080iLN105,110,130,RN106,110,VZN130,YN106,110..JPP198808-199708

main47750-35090iKZN130,LN130,VZN130..JPP199108-199511

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-40010iLN85,90,YN85,90..JPP198808-199708

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-35010iLN85,90,YN85,90..JPP198808-199708

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-40010iLN85,90,YN85,90..JPP199108

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-40010iLN85,90,YN85,90..JPP198808-199708

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-35080iLN85,90,YN85,90..JPP198808

47781FBOLT(FOR DUST COVER TO STEERING KNUCKLE ARM RH)

main90102-12006iLN85,90,YN85,90..JPP198808

NO.1

main90102-12011iLN85,90,YN85,90..JPP198808

NO.2

47781GBOLT(FOR DUST COVER TO STEERING KNUCKLE ARM LH)

main90102-12006iLN85,90,YN85,90..JPP198808

NO.1

main90102-12011iLN85,90,YN85,90..JPP198808

NO.2

47781HNUT(FOR DUST COVER TO STEERING KNUCKLE ARM RH)

main90171-12006iLN85,90,YN85,90..JPP198808

47781JNUT(FOR DUST COVER TO STEERING KNUCKLE ARM LH)

main90171-12006iLN85,90,YN85,90..JPP198808

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-35080iLN85,90,YN85,90..JPP198808

9011908A21

main90119-08A21

9020112019

main90201-12019

9538103020

main95381-03020

31 parts on this diagram · 4 diagrams in section
