FRONT AXLE HOUSING & DIFFERENTIAL

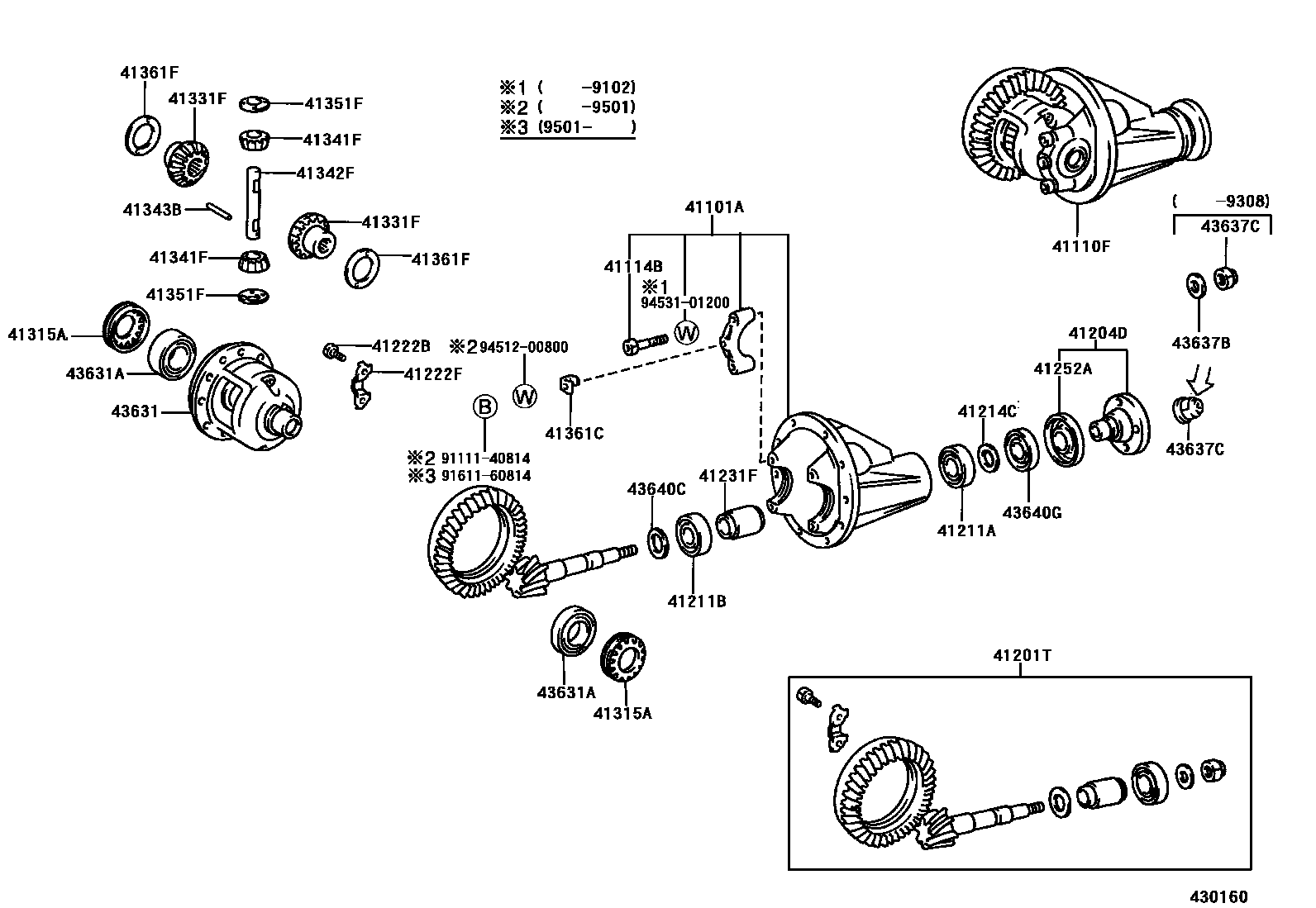

Parts diagram
41101ACARRIER SUB-ASSY, DIFFERENTIAL, FRONT
main41101-35030i198808-198905
sub41101-35031
sub90116-08329
main41101-35031i198905
main41101-35060i198808
41110FCARRIER ASSY, DIFFERENTIAL, FRONT
main41110-35211i198808-198905
*FGR=43:10=4.300
sub41110-35212
sub90116-08329
main41110-35212i198905-199108
*FGR=43:10=4.300
sub41110-35213
main41110-35221i198808-198905
*FGR=41:9=4.555
sub41110-35222
sub90116-08329
main41110-35222i198905-199708
*FGR=41:9=4.555
sub41110-3D260
main41110-35350i198808-199408
*FGR=41:10=4.100
main41110-35360i198808-199108
*FGR=43:10=4.300
main41110-35370i198808-199708
*FGR=41:9=4.555
main41110-35440i198908-199511
*FGR=41:10=4.100
main41110-35450i199001-199511
*FGR=43:10=4.300,W(FULL FLOATING AXLE)
main41110-35460i199001-199511
*FGR=41:9=4.555
main41110-35470i199108-199511
*FGR=39:8=4.875
41114BBOLT, FRONT DIFFERENTIAL BEARING CAP
main90105-12053i198808
41201TFINAL GEAR KIT, DIFFERENTIAL, FRONT
main41201-29526i198808-199108
*FGR=43:10=4.300
sub41201-29796
sub41204-35081
sub41214-26011
main41201-29536i198808-199708
*FGR=41:9=4.556
sub41201-29537
sub41204-35081
sub41214-26011
main41201-39716i198808-199511
*FGR=41:10=4.100
sub41201-80110
main41201-39725i198808-199511
*FGR=43:10=4.300
sub41201-80004
main41201-39735i198808-198908
*FGR=41:9=4.556
sub41201-39736
main41201-39736i198908-199607
*FGR=41:9=4.556
sub41201-80015
main41201-39745i199108-199511
*FGR=39:8=4.875
main41201-80015i199607-199708
*FGR=41:9=4.556
41204DFLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT
main41204-35040i198808-199708
main41204-35050i198808-199708
41211ABEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)
main90366-30022i198808
sub90366-30078
41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)
main90366-35023i198808
main90366-35044i198808
41214CSLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL
main41214-26010i198808
main41214-35020i198808
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
main90101-11353i198808
41222FPLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK
main41222-35020i198808
main41222-35030i198808
41231FSPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING
main41231-22010i198808
main41231-40011i198808
41252ADEFLECTOR, DUST (FOR FRONT DIFFERENTIAL)
main41252-30010i198808
main41252-35010i198808-199303
sub41252-35020
main41252-35020i199303
41315ANUT, FRONT DIFFERENTIAL BEARING ADJUSTING
main41315-35010i198808
41331FGEAR, FRONT DIFFERENTIAL SIDE
main41331-14040i198808
sub41331-14041
main41331-35011i198808
41341FPINION, FRONT DIFFERENTIAL
main41341-30020i198808
sub41341-30050
main41341-35020i198808
41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1
main41342-22020i198808
sub41342-22021
main41342-39610i198808
41343BPIN, FRONT DIFFERENTIAL PINION SHAFT
main90250-06085i198808
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
main41351-30052i198808
main41351-30060i198808
41361CLOCK, FRONT DIFFERENTIAL BEARING ADJUSTING NUT
main41316-30010i198808-199305
main41316-35010i199305
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
main41361-30040i198808
T=1.0
main41361-30050i198808
T=1.1
main41361-30060i198808
T=1.2
main41361-30070i198808
T=1.3
main41361-30080i198808
T=1.4
main41361-30090i198808
T=1.5
main41361-30100i198808
T=1.6
main41361-40021i198808
T=1.6
main41362-40021i198808
T=1.7
main41363-40021i198808
T=1.8
43631CASE, FRONT AXLE DIFFERENTIAL
main41311-22060i198808
main41311-35060i198908-199511
sub41311-34020
main41311-40020i198808
sub41311-40021
sub90105-11063
43631ABEARING, FRONT AXLE DIFFERENTIAL
main90364-33009i198908-199511
INNER
main90368-45066i198808-198904
main90368-50006i199108
main90368-50006i198808-199511
OUTER
43637BWASHER, PLATE (FOR FRONT AXLE DRIVE PINION)
main90201-18485i198808-199308
main90201-20005i198808-199308
43637CNUT, CASTLE (FOR FRONT AXLE DRIVE PINION)
main90179-18001i198808-199308
main90179-18020i199308
main90179-20001i198808-199308
main90179-20018i199308
43640CSPACER OR WASHER, FRONT AXLE DRIVE PINION THRUST
main90201-35396i198808
T=2.36,MARK 05
main90201-35397i198808
T=2.39,MARK 06
main90201-35398i198808
T=2.42,MARK 07
main90201-35399i198808
T=2.43,MARK 08
main90201-35400i198808
T=2.48,MARK 09
main90201-35401i198808
T=2.51,MARK 10
main90201-35402i198808
T=2.54,MARK 11
main90201-35403i198808
T=2.57,MARK 12
main90201-35404i198808
T=2.60,MARK 13
main90201-35434i198808-199309
T=2.24,MARK 01
sub90201-35515
main90201-35435i198808-199309
T=2.27,MARK 02
sub90201-35516
main90201-35436i198808-199309
T=2.30,MARK 03
sub90201-35517
main90201-35437i198808-199309
T=2.33,MARK 04
sub90201-35518
main90201-35438i198808
T=2.63,MARK 14
main90201-35439i198808
T=2.66,MARK 15
main90201-35440i198808
T=2.69,MARK 16
main90201-35441i198808
T=2.72,MARK 17
main90201-35497i198808
OD=47,T=1.70
main90201-35498i198808
OD=47,T=1.73
main90201-35499i198808
OD=47,T=1.76
main90201-35500i198808
OD=47,T=1.79
main90201-35501i198808
OD=47,T=1.82
main90201-35502i198808
OD=47,T=1.85
main90201-35503i198808
OD=47,T=1.88
main90201-35504i198808
OD=47,T=1.91
main90201-35505i198808
OD=47,T=1.94
main90201-35506i198808
OD=47,T=1.97
main90201-35507i198808
OD=47,T=2.00
main90201-35508i198808
OD=47,T=2.03
main90201-35509i198808
OD=47,T=2.06
main90201-35510i198808
OD=47,T=2.09
main90201-35511i198808
OD=47,T=2.12
main90201-35512i198808
OD=47,T=2.15
main90201-35513i198808
OD=47,T=2.18
main90201-35514i198808
OD=47,T=2.21
main90201-35515i198808-199309
OD=47,T=2.24,MARK 01
main90201-35516i198808-199309
OD=47,T=2.27,MARK 02
main90201-35517i198808-199309
OD=47,T=2.30,MARK 03
main90201-35518i198808-199309
OD=47,T=2.33,MARK 04
43640GSEAL, TYPE T OIL (FOR FRONT AXLE DIFFERENTIAL CARRIER)
main90311-38035i198808-199601
sub90311-38047
main90311-38047i199601
main90311-38134i198808-199601
sub90311-38047
9111140814
main91111-40814
9161160814
main91611-60814
9451200800
main94512-00800
9453101200
main94531-01200

30 parts on this diagram · 11 diagrams in section
