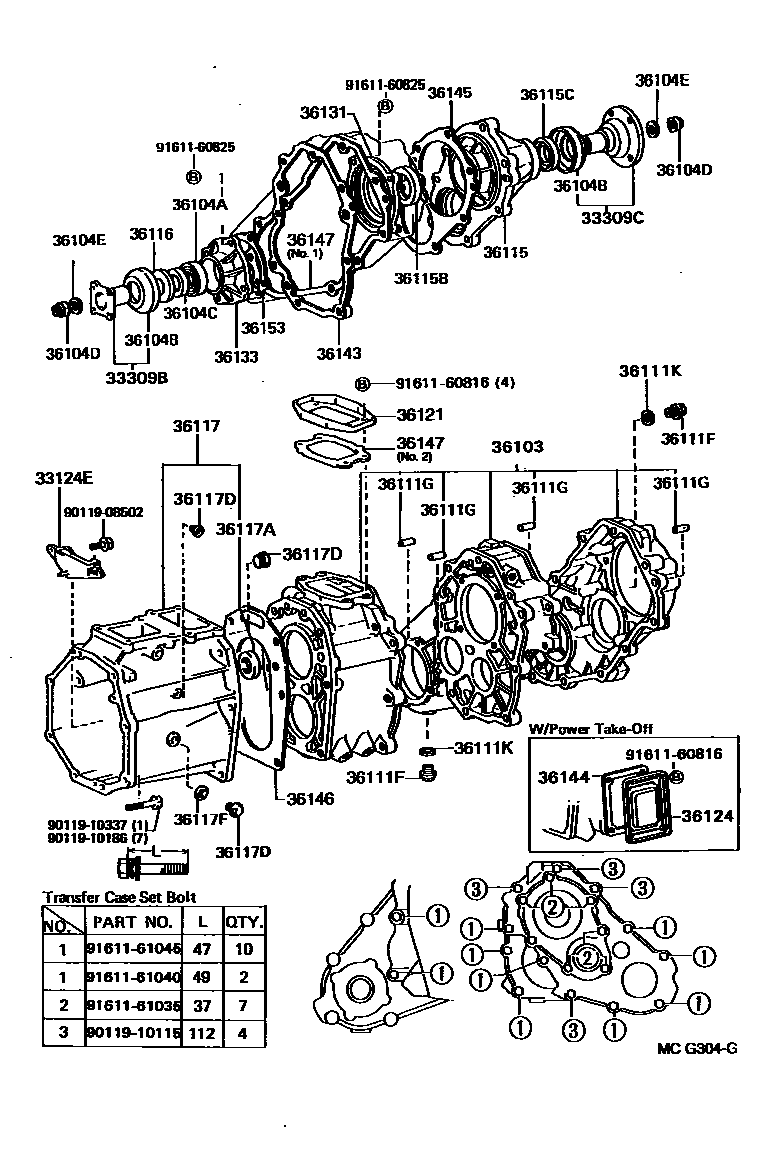

TRANSFER CASE & EXTENSION HOUSING

0001 1 0002 1 0003 1 0004 1 0005 1

33124EPIPE, OIL RECEIVER(FOR TRANSFER)

main33106-35010iRN106,110..JPP¥840198808-199110

sub33106-35040¥850

main33106-35020iRN106,110..JPP¥740199110-199708

main33124-35020iLN10#,110,YN106,110..JPP¥740198808-199708

main33124-35100iKZN130,LN130,VZN130..JPP..5F¥410199405-199511

main33124-36010iKZN130,LN130,VZN130..JPP..5F¥200198908-199405

33309BFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION

main33309-35030iLN10#,110,RN106,110,YN106,110..JPP¥16,100198808

main33309-35061iKZN130,LN130,VZN130..JPP..5F¥8,900198908-199511

sub33309-35063¥8,800

sub90311-41017¥400

33309CFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION

main33309-35040iLN10#,110,RN106,110,YN106,110..JPP¥16,600198808

main33309-35080iKZN130,LN130,VZN130..JPP..5F¥8,100198908-199511

sub33309-35100¥7,700

36103CASE SUB-ASSY, TRANSFER

main36103-35014iLN10#,110,RN106,110,YN106,110..JPP¥82,000198808

main36103-35024iLN108..JPP¥72,800199108

W(PTO)

main36103-35024iLN108..JPP¥72,800198808-199108

W(PTO TAKE OUT MOUTH)

36104ASEAL, TYPE T, OIL (FOR TRANSFER OUTPUT SHAFT)

main90311-38016iLN10#,110,RN106,110,YN106,110..JPP¥290198808

36104BDEFLECTOR, DUST (FOR TRANSFER OUTPUT SHAFT)

main33325-35020iLN10#,110,RN106,110,YN106,110..JPP¥1,020198808

36104CSEAL, DUST (FOR TRANSFER OUTPUT SHAFT)

main90303-38010iLN10#,110,RN106,110,YN106,110..JPP¥140198808

36104DNUT (FOR TRANSFER OUTPUT SHAFT)

main90179-20001iLN10#,110,RN106,110,YN106,110..JPP¥380198808

main90179-22016iKZN130,LN130,VZN130..JPP..5F¥220198908-199511

36104EWASHER, PLATE (FOR TRANSFER OUTPUT SHAFT)

main90201-20005iLN10#,110,RN106,110,YN106,110..JPP¥170198808

36111FPLUG (FOR TRANSFER CASE)

main90341-18006iLN130,VZN130..JPP..5F¥180198808-199511

FILLER

main90341-18057iKZN130,LN10#,110,130,RN106,110,VZN130,YN106,110..JPP..5F¥350198808

DRAIN

36111GPIN, STRAIGHT (FOR TRANSFER CASE)

main90250-10214iKZN130,LN130,VZN130..JPP..5F¥120198908-199511

L=14,OD=10

main90250-10232iLN10#,110,RN106,110,YN106,110..JPP¥100198808

L=15,OD=8

36111KGASKET (FOR TRANSFER CASE)

main90430-18008iLN10#,110,RN106,110,YN106,110..JPP¥110198808

36115HOUSING, TRANSFER EXTENSION

main36105-35020iKZN130,LN130,VZN130..JPP..5F¥7,800198908-199511

sub36105-35040¥6,000

main36115-35010iLN10#,110,RN106,110,YN106,110..JPP¥22,900198808

36115BSEAL, TYPE V OIL (FOR TRANSFER EXTENSION HOUSING)

main90312-48001iLN10#,110,RN106,110,YN106,110..JPP¥210198808

36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)

main90311-38140iLN10#,110,RN106,110,YN106,110..JPP¥290198808

main90311-41005iKZN130,LN130,VZN130..JPP..5F¥400198908-199406

sub90311-41007¥390

main90311-41007iKZN130,LN130,VZN130..JPP..5F¥390199406-199511

sub90311-41020¥390

36116RETAINER, TRANSFER EXTENSION HOUSING DUST SEAL

main33145-30010iLN10#,110,RN106,110,YN106,110..JPP¥190198808

36117ADAPTER, TRANSFER

main36107-35071iVZN130..JPP..5F¥53,000198908-199011

sub36107-35072¥52,400

sub90930-03075¥430

main36107-35072iVZN130..JPP..5F¥52,400199011-199208

sub36107-35150¥55,800

sub33521-35240¥3,320

main36107-35080iRN106,110..JPP¥67,900198808-199110

main36107-35091iLN105,110,YN106,110..JPP¥60,600198808-199011

sub36107-35092¥60,500

main36107-35092iLN10#,110,YN106,110..JPP¥60,500199011-199708

main36107-35111iKZN130,LN130..JPP¥51,900199008-199405

main36107-35130iLN130..JPP¥52,100199001-199008

sub36107-35111¥51,900

main36107-35140iRN106,110..JPP¥62,400199110-199708

main36107-35150iVZN130..JPP..5F¥55,800199208-199405

main36107-35180iVZN130..JPP..5F¥50,000199405-199511

main36107-35190iKZN130,LN130..JPP¥52,500199405-199511

36117ASEAL, OIL(FOR TRANSFER ADAPTER)

main90311-32009iLN10#,110,RN106,110,YN106,110..JPP¥390198808-199708

main90311-40007iKZN130,LN130,VZN130..JPP..5F¥400198908-199511

36117DPLUG(FOR TRANSFER ADAPTER)

main90341-18006iLN10#,110,YN106,110..JPP¥180198808-199708

FILLER

main90341-30003iLN10#,110,YN106,110..JPP¥410198808-199708

DRAIN

main90930-03075iVZN130..JPP..5F¥430199506-199511

main90930-03114iVZN130..JPP..5F¥350198908-199506

36117FGASKET(FOR TRANSFER ADAPTER PLUG)

main90430-18008iLN10#,110,YN106,110..JPP¥110198808-199708

36121COVER, TRANSFER CASE, NO.1

main36102-35020iKZN130,LN130..JPP¥3,400199001-199511

sub36102-35040¥2,130

main36121-35010iLN10#,110,RN106,110,YN106,110..JPP¥5,300198808

36124COVER, TRANSFER POWER TAKE-OFF

main33161-25010iLN10#,110,YN110..JPP..LHD¥630198808-199108

36131RETAINER, TRANSFER OUTPUT SHAFT FRONT BEARING

main36131-35010iLN10#,110,RN106,110,YN106,110..JPP¥1,680198808

36133RETAINER, TRANSFER FRONT DRIVE GEAR BEARING

main36133-35010iLN10#,110,RN106,110,YN106,110..JPP¥1,970198808

36143GASKET, TRANSFER CASE, FRONT

main36143-35010iLN10#,110,RN106,110,YN106,110..JPP¥360198808

main36143-35030iVZN130..JPP..5F¥300198908-199511

36144GASKET, TRANSFER POWER TAKE-OFF COVER

main33162-25010iLN105,110,RN106,110,YN110..JPP..LHD¥320198808-199108

36145GASKET, TRANSFER EXTENSION HOUSING

main36145-35010iLN10#,110,RN106,110,YN106,110..JPP¥300198808

36146GASKET, TRANSFER REDUCTION CASE

main36146-35021iLN10#,110,RN106,110,YN106,110..JPP¥250198808

36147GASKET, TRANSFER CASE

main36141-35010iLN10#,110,RN106,110,YN106,110..JPP¥430198808

NO.1

main36147-35010iLN10#,110,RN106,110,YN106,110..JPP¥380198808

NO.2

36153GASKET, FRONT DRIVE GEAR BEARING RETAINER

main36153-35010iLN10#,110,RN106,110,YN106,110..JPP¥230198808

9011908502

main90119-08502¥90

9011910115

main90119-10115¥180

9011910186

main90119-10186¥140

9011910337

main90119-10337¥240

9161160816

main91611-60816¥230

9161160825

main91611-60825¥140

9161161035

main91611-61035¥130

9161161040

main91611-61040¥130

9161161045

main91611-61045¥180
