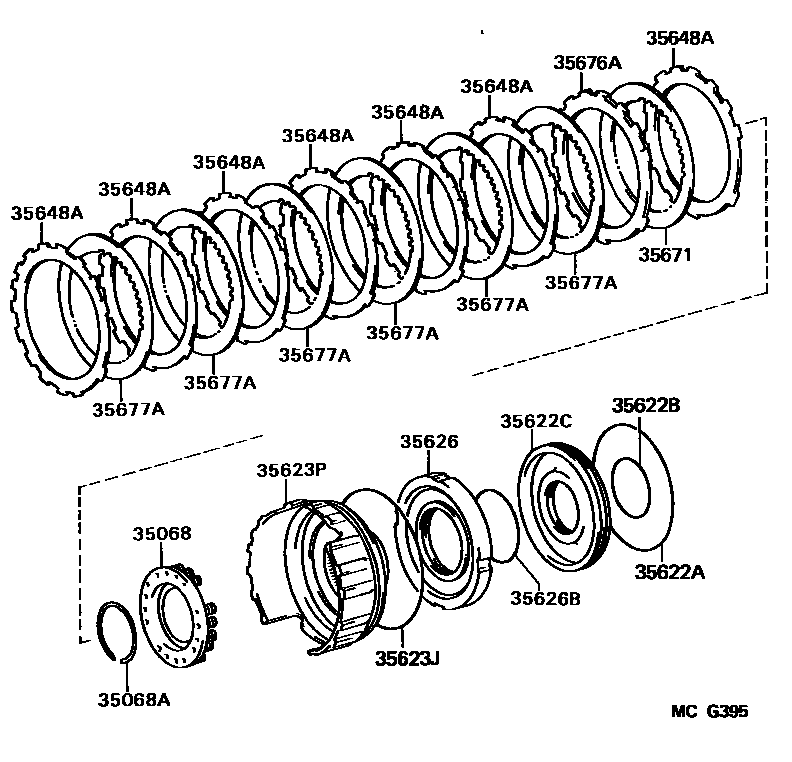

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-35010iVZN130..JPP..4FC199008-199511

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-52262iVZN130..JPP..4FC199008-199511

35622ARING (FOR BRAKE PISTON OUTER)

main90301-99193iVZN130..JPP..4FC199008-199511

35622BRING (FOR BRAKE PISTON INNER)

main90301-57188iVZN130..JPP..4FC199008-199511

35622CPISTON, 1ST & REVERSE BRAKE, NO.1

main35622-30010iVZN130..JPP..4FC199008-199511

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-99192iVZN130..JPP..4FC199008-199511

35623PPISTON, 1ST & REVERSE BRAKE, NO.2

main35623-35011iVZN130..JPP..4FC199008-199511

35626SLEEVE, BRAKE REACTION

main35626-30020iVZN130..JPP..4FC199008-199511

35626BRING (FOR BRAKE REACTION SLEEVE INNER)

main90301-68191iVZN130..JPP..4FC199008-199511

sub90301-67005

35648APLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35648-30031iVZN130..JPP..4FC199008-199511

35671PLATE, BRAKE CUSHION

main35671-35010iVZN130..JPP..4FC199008-199511

35676AFLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)

main35676-50010iVZN130..JPP..4FC199008-199511

T=5.0

main35676-50020iVZN130..JPP..4FC199008-199511

T=4.8

main35676-50030iVZN130..JPP..4FC199008-199511

T=4.6

main35676-50040iVZN130..JPP..4FC199008-199511

T=4.4

main35676-50050iVZN130..JPP..4FC199008-199511

T=4.2

main35676-50060iVZN130..JPP..4FC199008-199511

T=4.0

35677ADISC, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35677-30110iVZN130..JPP..4FC199008-199511

sub35677-30130

13 parts on this diagram · 1 diagram in section
