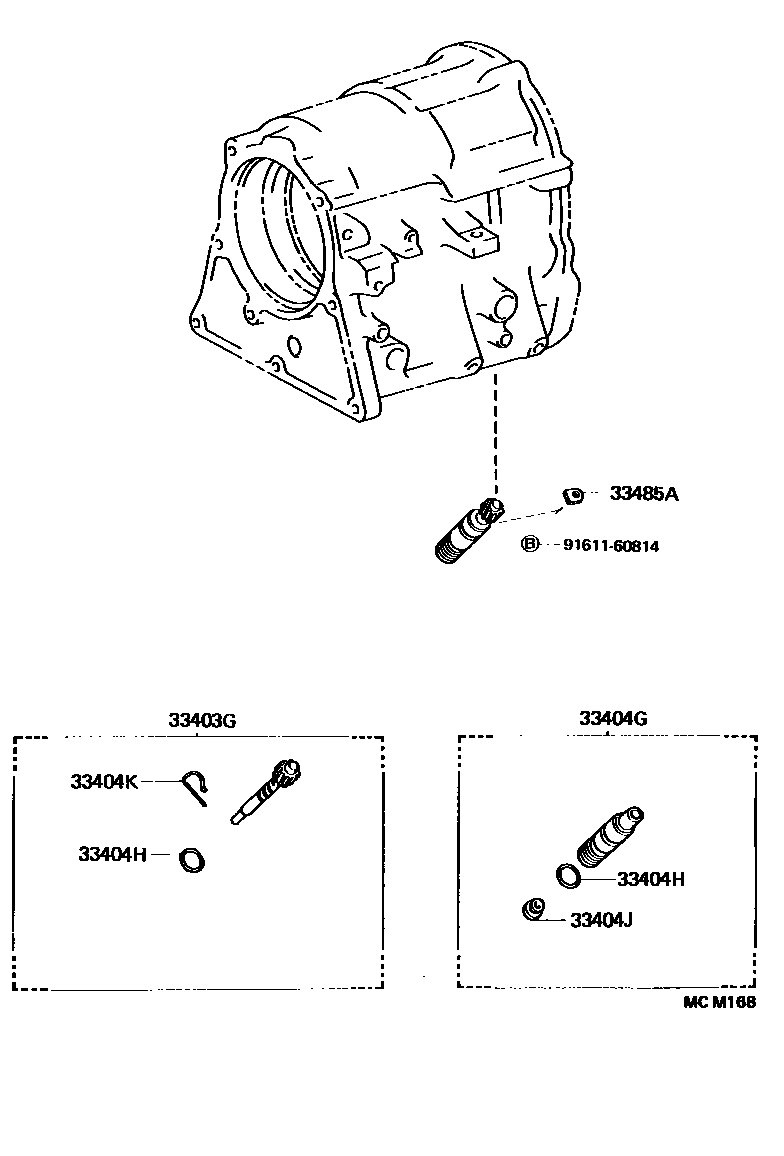

SPEEDOMETER DRIVEN GEAR (ATM)

0001 1 0003 1

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-39045iVZN130..JPP..4FC199108-199511

N=17,MARK 17:4

main33403-39315iVZN130..JPP..4FC199108-199408

N=20,MARK 20:6

main33482-39045iVZN130..JPP..4FC199008-199511

N=20,MARK 20:6

33404GSLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)

main33404-35010iVZN130..JPP..4FC199008-199511

33404HRING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90301-18018iVZN130..JPP..4FC199008-199511

33404JSEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iVZN130..JPP..4FC199008-199511

33404KCLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iVZN130..JPP..4FC199008-199511

33485APLATE, SPEEDOMETER SLEEVE LOCK (ATM)

main33485-30020iVZN130..JPP..4FC199008-199511

9161160814

main91611-60814

7 parts on this diagram · 2 diagrams in section
