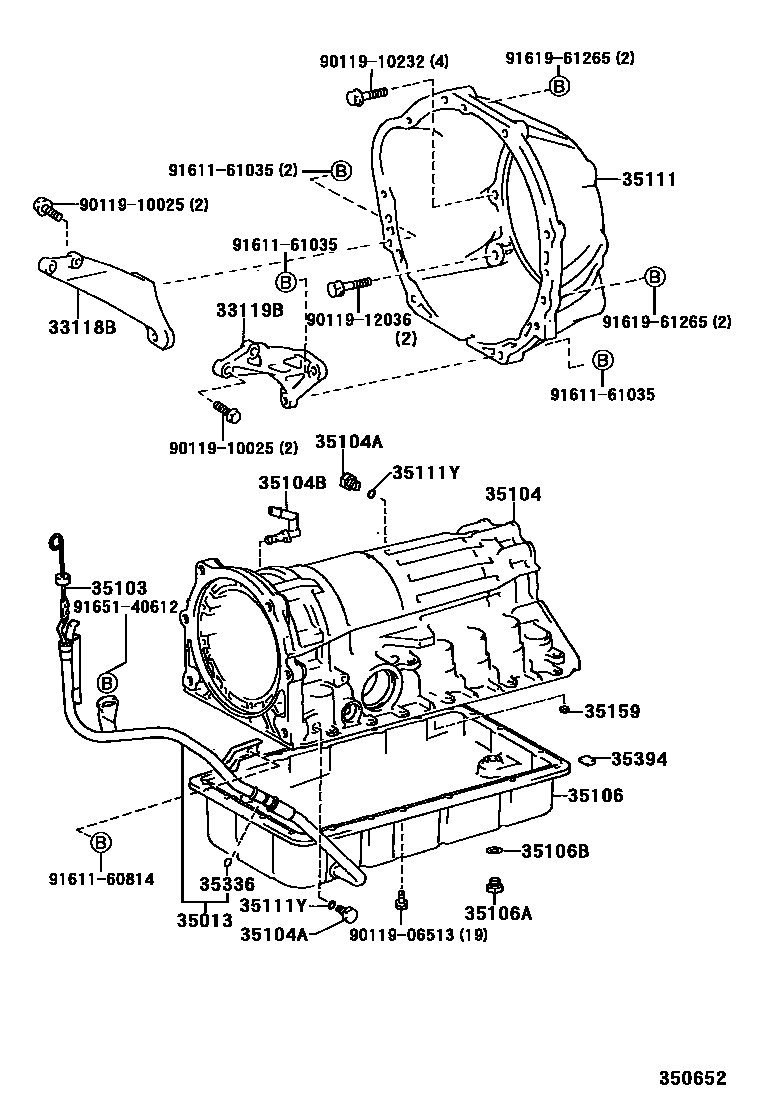

TRANSMISSION CASE & OIL PAN (ATM)

33118BPLATE, STIFFENER, RH(ATM)

main33118-35040iVZN130..JPP..4FC199008-199511

33119BPLATE, STIFFENER, LH(ATM)

main33119-35030iVZN130..JPP..4FC199008-199511

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-35200iVZN130..JPP..4FC199008-199511

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-35190iVZN130..JPP..4FC199008-199511

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-35011iVZN130..JPP..4FC199008-199511

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001iVZN130..JPP..4FC199008-199511

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03116iVZN130..JPP..4FC199008-199511

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-35022iVZN130..JPP..4FC199008-199511

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10006iVZN130..JPP..4FC199008-199511

sub90341-10011

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iVZN130..JPP..4FC199008-199511

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-35051iVZN130..JPP..4FC199008-199511

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196iVZN130..JPP..4FC199008-199511

35159GASKET, BRAKE DRUM

main35159-30010iVZN130..JPP..4FC199008-199511

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09011iVZN130..JPP..4FC199008-199511

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011iVZN130..JPP..4FC199008-199511

9011906513

main90119-06513

9011910025

main90119-10025

9011910232

main90119-10232

9011912036

main90119-12036

9161160814

main91611-60814

9161161035

main91611-61035

9161961265

main91619-61265

9165140612

main91651-40612

23 parts on this diagram · 1 diagram in section
