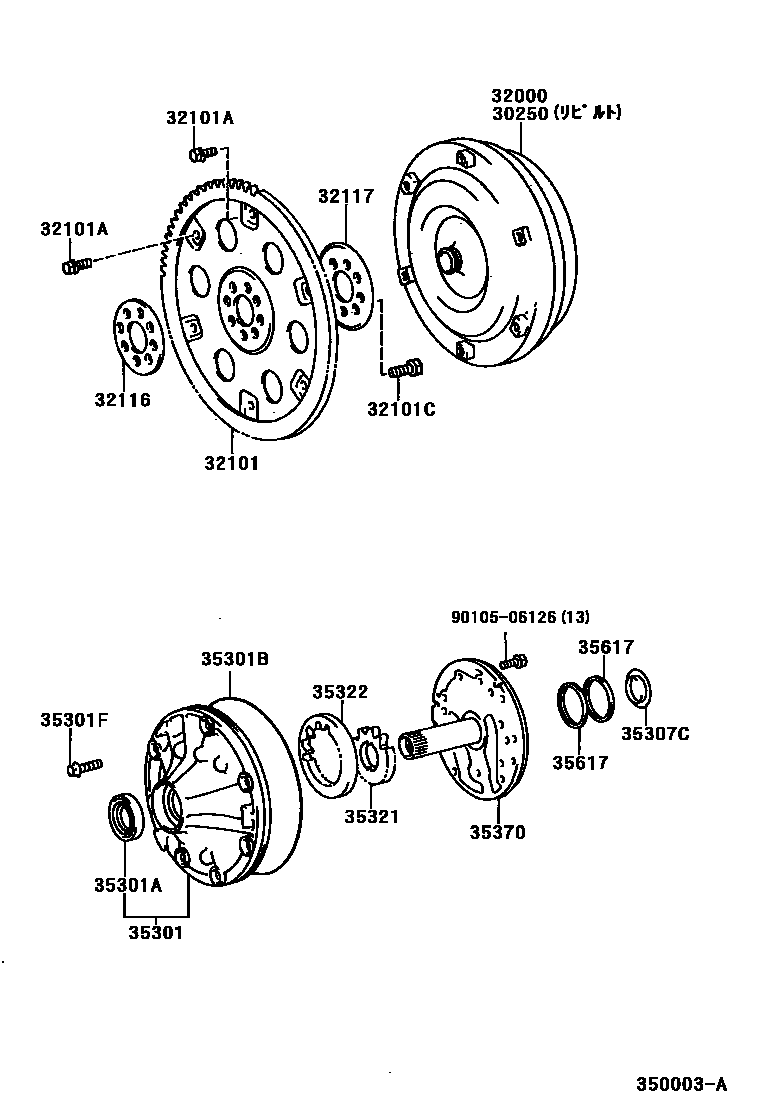

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)
30250CONVERTER ASSY, TORQUE, REBUILT
32000CONVERTER ASSY, TORQUE
32101GEAR SUB-ASSY, DRIVE PLATE & RING
32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
*9-1.25PX12.8-8.8
*9-1.25PX12.8-9
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
32116SPACER, DRIVE PLATE, FRONT
32117SPACER, DRIVE PLATE, REAR
35301BODY SUB-ASSY, FRONT OIL PUMP
35301ASEAL, OIL (FOR FRONT OIL PUMP)
sub90311-38020
35301BRING, O (FOR FRONT OIL PUMP BODY)
35301FBOLT (FOR FRONT OIL PUMP SETTING)
*8-1.25PX35-35
35307CRACE, THRUST BEARING (FOR STATOR SHAFT)
35321GEAR, FRONT OIL PUMP DRIVE
T=10.690-10.699
T=10.700-10.709
T=10.710-10.720
T=10.721-10.730
T=10.731-10.740
35322GEAR, FRONT OIL PUMP DRIVEN
35370SHAFT ASSY, STATOR
35617RING, CLUTCH DRUM OIL SEAL
9010506126
main90105-06126
17 parts on this diagram · 1 diagram in section
