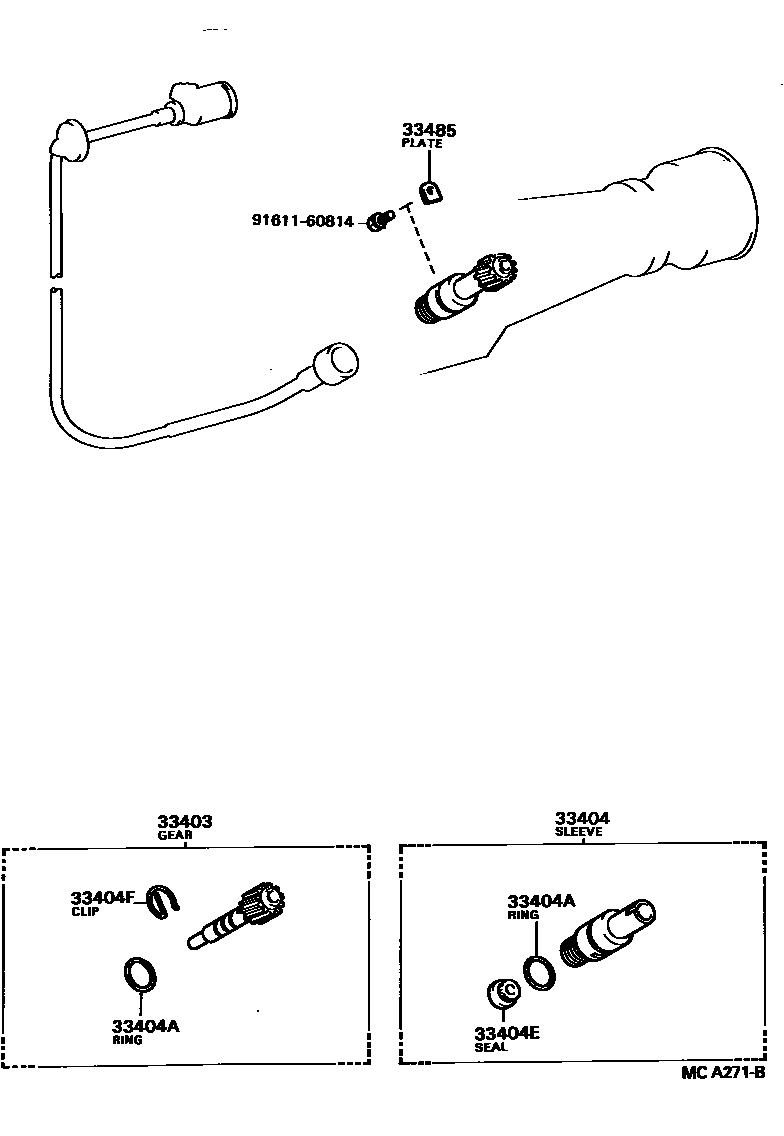

SPEEDOMETER DRIVEN GEAR (MTM)

0001 1 0003 1

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-19255iVZN130..JPP198908-199001

N=32,MARK 32:11

main33403-29135iLN130..JPP199001-199511

N=33,MARK 33:10

main33403-29145iVZN130..JPP..5F199001-199511

N=31,MARK 31:10

main33403-29325iLN130..JPP199108-199408

N=33,MARK 33:10

main33403-39305iLN10#,110,85,90,YN106,110..JPP199108-199408

N=19,MARK 19:6

main33403-39325iYN85,90..JPP199108-199408

N=21,MARK 21:6

main33403-39355iVZN130..JPP..5F199108-199408

N=31,MARK 31:10

main33403-39395iRN106,110..JPP199108-199408

N=17,MARK 17:6

main33403-39415iVZN130..JPP..5F199108-199308

N=33,MARK 33:11,W(ALUMINUM WHEEL)

main33403-39425iKZN130..JPP199308-199511

N=32,MARK 32:11

main33482-29035iYN85..JPP198808-198909

N=22,MARK 22:6

main33482-39025iLN90,YN106,110..JPP198808-199108

N=19,MARK 19:6

main33482-39035iYN85,90..JPP198808-199108

N=21,MARK 21:6

main33482-39045iLN85..JPP198808-198909

N=20,MARK 20:6

main33482-39065iRN106,110..JPP198808-199108

N=17

main33482-39135iLN105,110..JPP198808-199108

N=18,MARK 18:6

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-22010iLN130,VZN130..JPP..5F198908-199511

main33404-35010iLN105,110,85,90,RN106,110,YN106,110,85,90..JPP198808-199108

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90301-18018iLN10#,110,85,90,RN106,110..JPP198808-199108

main96711-24030iLN130,VZN130..JPP..5F198908-199511

33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iLN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP..5F198808-199108

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iKZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP..5F198808

33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-30020iLN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP..5F198808-199108

9161160814

main91611-60814

7 parts on this diagram · 2 diagrams in section
