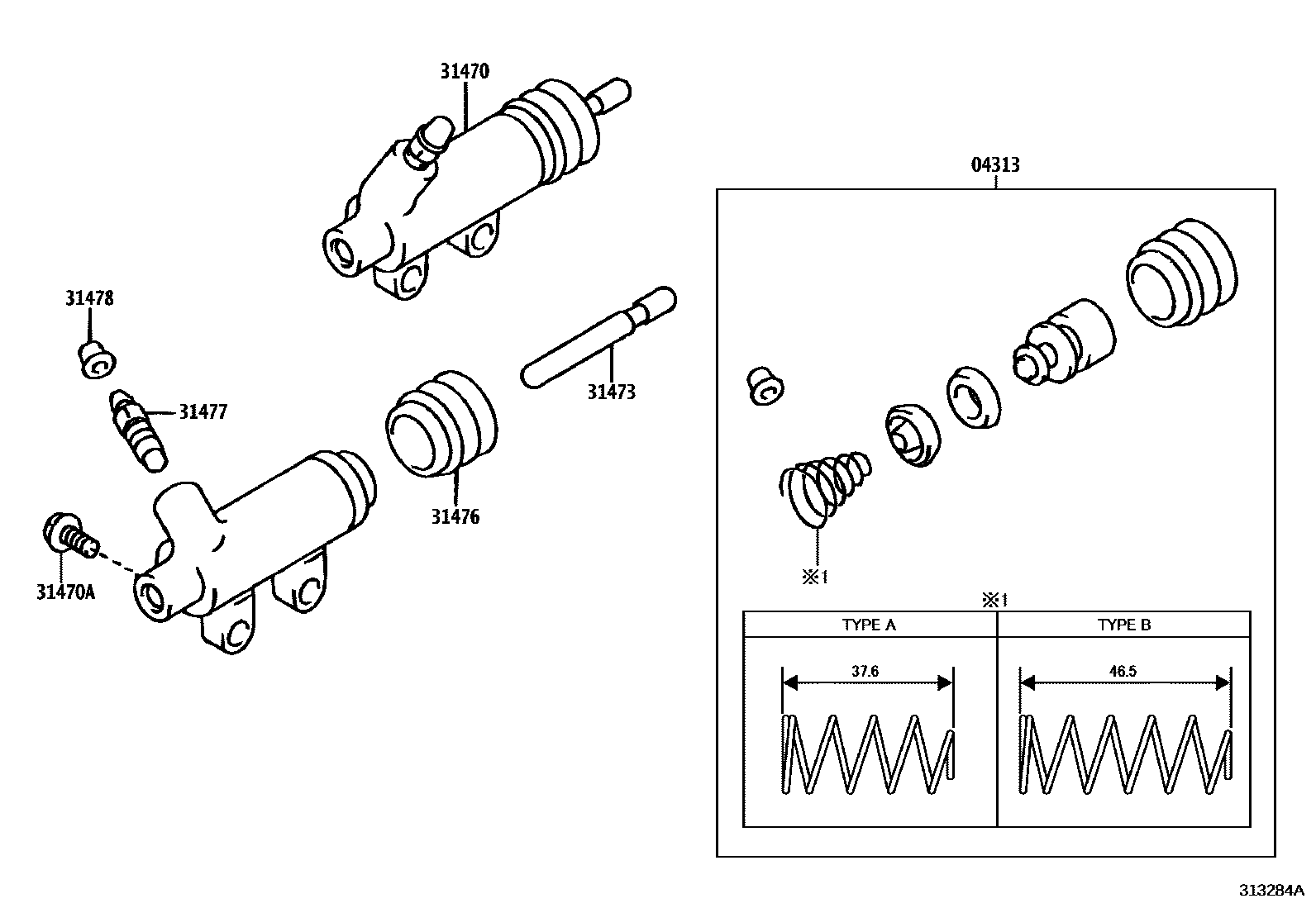

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-12030iLN105,110,85,90,RN106,110,VZN130,YN106,110,85,90..JPP198808-199405

main04313-17010iVZN130..JPP..5F198909-199708

main04313-18010iKZN130..JPP199311-199408

TYPE B:REFER ILLUST.

sub04313-18020

main04313-18020iKZN130..JPP199408-199511

TYPE B:REFER ILLUST.

main04313-22030iRN106,110,YN106,110,85,90..JPP199110-199708

main04313-60120iKZN130..JPP199308-199311

TYPE A:REFER ILLUST.

sub04313-10010

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-22150iRN106,110,YN106,110,85,90..JPP199110-199708

main31470-30221iLN10#,110,85,90..JPP198808-199405

sub31470-30222

main31470-30222iLN10#,110,85,90..JPP199405-199708

main31470-30260iRN106,110,YN106,110,85,90..JPP198808-199110

main31470-35071iVZN130..JPP198908-198909

sub31470-35100

main31470-35090iLN130..JPP199001-199304

sub31470-35091

main31470-35091iLN130..JPP199304-199511

main31470-35100iVZN130..JPP..5F198909-199511

main31470-60200iKZN130..JPP199308-199408

sub31470-60201

main31470-60201iKZN130..JPP199408-199511

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60820iVZN130..JPP..5F198908-199501

sub91611-G0820

main91611-60825iKZN130,LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP198808-199708

*8-1.25PX25-25

sub91611-B0825

main91651-40825iLN130..JPP199001-199511

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-22010iRN106..JPP..T1;LN10#,110,130,85,90,RN110,YN106,110,85,90..JPP198808-199405

main31473-35050iRN106,110,VZN130,YN106,110,85,90..JPP..5F198909-199708

main31473-60140iKZN130..JPP199308-199311

sub31473-60141

main31473-60141iKZN130..JPP199311-199511

sub31473-60142

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iKZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP..5F198808-199708

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iKZN130,LN10#,110,85,90,RN106,110,VZN130,YN106,110,85,90..JPP..5F198808-199708

main47547-60020iLN130..JPP199001-199511

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iKZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP..5F198808-199708

7 parts on this diagram · 1 diagram in section
