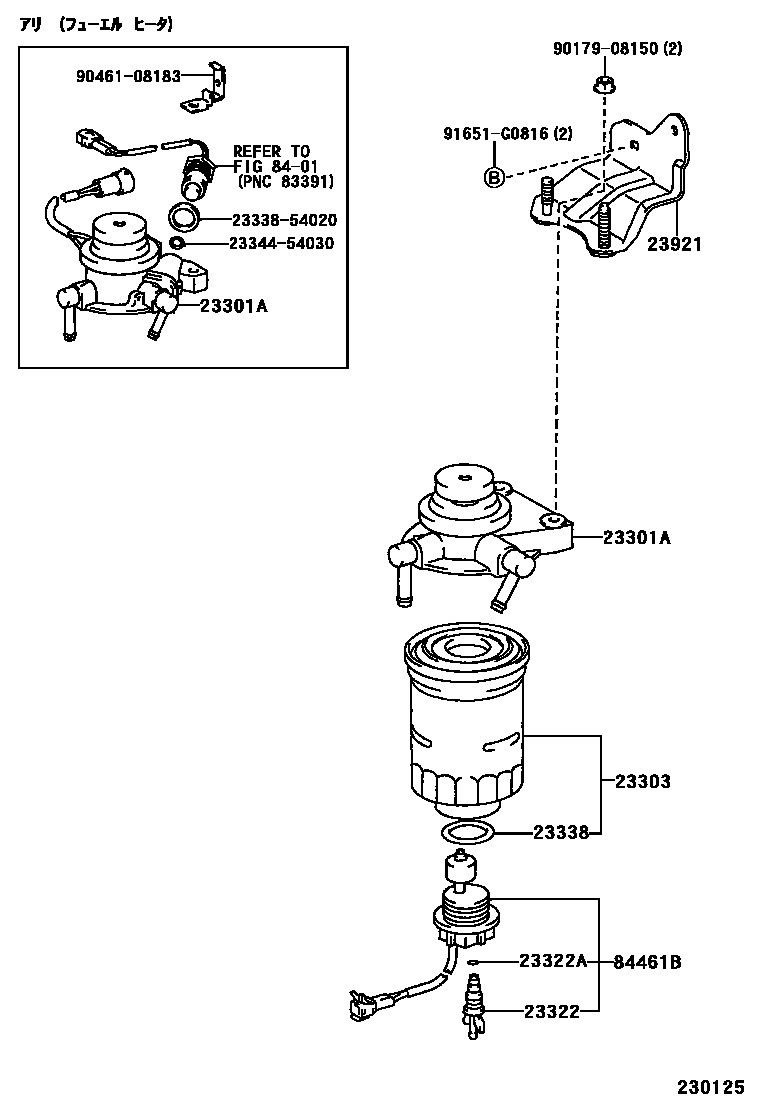

FUEL FILTER

0001 1 0002 1 0003 1 0004 1

23301ACAP ASSY, FUEL FILTER

main23301-54420i2L..LN105,85..JPP..RHD198808

main23301-54460i2L..LN10#,110,85,90..JPP..LHD198808

main23301-54470i2L..LN10#,110,85,90..JPP..LHD198808

W(FUEL HEATER)

main23301-54520i2LT..LN130..JPP199108-199302

main23301-54540i2LT..LN130..JPP199001-199108

sub23301-54240

main23301-54540i2LT..LN130..JPP199108-199302

W(FUEL HEATER)

sub23301-54240

main23301-67020i1KZT..KZN130..JPP..LHD199302-199511

main23301-67030i1KZT..KZN130..JPP..RHD199308-199511

main23301-67040i1KZT..KZN130..JPP..LHD199302-199511

W(FUEL HEATER)

23303ELEMENT SUB-ASSY, FUEL FILTER

main23303-64010i2L..LN105..JPP..RHD199108-199511

main23303-64020i2L#..LN105,110,130,85,90..JPP198808-199201

sub23303-64010

23322PLUG, DRAIN(FOR FUEL FILTER)

main23322-64010i1KZT..KZN130..JPP198808-199511

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i1KZT..KZN130..JPP198808-199511

23338GASKET(FOR WARNING SWITCH)

main23344-64010i1KZT..KZN130..JPP198808-199511

23921SUPPORT, FUEL FILTER

main23921-54270i2L..LN105,85..JPP..RHD198808

main23921-54280i2L..LN10#,110,85,90..JPP..LHD198808-199704

sub23921-54281

main23921-54281i2L..LN10#,110,85,90..JPP..LHD199704

main23921-54290i2LT..LN130..JPP199001-199511

main23921-67010i1KZT..KZN130..JPP..RHD199308-199511

main23921-72010i2Y,4Y..YN106,110,85,90..JPP198808-199408

8401

84461BSWITCH, LEVEL WARNING

main84461-35050iLN10#,110,85,90..JPP..LHD198808-199708

sub84461-35130

main84461-35060iLN105,85..JPP..RHD198808-199708

main84461-35070iKZN130..JPP..LHD199001-199511

2333854020GASKET(FOR WARNING SWITCH)

main23338-54020

2334454030GASKET, CLAMPING NUT(FOR FUEL FILTER)

main23344-54030

9017908150

main90179-08150

9046108183

main90461-08183

91651G0816

main91651-G0816

13 parts on this diagram · 4 diagrams in section
