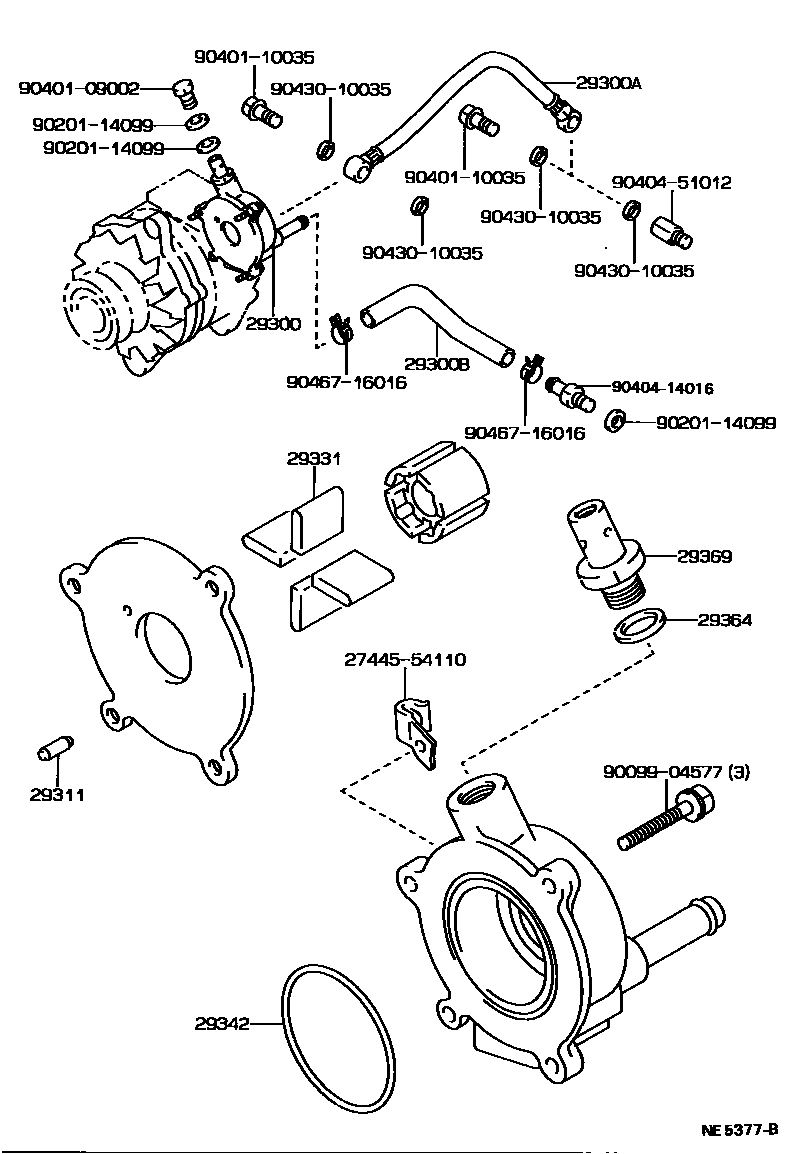

VACUUM PUMP

0001 1 0002 1

29300PUMP ASSY, VACUUM

main29300-54050i2LT..LN130..JPP199001-199101

main29300-54051i2LT..LN130..JPP199101-199511

main29300-54090i2L..LN105,110,85,90..JPP198808-199101

main29300-54091i2L..LN10#,110,85,90..JPP199101

main29300-67020i1KZT..KZN130..JPP199308-199511

29300AHOSE, VACUUM PUMP OIL INLET

main90923-02077i2L..LN10#,110,85,90..JPP198808

main90923-02096i2LT..LN130..JPP199001-199511

29300BHOSE, VACUUM PUMP OIL OUTLET

main29611-54030i2L#..LN10#,110,130,85,90..JPP198808

29311PIN, VACUUM PUMP DOWEL, NO.1

main29311-76010×2i1KZT..KZN130..JPP199308-199511

29331BLADE, VACUUM PUMP, A

main29331-56070×4i2L#..LN10#,110,130,85,90..JPP198808

main29331-67020×5i1KZT..KZN130..JPP199308-199511

29342PACKING, VACUUM PUMP

main29342-58010i1KZT..KZN130..JPP199308-199511

NO.1

main29342-67020i1KZT..KZN130..JPP199308-199511

NO.2

main29342-68010×2i1KZT..KZN130..JPP199308-199511

NO.3

main96740-02063i2L#..LN10#,110,130,85,90..JPP198808

29364WASHER, VACUUM PUMP

main29364-66010i1KZT,2L#..KZN130,LN10#,110,130,85,90..JPP198808

29369VALVE SUB-ASSY, CHECK

main29369-56070i2L#..LN10#,110,130,85,90..JPP198808

main29369-64030i1KZT..KZN130..JPP199308-199511

2744554110

main27445-54110

9009904577

main90099-04577

9020114099

main90201-14099

9040109002

main90401-09002

9040110035

main90401-10035

9040414016

main90404-14016

9040451012

main90404-51012

9043010035

main90430-10035

9046716016

main90467-16016

17 parts on this diagram · 2 diagrams in section
