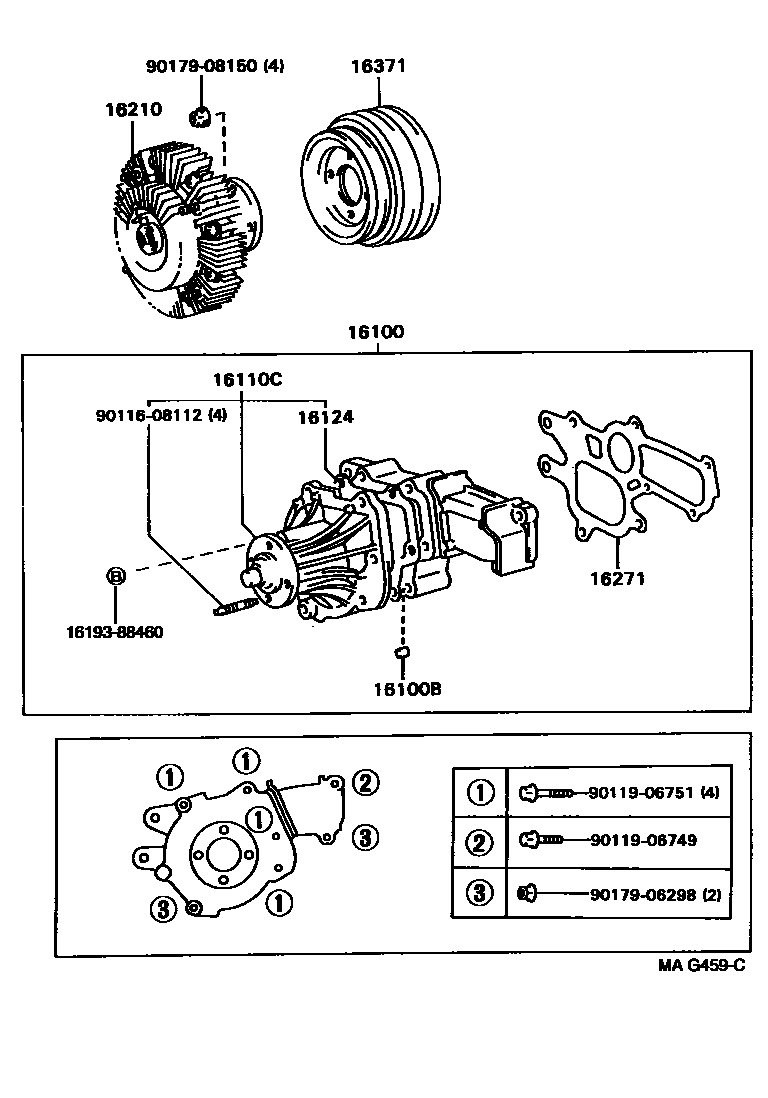

WATER PUMP

0001 1 0002 1 0003 1 0004 1 0005 1

16100PUMP ASSY, ENGINE WATER

main16100-39346i22RE..RN106,110..JPP198808

main16100-59155i2L#..LN10#,110,130,85,90..JPP198808-199701

sub16100-59255

main16100-59255i2L..LN10#,110,85,90..JPP199701

sub16100-59256

main16100-69225i3VZE..VZN130..JPP198908-199208

sub16100-69475

main16100-69345i3VZE..VZN130..JPP199208-199511

sub16100-69485

main16100-69355i1KZT..KZN130..JPP199308-199511

sub16100-69356

main16100-79036i2Y,4Y..YN106,110,85,90..JPP198808-199408

sub16100-79037

16100BPIN, RING(FOR WATER PUMP SET)

main16159-70040i1KZT..KZN130..JPP199308-199511

16110CPUMP ASSY, WATER, W/O COVER

main16110-69045i1KZT..KZN130..JPP199308-199511

16124GASKET, WATER PUMP COVER

main16124-35010i22RE..RN106,110..JPP198808

main16124-67010i1KZT..KZN130..JPP199308-199511

main16124-71010i2Y,4Y..YN106,110,85,90..JPP198808-199001

sub16124-71011

main16124-71011i2Y,4Y..YN106,110,85,90..JPP199001-199408

16210COUPLING ASSY, FLUID

main16210-31010i2Y,4Y..YN106,110,85,90..JPP198808-199408

main16210-38060i22RE..RN106,110..JPP198808

main16210-54140i2L..LN10#,110,85,90..JPP198808-199303

sub16210-54141

main16210-54141i2L..LN10#,110,85,90..JPP199303

main16210-54150i2L..LN85..JPP..LHD..CBU199208

ISURAERU SPEC

main16210-54190i2LT..LN130..JPP199001-199006

sub16210-54200

main16210-54200i2LT..LN130..JPP199006-199511

main16210-65010i3VZE..VZN130..JPP198908-198911

sub16210-65020

main16210-65020i3VZE..VZN130..JPP198911-199308

main16210-65030i3VZE..VZN130..JPP199308-199511

main16210-67010i1KZT..KZN130..JPP199308-199511

16271GASKET, WATER PUMP

main16271-54020i2L#..LN10#,110,130,85,90..JPP198808

sub16271-54030

main16271-67020i1KZT..KZN130..JPP199308-199511

16371PULLEY, FAN

main16173-35020i22RE..RN106,110..JPP198808

main16371-54030i2L#..LN10#,110,130,85,90..JPP198808

main16371-65010i3VZE..VZN130..JPP198908-199511

main16371-67020i1KZT..KZN130..JPP199308-199511

main16371-71010i2Y,4Y..YN106,110,85,90..JPP198808-199408

sub16371-71021

1619388460BOLT, STUD(FOR WATER PUMP COVER)

main16193-88460

9011608112

main90116-08112

9011906749

main90119-06749

9011906751

main90119-06751

9017906298

main90179-06298

9017908150

main90179-08150

13 parts on this diagram · 5 diagrams in section
