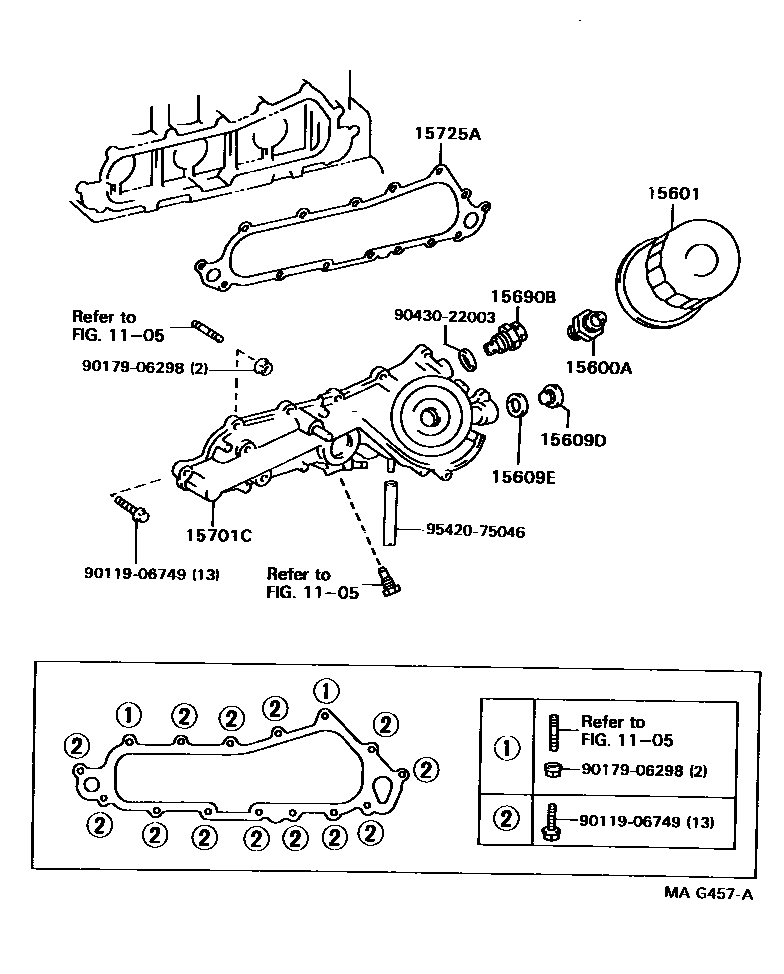

OIL FILTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

1105

15600AUNION(FOR OIL FILTER)

main15116-54020i2L#..LN105,110,130,85,90..JPP198808-199106

sub15116-54021

main15116-54021i2L#..LN10#,110,130,85,90..JPP199106-199511

main90404-19013i3VZE..VZN130..JPP198908-199511

main90404-20173i22RE..RN106,110..JPP198808

15601FILTER SUB-ASSY, OIL

main15600-25010i4Y..YN106,110..JPP199001-199408

sub90915-20003

main15601-33021i2Y,4Y..YN106,110,85,90..JPP198808-199308

main90915-03002i22RE..RN106,110..JPP198808-199204

sub90915-20001

main90915-03006i2L#..LN105,110,130,85,90..JPP198808-199106

sub90915-30002

main90915-10002i2Y..YN85,90..JPP199308-199408

sub90915-10004

main90915-20001i3VZE..VZN130..JPP199204-199511

sub90915-20003

main90915-30002i1KZT..KZN130..JPP199106-199511

15609BRACKET SUB-ASSY, OIL FILTER

main15609-54071i2L..LN85,90..JPP198808-199509

main15609-54072i2L..LN85,90..JPP199509

main15609-54081i2L..LN10#,110..JPP198808-199509

main15609-54082i2L..LN10#,110..JPP199509

main15609-54100i2LT..LN130..JPP199001-199509

sub15609-54101

main15609-54101i2LT..LN130..JPP199509-199511

main15609-71011i2Y,4Y..YN106,110,85,90..JPP198808-199308

main15671-73010i4Y..YN106,110..JPP199001-199011

sub15671-73011

main15671-73011i4Y..YN106,110..JPP199011-199408

main15671-73020i2Y..YN85,90..JPP199308-199408

15609DPLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)

main90341-20002i1KZT..KZN130..JPP199308-199511

15609EGASKET, W/HEAD STRAIGHT SCREW PLUG

main15134-67020i1KZT..KZN130..JPP199308-199511

15690BVALVE ASSY, OIL COOLER RELIEF

main15690-64010i1KZT..KZN130..JPP199308-199511

sub15690-64011

15701CCOVER SUB-ASSY, OIL COOLER

main15701-67020i1KZT..KZN130..JPP199308-199511

15725AGASKET, OIL COOLER COVER

main15725-67010i1KZT..KZN130..JPP199308-199511

9011906749

main90119-06749

9017906298

main90179-06298

9043022003

main90430-22003

9542075046

main95420-75046

13 parts on this diagram · 7 diagrams in section
