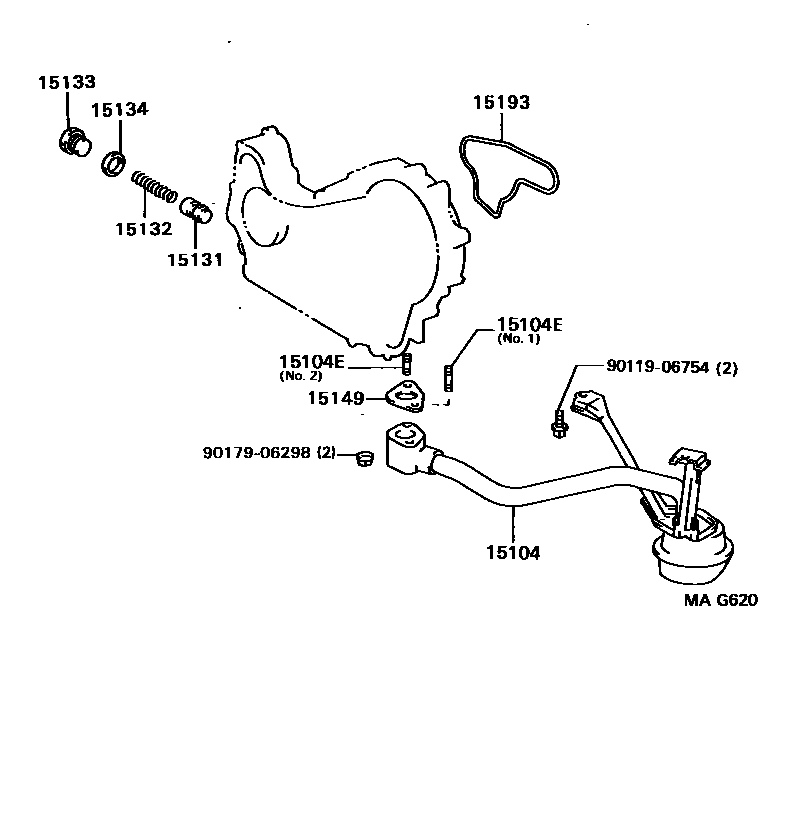

ENGINE OIL PUMP

0001 1 0002 1 0003 1 0005 1 0006 1 0007 1

15104STRAINER SUB-ASSY, OIL

main15104-35010i22RE..RN106,110..JPP198808

main15104-54044i2L..LN85,90..JPP198808-198908

main15104-54130i2L..LN10#,110..JPP198808

main15104-54170i2LT..LN130..JPP199001-199511

main15104-54180i2L..LN85,90..JPP198908-199105

sub15104-54181

main15104-54181i2L..LN85,90..JPP199105-199701

sub15104-54220

main15104-54220i2L..LN85,90..JPP199705

main15104-65010i3VZE..VZN130..JPP198908-199511

main15104-67050i1KZT..KZN130..JPP199308-199511

main15104-71010i2Y..YN85,90..JPP198808-199408

main15104-71020i4Y..YN106,110..JPP198808-199408

15104EBOLT, STUD(FOR OIL STRAINER)

main92122-40816i2L#..LN10#,110,130,85,90..JPP198808

main92122-60614i1KZT..KZN130..JPP199308-199511

NO.1

main92122-60650i1KZT..KZN130..JPP199308-199511

NO.2

15131VALVE, OIL PUMP RELIEF

main15131-24010i2Y,4Y..YN106,110,85,90..JPP198808-199511

main15131-38030i22RE..RN106,110..JPP198808

main15131-46040i1KZT..KZN130..JPP199308-199511

main15131-54010i2L#..LN10#,110,130,85,90..JPP198808

15132SPRING, OIL PUMP RELIEF VALVE

main15132-17010i1KZT..KZN130..JPP199308-199511

main15132-40010i2Y,4Y..YN106,110,85,90..JPP198808-199408

main15132-46010i22RE..RN106,110..JPP198808

main15132-54010i2L#..LN10#,110,130,85,90..JPP198808

main15132-65020i3VZE..VZN130..JPP198908-199511

15133PLUG, OIL PUMP RELIEF VALVE

main15133-17010i1KZT..KZN130..JPP199308-199511

main15133-20010i22RE..RN106,110..JPP198808

main15133-24010i3VZE..VZN130..JPP198808-199511

main15133-54010i2L#..LN10#,110,130,85,90..JPP198808

15134GASKET, OIL PUMP RELIEF VALVE

main15134-20010i22RE..RN106,110..JPP198808

main15134-67020i1KZT..KZN130..JPP199308-199511

15149GASKET, OIL STRAINER FLANGE

main15149-67010i1KZT..KZN130..JPP199308-199511

15193GASKET, OIL PUMP

main15193-67010i1KZT..KZN130..JPP199308-199511

9011906754

main90119-06754

9017906298

main90179-06298

10 parts on this diagram · 6 diagrams in section
