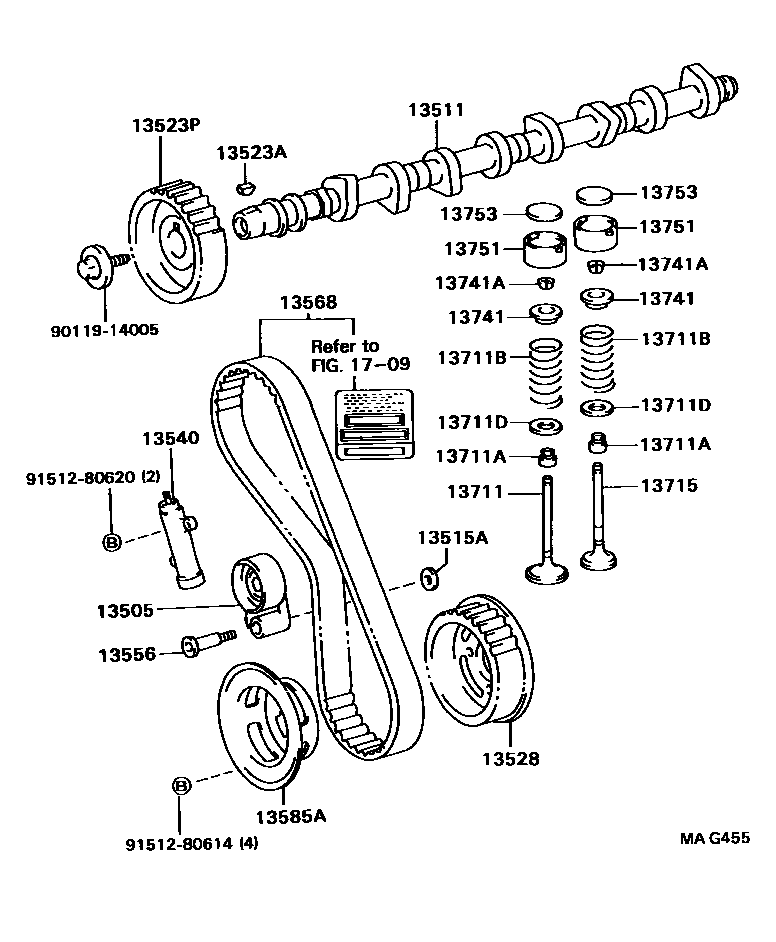

CAMSHAFT & VALVE
13511CAMSHAFT
13515AWASHER, PLATE(FOR DISTRIBUTOR DRIVE GEAR)
13523GEAR OR SPROCKET, CAMSHAFT TIMING
13523AKEY, WOODRUFF(FOR TIMING GEAR)
13523PPULLEY, CAMSHAFT TIMING
13528GEAR, CAMSHAFT DRIVE
13556SHAFT, TIMING BELT IDLER
13585BRACKET, TENSION SPRING
13585AFLANGE, CAMSHAFT TIMING PULLEY, NO.1
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
sub90913-02110
sub90913-02102
sub90913-02080
sub90913-02098
FOR INTAKE VALVE
sub90913-02094
13711DWASHER, PLATE(FOR VALVE SPRING SEAT)
13715VALVE, EXHAUST
13741RETAINER, VALVE SPRING
EXHAUST
INTAKE
13741ALOCK, VALVE SPRING RETAINER
13753SHIM, VALVE ADJUSTING
T=2.50,MARK=T01
T=2.60,MARK=T06
T=2.70,MARK=T11
T=2.80,MARK=T16
T=2.90,MARK=T21
T=3.00,MARK=T26
T=3.10,MARK=T31
T=3.20,MARK=T36
T=3.30,MARK=T41
T=2.55,MARK=T42
T=2.65,MARK=T43
T=2.75,MARK=T44
T=2.85,MARK=T45
T=2.95,MARK=T46
T=3.05,MARK=T47
T=3.15,MARK=T48
T=3.25,MARK=T49
T=2.20
T=2.25
T=2.30
T=2.35
T=2.40
T=2.45
T=2.50
T=2.55
T=2.60
T=2.65
T=2.70
T=2.75
T=2.80
T=2.85
T=2.90
T=2.95
T=3.00
T=3.05
T=3.10
T=3.15
T=3.20
T=3.25
T=3.30
T=3.35
T=3.40
T=2.20
T=2.25
T=2.30
T=2.35
T=2.40
T=2.45
T=2.50
T=2.55
T=2.60
T=2.65
T=2.70
T=2.75
T=2.80
T=2.85
T=2.90
T=2.95
T=3.00
T=3.05
T=3.10
T=3.15
T=3.20
T=3.25
T=3.30
T=3.35
T=3.40
1709
9011914005
main90119-14005
9151280614
main91512-80614
9151280620
main91512-80620
26 parts on this diagram · 5 diagrams in section
