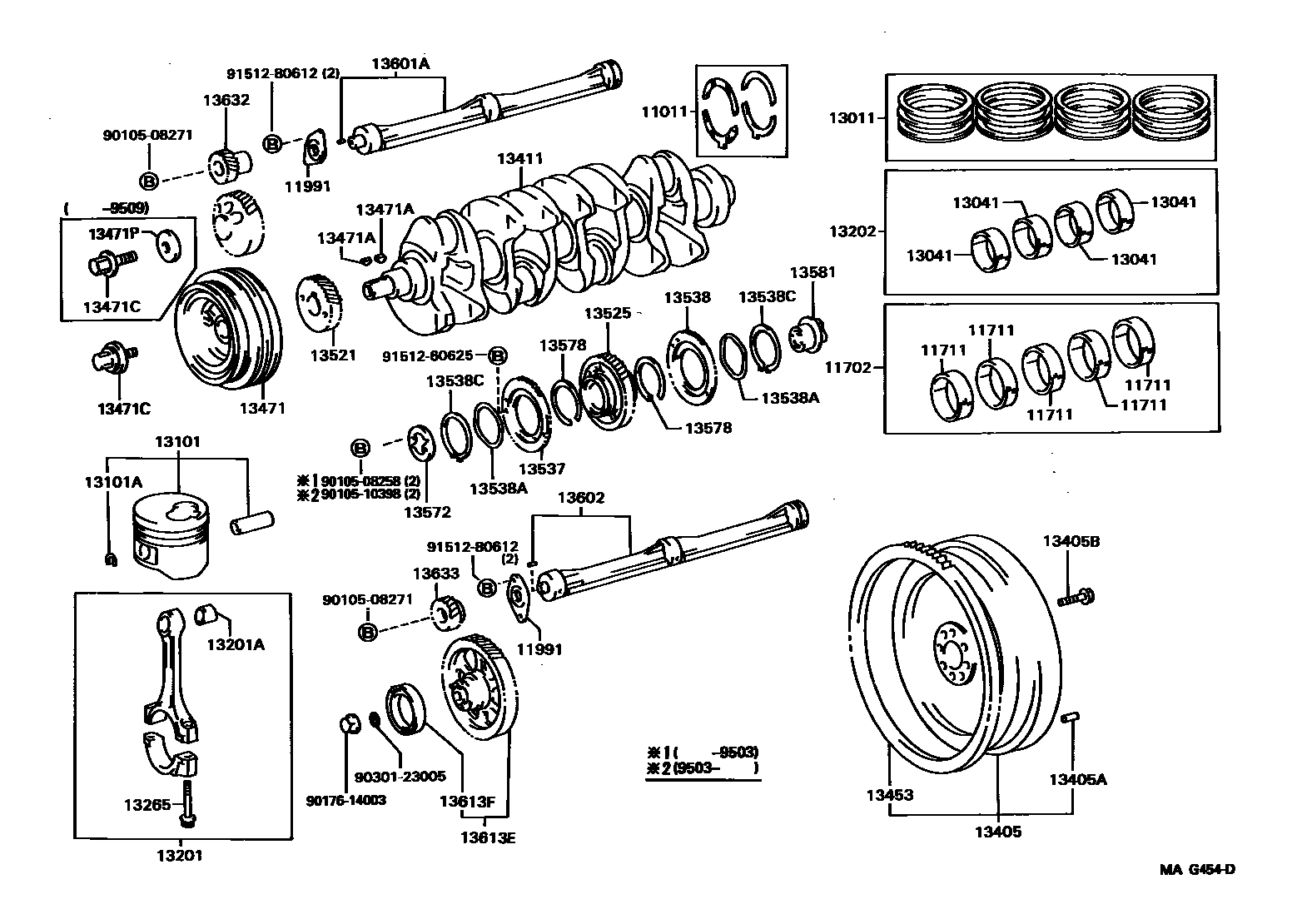

CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD
STD
STD
STD
STD
O/S 0.125
O/S 0.125
O/S 0.250
O/S 0.250
11702BEARING SET, CRANKSHAFT
U/S 0.25
U/S 0.25
U/S 0.25
U/S 0.50
11711BEARING, CRANKSHAFT
MARK 1,NO.2
MARK 2,NO.2
MARK 3,NO.2
MARK 4,NO.2
MARK 5,NO.2
MARK 3
MARK 4
MARK 5
MARK 1,NO.1
MARK 2,NO.1
MARK 3,NO.1
MARK 4,NO.1
MARK 5,NO.1
MARK 6,NO.1
MARK 1
MARK 2
MARK 3
11991WASHER, BALANCESHAFT THRUST
13011RING SET, PISTON
STD
STD
STD
STD
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.75
O/S 0.75
O/S 1.00
O/S 1.00
O/S 1.00
13041BEARING, CONNECTING ROD
MARK 1
MARK 2
MARK 3
MARK 1
MARK 2
MARK 3
13101PISTON SUB-ASSY, W/PIN
STD,MARK 1
STD,MARK 2
STD,MARK 3
STD,MARK 1
STD,MARK 2
STD,MARK 3
STD
STD,MARK 1
STD,MARK 2
STD,MARK 3
STD,MARK 1,RH BANK
STD,MARK 2,RH BANK
STD,MARK 3,RH BANK
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.50,RH BANK
O/S 0.50
O/S 0.50
O/S 0.75
O/S 0.75
O/S 0.75
O/S 1.00
O/S 1.00
O/S 1.00
O/S 1.00
STD,MARK 1,LH BANK
STD,MARK 2,LH BANK
STD,MARK 3,LH BANK
O/S 0.50,LH BANK
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ABUSH(FOR CONNECTING ROD SMALL END)
13202BEARING SET, CONNECTING ROD
U/S 0.25
U/S 0.25
U/S 0.25
U/S 0.50
U/S 0.50
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=23,OD=8
L=18,OD=8
L=22,OD=10
13405BBOLT, FLYWHEEL SETTING
13453GEAR, FLYWHEEL RING
13471PSPACER(FOR CRANKSHAFT PULLEY)
13525GEAR, IDLE, NO.1
sub13508-67011
13537GEAR, IDLE SUB, NO.1
13538GEAR, IDLE SUB, NO.2
13538AWASHER, WAVE
13538CRING, SHAFT SNAP
13572PLATE, IDLE GEAR THRUST
13578SPRING, IDLE GEAR
13581SHAFT, IDLE GEAR, NO.1
13601ABALANCESHAFT SUB-ASSY, NO.1
sub13601-67020
13602BALANCESHAFT SUB-ASSY, NO.2
sub13602-67020
13613EGEAR, INJECTION
sub13613-67902
13613FBEARING, RADIAL BALL
13632GEAR, BALANCESHAFT DRIVEN, NO.1
13633GEAR, BALANCESHAFT DRIVEN, NO.2
9010508258
main90105-08258
9010508271
main90105-08271
9010510398
main90105-10398
9017614003
main90176-14003
9030123005
main90301-23005
9151260625
main91512-60625
9151280612
main91512-80612
43 parts on this diagram · 5 diagrams in section
