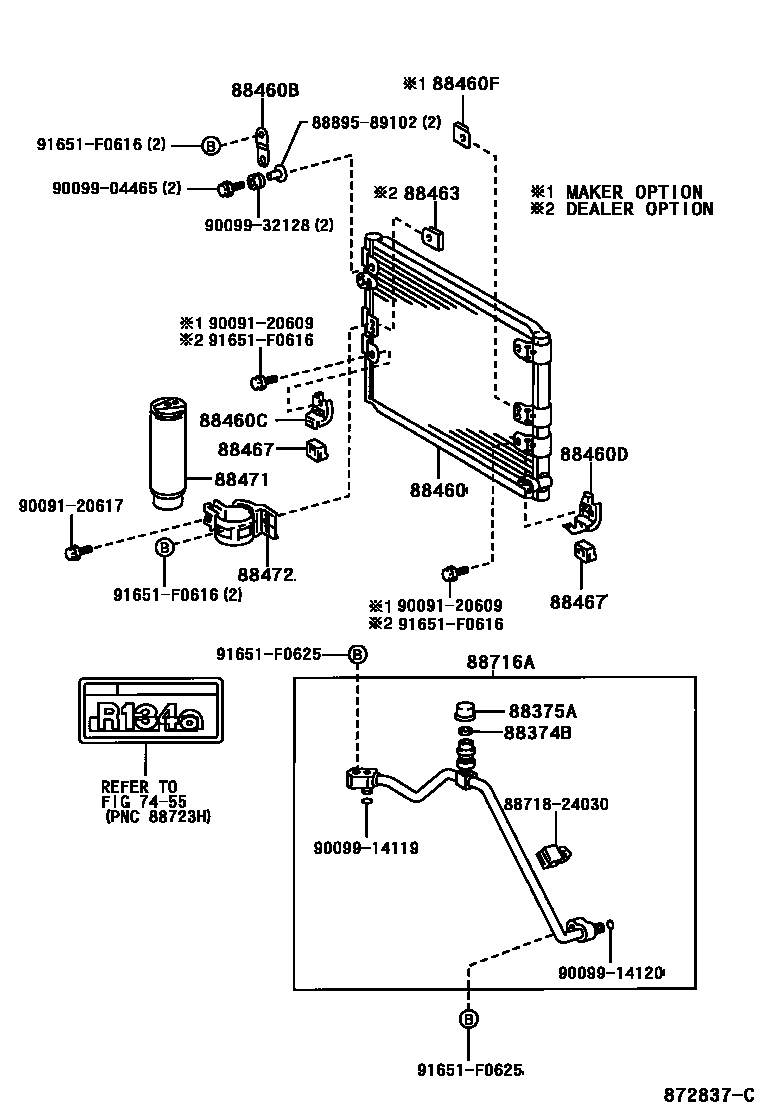

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1CONDENSER & RECEIVER 0002 1HOSE & PIPE 0003 1HOSE & PIPE

7455

88374BVALVE, SERVICE, NO.1

main88374-30010iRZN18#,VZN18#199511

88375ACAP, SERVICE VALVE (FOR COOLER PIPE)

main88375-30280iRZN18#,VZN18#199511

88460CONDENSER ASSY, COOLER

main88461-35050iRZN18#,VZN18#199511

88460BBRACKET, COOLER CONDENSER, NO.1

main88688-35290iRZN18#,VZN18#199511

88460CBRACKET, COOLER CONDENSER, NO.2

main88688-35310iRZN18#,VZN18#199511

88460DBRACKET, COOLER CONDENSER, NO.3

main88688-35300iRZN18#,VZN18#199511

88460FBRACKET, COOLER CONDENSER, NO.4

main88688-26470iRZN18#,VZN18#199511

88463BRACKET, COOLER CONDENSER, NO.1

main88463-35120iRZN18#,VZN18#199708-199807

88467CUSHION, COOLER CONDENSER, NO.1

main88467-35020iRZN18#,VZN18#199511-199708

88471TANK, RECEIVER AIR CONDITIONER

main88471-34010iRZN18#,VZN18#199511

88472BRACKET, RECEIVER TANK, NO.1

main88472-35020iRZN18#,VZN18#199511

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88726-35020iRZN18#,VZN18#199511-200008

main88726-35160iVZN18#200008

8871824030PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-24030

8889589102HOLDER, FUSE

main88895-89102

9009120609

main90091-20609

9009120617

main90091-20617

9009904465

main90099-04465

9009914119

main90099-14119

9009914120

main90099-14120

9009932128

main90099-32128

91651F0616

main91651-F0616

91651F0625

main91651-F0625

23 parts on this diagram · 3 diagrams in section
