HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

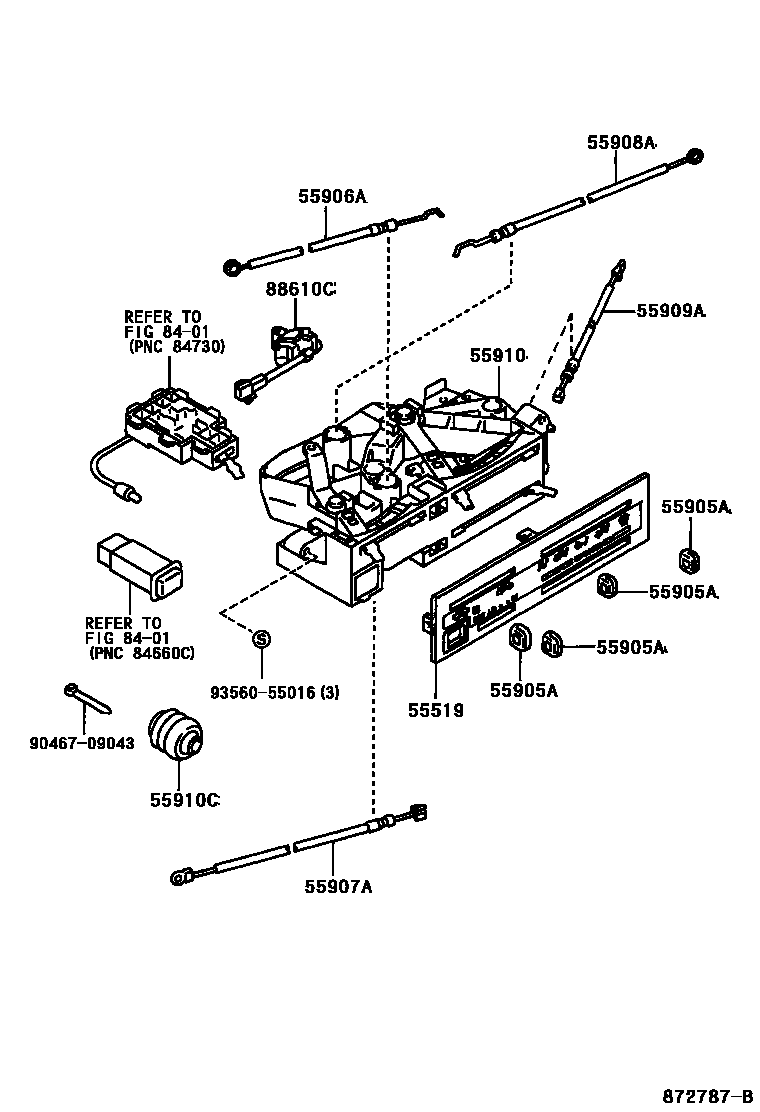

Parts diagram
55519PLATE, HEATER CONTROL NAME
main55519-35050i199511-199708
W(AIR CONDITIONER)
sub55519-35070
main55519-35070i199511-199708
main55519-35300i199708-199807
W(AIR CONDITIONER)
sub55519-35301
main55519-35301i199807-199810
W(AIR CONDITIONER)
sub55519-35302
main55519-35302i199810-200008
W(AIR CONDITIONER)
sub55519-35312
main55519-35310i199708-199807
sub55519-35311
main55519-35311i199807-199810
sub55519-35312
main55519-35312i199810-200008
sub55519-35141
main55519-35330i199807
main55519-35360i200008
W(AIR CONDITIONER)
sub55519-35350
main55519-35370i200008
sub55519-35340
55905AKNOB, HEATER CONTROL
main55905-35160i199708-200008
main55905-35330i200008
sub55905-35310
main55905-89115i199511-199708
55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
main55906-35060i199511-199708
main55906-35071i199708-200008
55907ACABLE SUB-ASSY, WATER VALVE CONTROL
main55907-35070i199511-199708
main55907-35080i199708-200008
55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL
main55908-35050i199511-199708
main55908-35090i199708-200008
55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL
main55909-35080i199511-199708
main55909-35120i199708-200008
55910CONTROL ASSY, HEATER OR BOOST VENTILATOR
main55910-35090i199511-199708
main55910-35210i199708-199810
sub55910-35211
main55910-35211i199810-199908
sub55910-35121
main55910-35212i199908-200008
sub55910-35121
main55910-35230i199807-199908
main55910-35231i199908
main55910-35250i200008
55910CGROMMET(FOR HEATER CONTROL CABLE)
main90480-13024i199511-200008
8401
88610CSWITCH ASSY, COOLER CONTROL
main88610-35010i199511-199708
9046709043
main90467-09043
9356055016
main93560-55016

12 parts on this diagram · 7 diagrams in section
