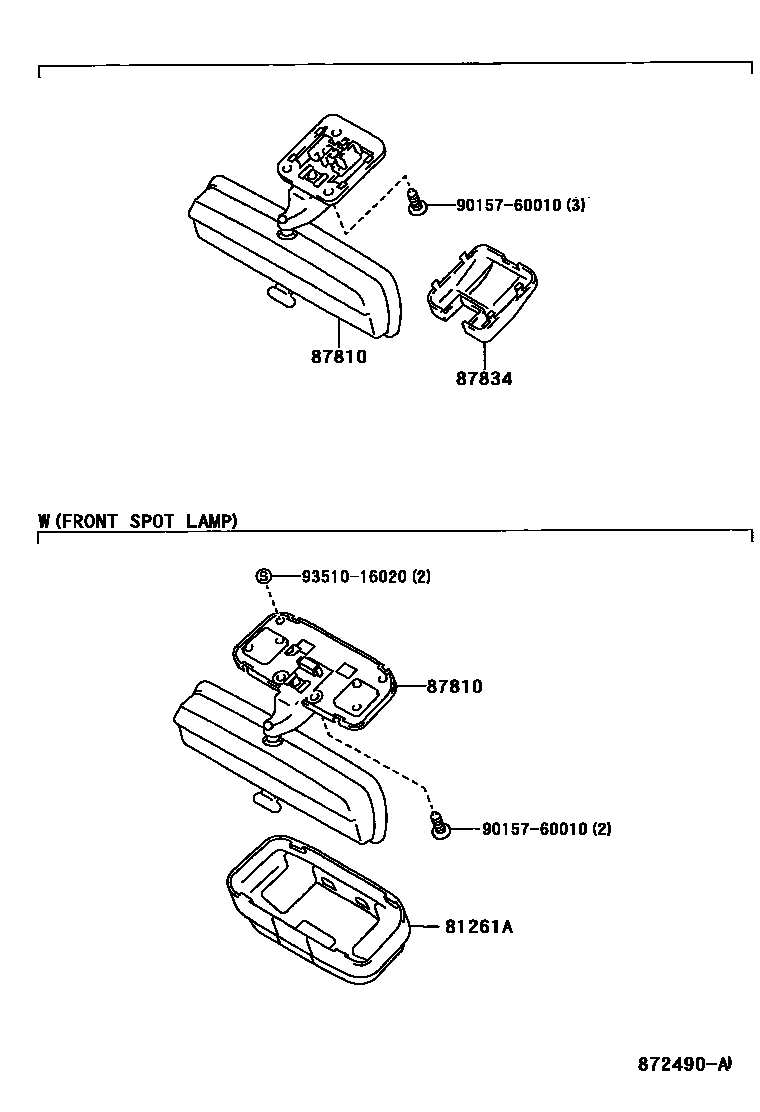

MIRROR

0001 1INNER MIRROR 0002 1OUTER MIRROR

81261ALENS AND COVER, MAP LAMP

main87818-35010-B1iRZN18#,VZN18#..SR5B,SR5V199511-199807

MOON MIST,TRIM1#

sub87818-35010

main87818-35010-E0iRZN18#,VZN18#199511-199807

OAK,TRIM4#

sub87818-35010

87810MIRROR ASSY, INNER REAR VIEW

main87810-35020-B1iRZN18#199511-199807

MOON MIST,TRIM1#

sub87810-35020

main87810-35020-B1iVZN18#..SR5V199511-199807

W(FRONT SPOT LAMP),MOON MIST,TRIM1#

sub87810-35020

main87810-35020-E0iVZN18#199511-199807

OAK,TRIM4#

sub87810-35020

main87810-35020-E0iVZN18#199511-199807

W(FRONT SPOT LAMP),OAK,TRIM4#

sub87810-35020

main87810-89141-B0iRZN18#,VZN18#..SR5B,SR5V199807-200008

LT.BLUISH GRAY,TRIM1#

sub87810-89141

main87810-89141-B1iRZN18#199511-199807

MOON MIST,TRIM1#

sub87810-89141

main87810-89141-B2iVZN18#..SR5B,SR5V200008

MD.CHARCOAL,TRIM1#

sub87810-89141

main87810-89141-E1iRZN18#199511-199807

OAK,TRIM4#

sub87810-89141

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-89105-B2iRZN18#199511-199807

MOON MIST,TRIM1#

sub87834-89105

main87834-89105-E2iRZN18#199511-199807

MD.OAK,TRIM4#

sub87834-89105

9015760010

main90157-60010

9351016020

main93510-16020

5 parts on this diagram · 2 diagrams in section
