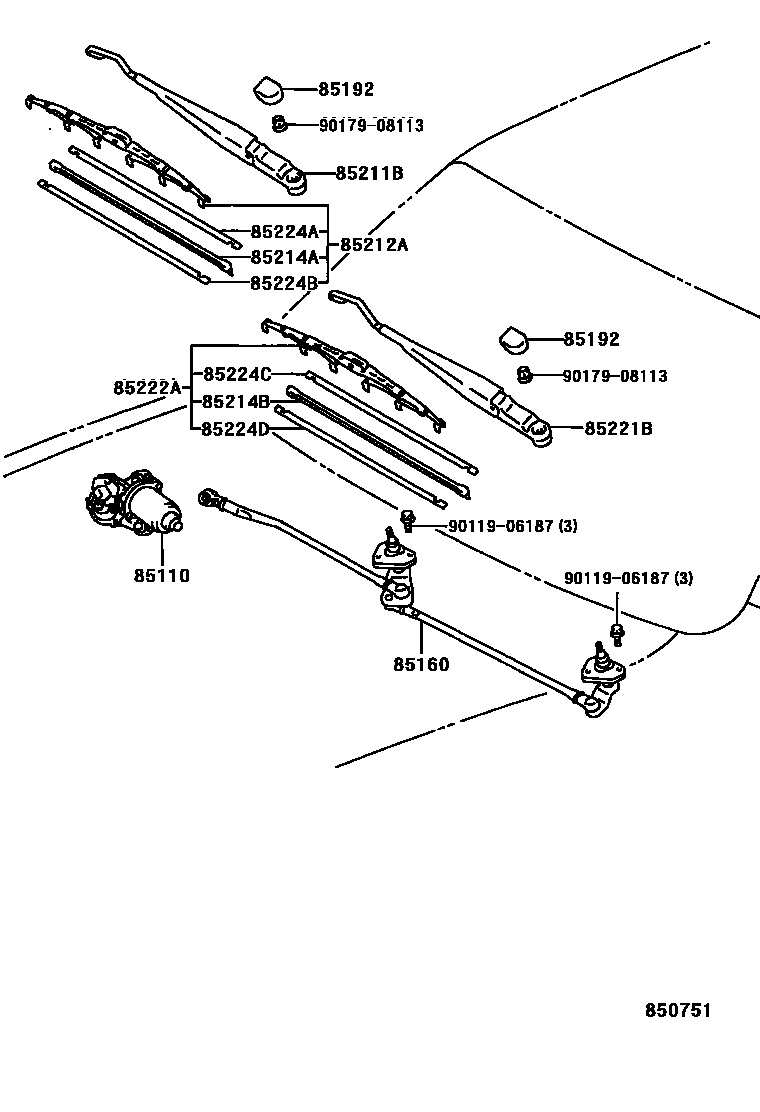

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-35230iRZN18#,VZN18#199511-200008

sub85110-35240

main85110-35240iRZN18#,VZN18#199511-200008

COLD SPEC

main85110-35240iVZN18#200008

main85110-35280iVZN18#200008

COLD SPEC

85160LINK ASSY, WINDSHIELD WIPER

main85150-35100iRZN18#,VZN18#199511-199909

sub85150-35200

main85150-35110iRZN18#,VZN18#199511

COLD SPEC

main85150-35200iRZN18#,VZN18#199909

85192COVER, WINDSHIELD WIPER ARM

main85192-12800iRZN18#,VZN18#199511

85211BARM, FRONT WIPER, RH

main85211-35080iRZN18#,VZN18#199511

85212ABLADE, FR WIPER, RH

main85212-35070iRZN18#,VZN18#199511

sub85212-35071

85214ARUBBER, WIPER, RH

main85214-35050iRZN18#,VZN18#199511

sub85214-12300

85214BRUBBER, WIPER, LH

main85214-35050iRZN18#,VZN18#199511

sub85214-12300

85221BARM, FRONT WIPER, LH

main85221-35080iRZN18#,VZN18#199511-200008

main85221-35090iVZN18#200008

85222ABLADE, FR WIPER, LH

main85222-35090iRZN18#,VZN18#199511

sub85222-35091

85224APLATE, WIPER RUBBER BACKING, NO.1

main85224-35060iRZN18#,VZN18#199511

sub85224-10190

85224BPLATE, WIPER RUBBER BACKING, NO.2

main85224-35060iRZN18#,VZN18#199511

sub85224-10190

85224CPLATE, WIPER RUBBER BACKING, NO.3

main85224-35050iRZN18#,VZN18#199511

85224DPLATE, WIPER RUBBER BACKING, NO.4

main85224-35050iRZN18#,VZN18#199511

9011906187

main90119-06187

9017908113

main90179-08113

15 parts on this diagram · 1 diagram in section
