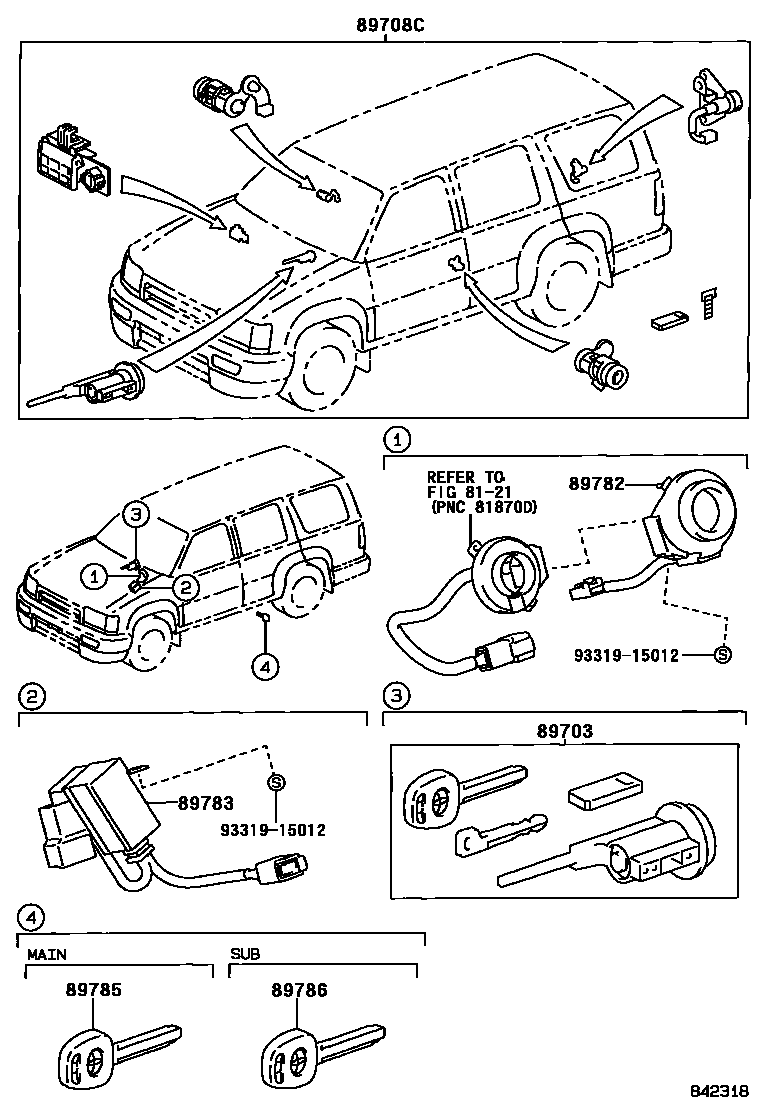

ANTI-THEFT DEVICE

8121

89703CYLINDER & KEY SET, IGNITION W/TRANSPONDER

main89703-35080iVZN18#..LULI,SR5V199807

89708CCYLINDER SET, LOCK W/TRANSPONDER KEY TRANSMITTER

main89708-35010iVZN18#..LULI,SR5V199807

89782COIL, TRANSPONDER KEY

main89782-35010iVZN18#..LULI,SR5V199807

89783AMPLIFIER, TRANSPONDER KEY

main89783-35020iVZN18#..LULI,SR5V199807

89785TRANSMITTER, TRANSPONDER KEY MASTER

main89785-26020iVZN18#..LULI,SR5V199807

89786TRANSMITTER, TRANSPONDER KEY SUB

main89786-60050iVZN18#..LULI,SR5V199807

9331915012

main93319-15012

8 parts on this diagram · 1 diagram in section
