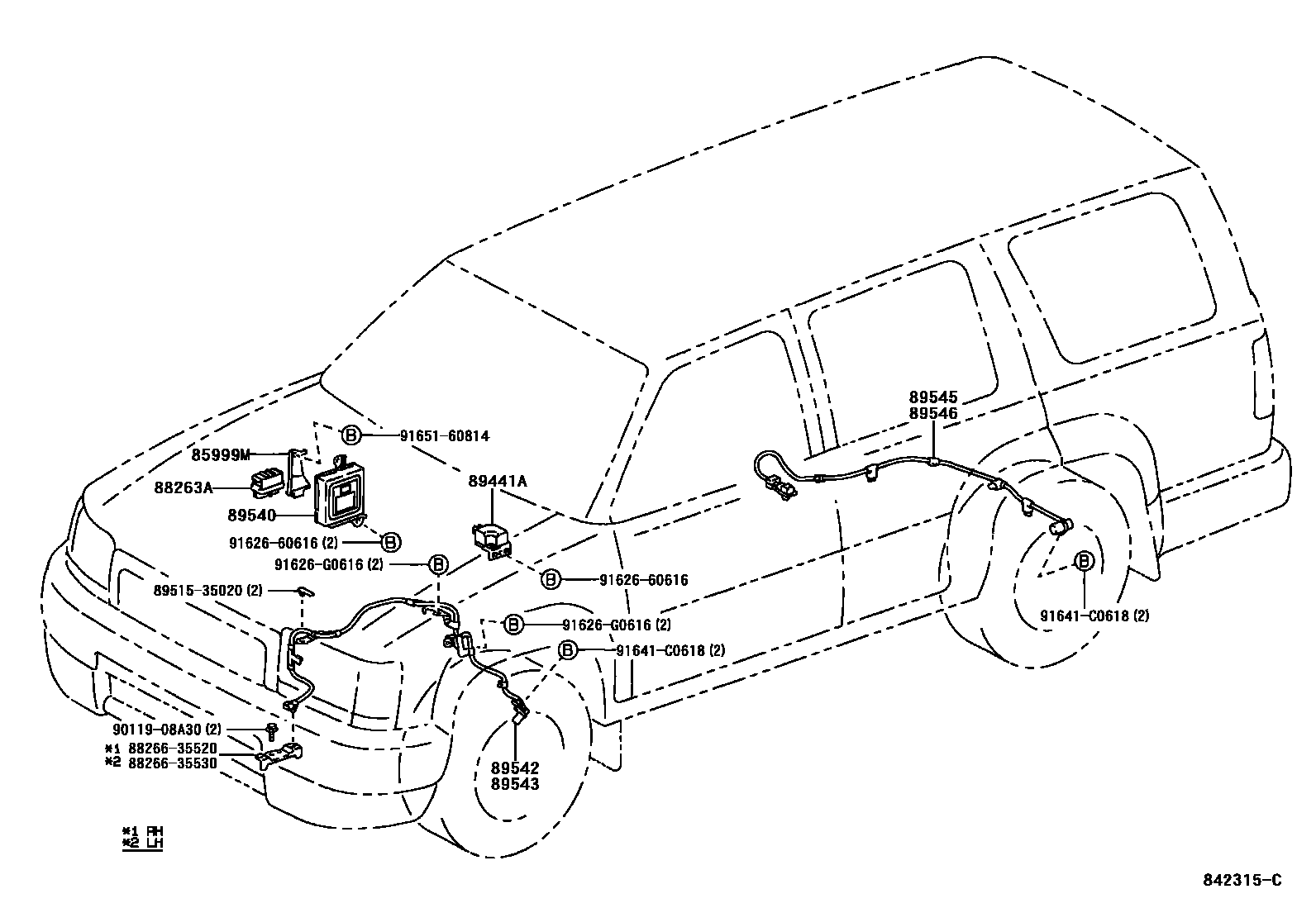

ABS & VSC
85999MBRACKET, RELAY
89441ASENSOR, DECELERATION
89540COMPUTER ASSY, SKID CONTROL
sub89540-35091
W(ABS)
W(ABS)
W(REAR DIFFERENTIAL LOCK & 265/70R16 TIRE)
W(ABS & 265/70R16 SIZE TIRE)
W(265/70R16 TIRE)
89542SENSOR, SPEED, FRONT RH
89543SENSOR, SPEED, FRONT LH
89545SENSOR, SPEED, REAR RH
89546SENSOR, SPEED, REAR LH
8826635520CLAMP, AIR SUSPENSION SENSOR, NO.1
main88266-35520
8826635530CLAMP, AIR SUSPENSION SENSOR, NO.1
main88266-35530
8951535020CLIP
main89515-35020
9011908A30
main90119-08A30
9162660616
main91626-60616
91626G0616
main91626-G0616
91641C0618
main91641-C0618
9165160814
main91651-60814
16 parts on this diagram · 2 diagrams in section
