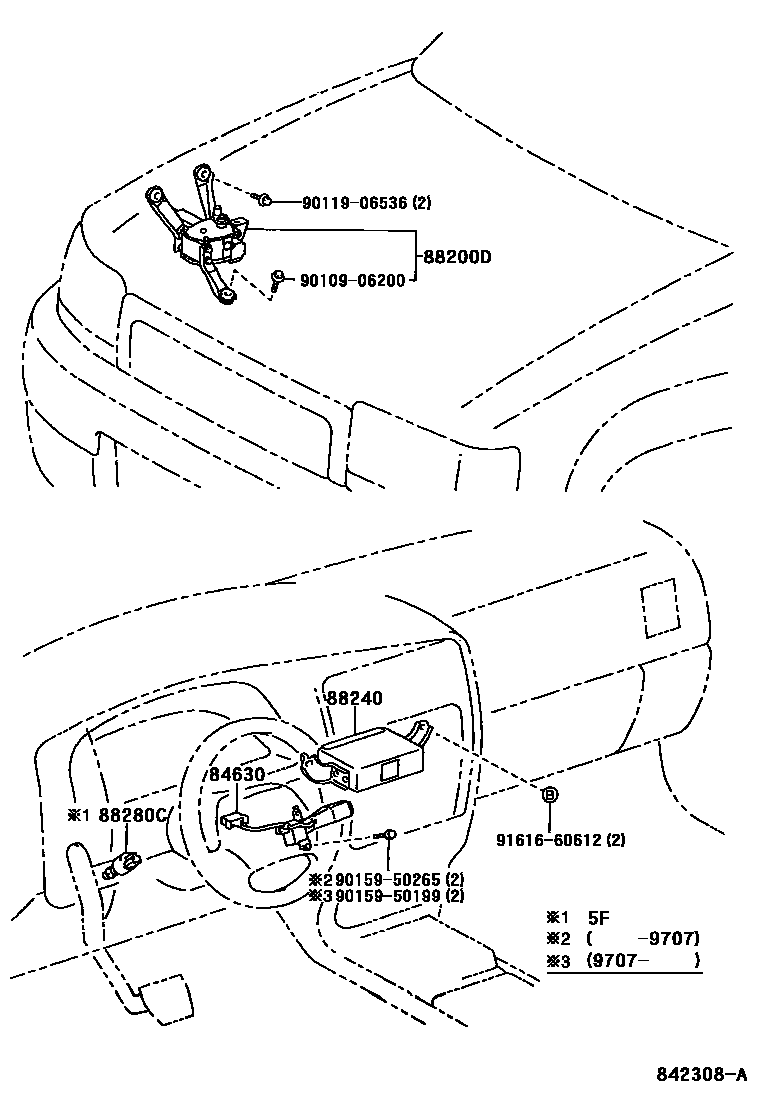

CRUISE CONTROL (AUTO DRIVE)

0001 1 0002 1 0003 1 0004 1

84630SWITCH ASSY, CRUISE CONTROL MAIN

main84630-06010iVZN18#..LULI199806-199810

W(LEATHER TYPE STEERING WHEEL)

main84630-06020iVZN18#..LULI199708-199806

W(LEATHER TYPE STEERING WHEEL)

main84630-30160iVZN18#200008

main84630-33020iRZN18#,VZN18#199810-200008

sub84630-26011

main84630-33020iRZN18#199708-199810

W(URETHANE STEERING WHEEL)

sub84630-26011

main84630-35060iRZN18#,VZN18#199511-199708

88200DACTUATOR ASSY, CRUISE CONTROL

main88001-0W010iVZN18#199608-199807

main88001-0W030iVZN18#199807-200008

main88200-35260iRZN18#199511-199708

main88200-35280iVZN18#199511-199608

main88200-35290iRZN18#199708-200008

88240COMPUTER ASSY, CRUISE CONTROL

main88240-35250iRZN18#199511-199708

main88240-35270iVZN18#199511-199608

main88240-35290iRZN18#199708-199806

sub88240-35291

main88240-35291iRZN18#199806-200008

88280CSWITCH ASSY, CLUTCH

main88280-14030iRZN18#,VZN185..5F199511-200008

9010906200

main90109-06200

9011906536

main90119-06536

9015950199

main90159-50199

9015950265

main90159-50265

9161660612

main91616-60612

9 parts on this diagram · 4 diagrams in section
