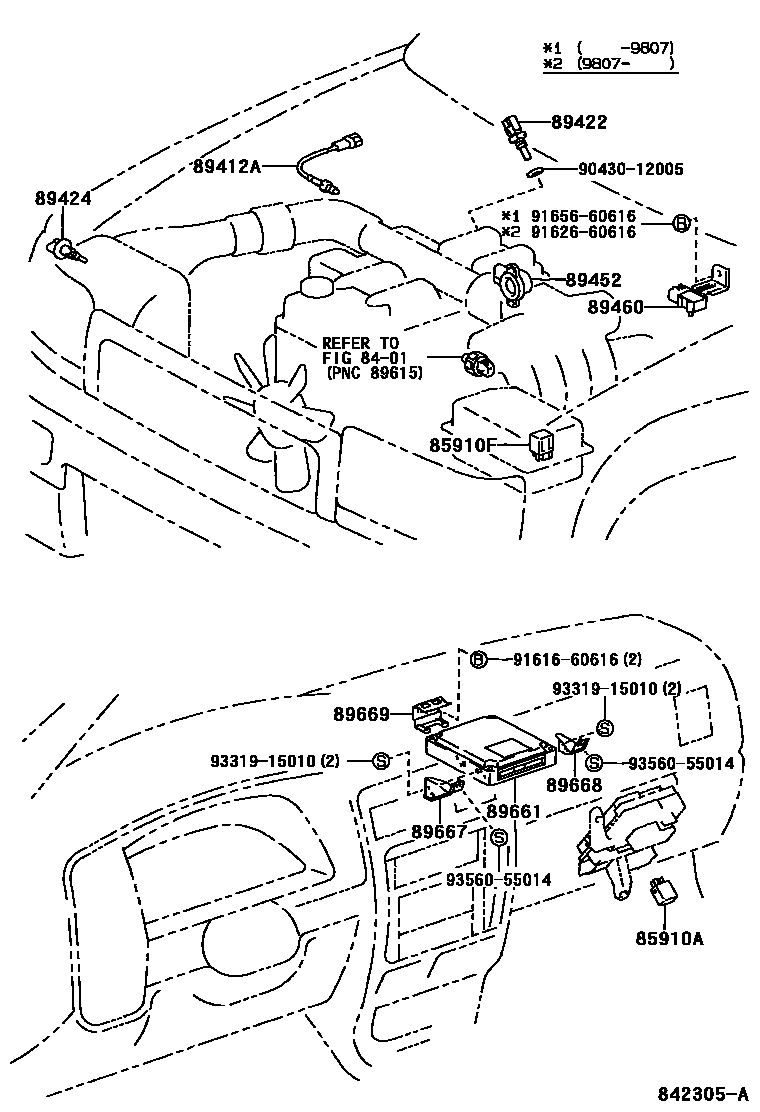

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

8401

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02012iRZN18#,VZN18#199511

85910FRELAY, COMPUTER (FOR EFI)

main90987-02012iRZN18#,VZN18#199511

89412ASENSOR, E.G.R GAS TEMPERATURE

main89412-34010iRZN18#199511-200008

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-35010iRZN18#,VZN18#199511

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010iRZN18#199511-199608

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-22080iRZN18#199511-199608

main89452-35020iVZN18#199511-200008

89460SENSOR ASSY, VAPOR PRESSURE

main89460-0W070iRZN18#,VZN18#199807-199908

PART NUMBER LABEL=89460-0W070

main89460-0W070iRZN18#,VZN18#199908-200008

main89460-35010iRZN18#,VZN18#199511-199608

main89460-35030iRZN18#,VZN18#199608-199807

main89460-35030iRZN18#,VZN18#199807-199908

PART NUMBER LABEL=89460-35030

main89461-35010iVZN18#200008

89661COMPUTER, ENGINE CONTROL

main89661-3D140iVZN185..5F199511-199608

main89661-3D150iVZN185..4FC199511-199608

main89661-3D160iVZN180199511-199608

main89661-3D190iRZN18#..5F199511-199608

main89661-3D200iRZN180..4FC199511-199608

main89661-3D210iRZN185..4FC199511-199608

main89661-3D250iRZN185..5F199708-199710

sub89661-3D251

main89661-3D251iRZN185..5F199710-199803

sub89661-3D252

main89661-3D252iRZN185..5F199803-199807

main89661-3D280iRZN18#..5F199608-199708

main89661-3D290iRZN185..4FC199608-199708

main89661-3D300iRZN180..4FC199608-199708

main89661-3D310iVZN185..5F199608-199708

main89661-3D320iVZN185..4FC199608-199612

sub89661-3D321

main89661-3D321iVZN185..4FC199612-199708

main89661-3D330iVZN180199608-199612

sub89661-3D331

main89661-3D331iVZN180199612-199708

main89661-3D340iRZN185..4FC199708-199710

sub89661-3D341

main89661-3D341iRZN185..4FC199710-199803

sub89661-3D342

main89661-3D342iRZN185..4FC199803-199807

main89661-3D350iRZN180..4FC199708-199710

sub89661-3D351

main89661-3D351iRZN180..4FC199710-199803

sub89661-3D352

main89661-3D352iRZN180..4FC199803-199807

main89661-3D360iVZN185..5F199708-199710

sub89661-3D361

main89661-3D361iVZN185..5F199710-199803

sub89661-3D362

main89661-3D362iVZN185..5F199803-199807

main89661-3D370iVZN185..4FC199708-199710

sub89661-3D371

main89661-3D371iVZN185..4FC199710-199803

sub89661-3D372

main89661-3D372iVZN185..4FC199803-199807

sub89661-3D373

main89661-3D380iVZN180199708-199710

sub89661-3D381

main89661-3D381iVZN180199710-199803

sub89661-3D382

main89661-3D382iVZN180199803-199807

sub89661-3D383

main89661-3D420iRZN180..5F199708-199710

sub89661-3D421

main89661-3D421iRZN180..5F199710-199803

sub89661-3D422

main89661-3D422iRZN180..5F199803-199807

main89661-3D550iVZN180199807-199906

sub89661-3D551

main89661-3D551iVZN180199906-199908

sub89661-3D552

main89661-3D560iVZN185..5F199807-199908

sub89661-3D561

main89661-3D570iVZN185..4FC199807-199906

sub89661-3D571

main89661-3D571iVZN185..4FC199906-199908

sub89661-3D572

main89661-3D580iVZN180199807-199908

CALIFORNIA SPEC

main89661-3D590iVZN185..5F199807-199908

CALIFORNIA SPEC

main89661-3D600iVZN185..4FC199807-199906

CALIFORNIA SPEC

main89661-3D620iRZN180..5F199807-199908

main89661-3D630iRZN180..4FC199807-199908

main89661-3D640iRZN185..5F199807-199908

main89661-3D650iRZN185..4FC199807-199908

main89666-35040iRZN180..5F199908-200008

main89666-35050iRZN180..4FC199908-200008

main89666-35060iRZN185..5F199908-200008

main89666-35070iRZN185..4FC199908-200008

main89666-35080iRZN180..5F199906-199908

CALIFORNIA SPEC

sub89666-35081

main89666-35081iRZN180..5F199908-200008

CALIFORNIA SPEC

main89666-35090iRZN180..4FC199906-199908

CALIFORNIA SPEC

sub89666-35091

main89666-35091iRZN180..4FC199908-200008

CALIFORNIA SPEC

main89666-35100iRZN185..5F199906-199908

CALIFORNIA SPEC

sub89666-35101

main89666-35101iRZN185..5F199908-200008

CALIFORNIA SPEC

main89666-35110iRZN185..4FC199906-199908

CALIFORNIA SPEC

sub89666-35111

main89666-35111iRZN185..4FC199908-200008

CALIFORNIA SPEC

main89666-35120iVZN180199908-200001

sub89666-35121

main89666-35121iVZN180200001-200008

main89666-35130iVZN185..5F199908-200001

sub89666-35131

main89666-35131iVZN185..5F200001-200008

main89666-35140iVZN185..4FC199908-200001

sub89666-35141

main89666-35141iVZN185..4FC200001-200008

main89666-35150iVZN180199908-200008

CALIFORNIA SPEC

main89666-35160iVZN185..5F199908-200008

CALIFORNIA SPEC

main89666-35170iVZN185..4FC199906-200008

CALIFORNIA SPEC

main89666-35410iVZN180200008-200107

main89666-35420iVZN185200008-200107

main89666-35581iVZN180200107-200208

main89666-35591iVZN185200107-200208

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-35070iRZN18#,VZN18#199511-199708

main89667-35080iRZN18#199608-200008

main89667-35120iRZN18#199906-200008

CALIFORNIA SPEC

main89667-35120iVZN18#200008

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-35100iRZN18#,VZN18#199511-199708

main89668-35120iRZN18#199608-200008

main89668-35150iRZN18#199906-200008

CALIFORNIA SPEC

main89668-35180iVZN18#200008

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-35050iRZN18#,VZN18#199511-199708

main89669-35060iRZN18#199608-200008

main89669-35090iVZN18#200008

9043012005

main90430-12005

9161660616

main91616-60616

9162660616

main91626-60616

9165660616

main91656-60616

9331915010

main93319-15010

9356055014

main93560-55014

18 parts on this diagram · 3 diagrams in section
