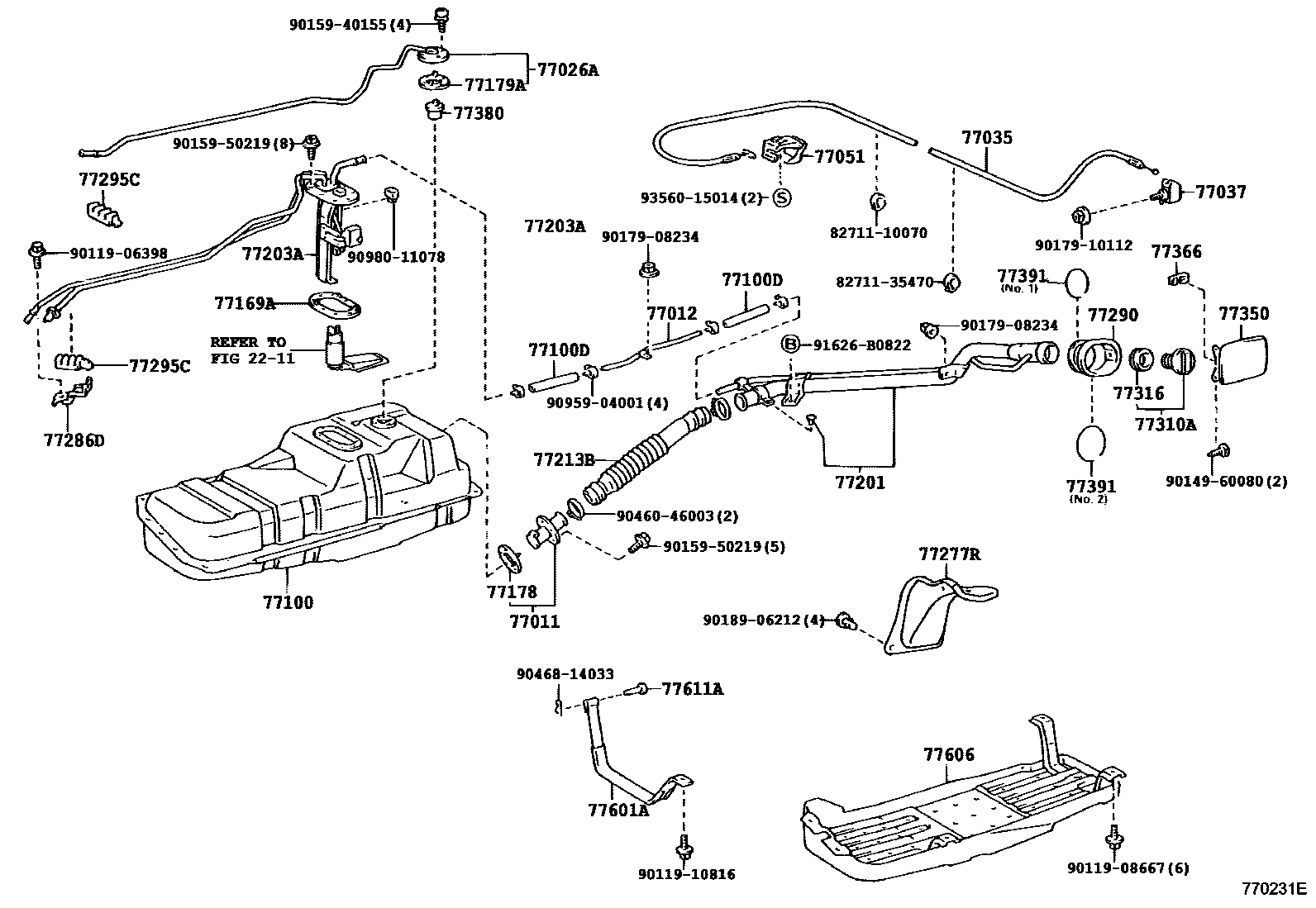

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1

2211

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-12130iRZN18#,VZN18#199511-200008

77012TUBE SUB-ASSY, FUEL TANK BREATHER

main77012-35020iRZN18#,VZN18#199511-200008

77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1

main77026-35090iRZN18#,VZN18#199511-200008

main77026-35120iVZN18#200008

NO.2:REFER TO ILLUSTRATION

main77026-35130iVZN18#200008

NO.1:REFER TO ILLUSTRATION

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-35090iRZN18#,VZN18#199511

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-12050iRZN18#,VZN18#199511

77051LEVER SUB-ASSY, FUEL LID OPEN

main77051-35010iRZN18#,VZN18#199511

77100TANK ASSY, FUEL

main77001-3D300iRZN18#,VZN18#199511-200008

main77001-3D480iVZN18#200008

77100DHOSE, FUEL, NO.1(FOR FUEL TANK)

main77279-35050iRZN18#,VZN18#199511-200008

L=170

77169AGASKET, FUEL SUCTION TUBE SET

main77169-60010iRZN18#,VZN18#199511

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-20030iRZN18#,VZN18#199511-200008

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-26010iRZN18#,VZN18#199511

sub77179-26011

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-35510iRZN18#,VZN18#199511-200008

main77201-35700iVZN18#200008

77203ATUBE SUB-ASSY, FUEL SUCTION

main77203-35460iRZN18#,VZN18#199511-200006

sub77203-35461

main77203-35461iRZN18#,VZN18#200006-200008

main77203-35660iVZN18#200008

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-35300iRZN18#,VZN18#199511-200008

L=368

main77213-35360iVZN18#200008

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-35010iRZN18#,VZN18#199511

77286DCLAMP, FUEL TUBE, NO.2

main77286-35030iRZN18#,VZN18#199511

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77291-35060iRZN18#,VZN18#199511

77295CGROMMET, FUEL TUBE

main77295-35140iRZN18#,VZN18#199511-200008

main77295-35260iVZN18#200008

77310ACAP ASSY, FUEL TANK

main77310-35080iRZN18#,VZN18#199511-199803

sub77310-12140

main77310-48020iRZN18#,VZN18#199803-200008

77316GASKET, FUEL TANK CAP

main77316-16010iRZN18#,VZN18#199511

77350LID ASSY, FUEL FILLER OPENING

main77350-35030iRZN18#,VZN18#199511-200008

main77350-35040iVZN18#200008

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-35010iRZN18#,VZN18#199511

77380VALVE ASSY, FUEL CUT OFF

main77380-26010iRZN18#,VZN18#199511

77391RING, FUEL INLET BOX

main77391-14020iRZN18#,VZN18#199511

NO.1

main77391-35010iRZN18#,VZN18#199511

NO.2

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-35060iRZN18#,VZN18#199511

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-35010iRZN18#,VZN18#199511-200008

sub77606-35050

main77606-35050iVZN18#200008

77611APIN (FOR FUEL TANK BAND)

main90240-08118iRZN18#,VZN18#199511

8271110070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-10070

8271135470WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-35470

9011906398

main90119-06398

9011908667

main90119-08667

9011910816

main90119-10816

9014960080

main90149-60080

9015940155

main90159-40155

9015950219

main90159-50219

9017908234

main90179-08234

9017910112

main90179-10112

9018906212

main90189-06212

9046046003

main90460-46003

9046814033

main90468-14033

9095904001

main90959-04001

9098011078

main90980-11078

91626B0822

main91626-B0822

9356015014

main93560-15014

45 parts on this diagram · 5 diagrams in section
