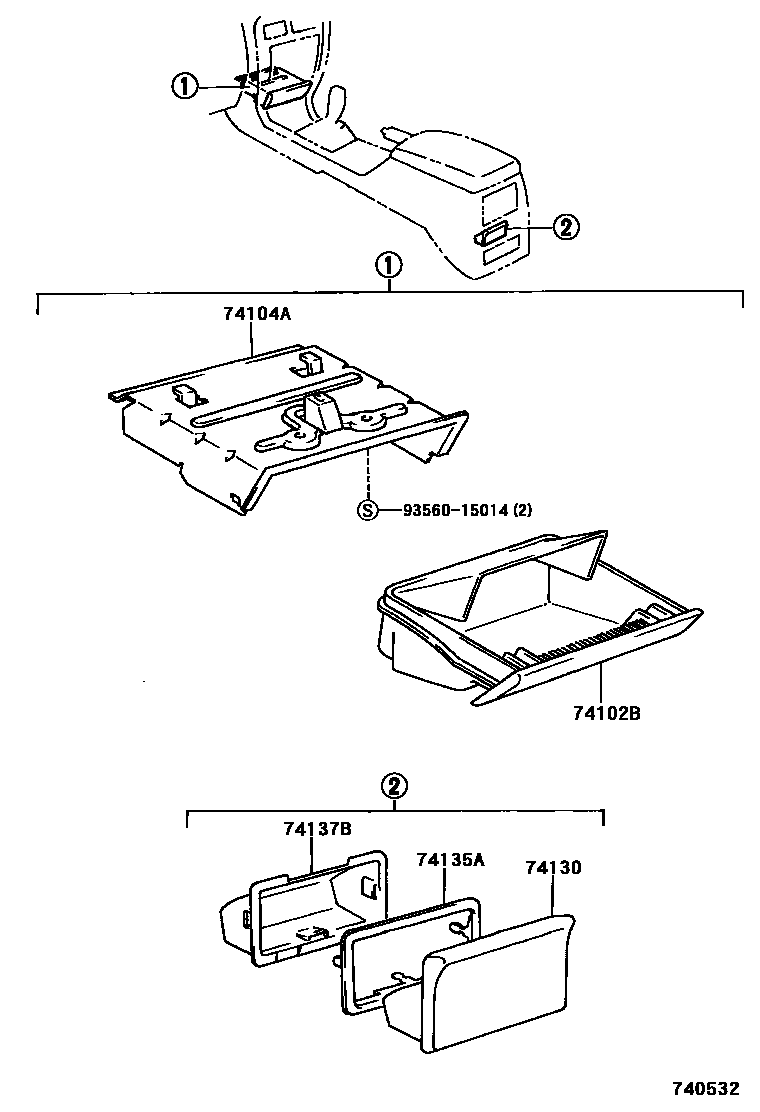

ASH RECEPTACLE

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-35010iRZN18#,VZN18#199511

74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE

main74104-89108iRZN18#,VZN18#199511

74130RECEPTACLE ASSY, REAR ASH

main74109-12020-B0iRZN18#,VZN18#..SR5B,SR5V199511-200008

MD.MOON MIST,TRIM1#

sub74109-20080

sub74109-12020

main74109-12020-B4iVZN18#..SR5B,SR5V200008

DK.CHARCOAL,TRIM1#

sub74109-20080

sub74109-12020

main74109-12020-E0iRZN18#,VZN18#199511

OAK,TRIM4#

sub74109-20080

sub74109-12020

74135ARETAINER, REAR ASH RECEPTACLE, NO.1

main74135-12020iRZN18#,VZN18#199807

sub74135-12040

74137BRETAINER, REAR ASH RECEPTACLE, INNER

main74137-12010iRZN18#,VZN18#199511

9356015014

main93560-15014

6 parts on this diagram · 1 diagram in section
