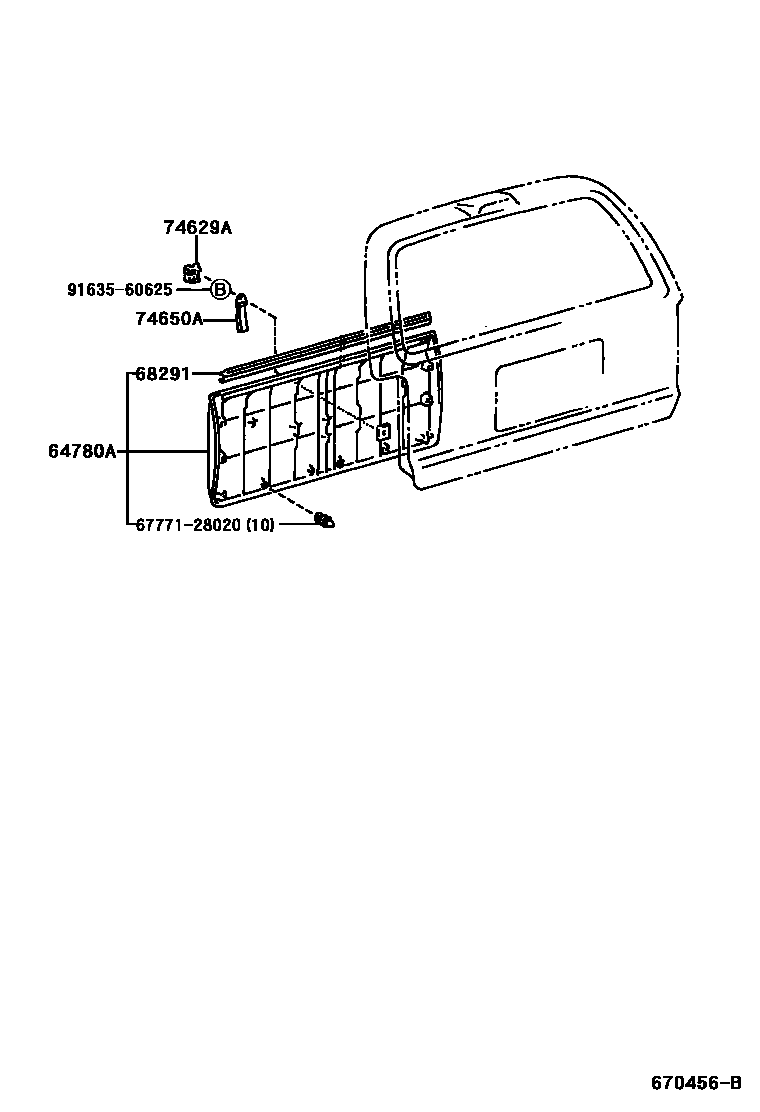

BACK DOOR PANEL & GLASS

0001 1 0002 1

64780APANEL ASSY, BACK DOOR TRIM

main64780-35010-B0iRZN18#,VZN18#..SR5B,SR5V199511-199807

MD.MOON MIST,TRIM1#

main64780-35010-B1iRZN18#,VZN18#..SR5B,SR5V199807-200008

MOON MIST,TRIM1#

main64780-35010-B2iVZN18#..SR5B,SR5V200008

MD.CHARCOAL,TRIM1#

main64780-35010-E0iRZN18#,VZN18#199511-199807

OAK,TRIM4#

main64780-35010-E1iRZN18#,VZN18#199807

MD.OAK,TRIM4#

68291WEATHERSTRIP, BACK DOOR GLASS

main68291-35010iRZN18#,VZN18#199511

74629ACOVER, ASSIST STRAP HOLE

main74629-35010-B0iRZN18#,VZN18#..SR5B,SR5V199511-199807

MD.MOON MIST,TRIM1#

sub74629-35010

main74629-35010-B1iRZN18#,VZN18#..SR5B,SR5V199807-200008

MOON MIST,TRIM1#

sub74629-35010

main74629-35010-B2iVZN18#..SR5B,SR5V200008

MD.CHARCOAL,TRIM1#

sub74629-35010

main74629-35010-E0iRZN18#,VZN18#199511-199807

OAK,TRIM4#

sub74629-35010

main74629-35010-E1iRZN18#,VZN18#199807

MD.OAK,TRIM4#

sub74629-35010

74650ASTRAP ASSY, ASSIST

main74650-35010-B0iRZN18#,VZN18#..SR5B,SR5V199511-200008

BLUISH GRAY,TRIM1#

sub74650-35010

main74650-35010-B1iVZN18#..SR5B,SR5V200008

GRAY,TRIM1#

sub74650-35010

main74650-35010-E0iRZN18#,VZN18#199511

OAK,TRIM4#

sub74650-35010

6777128020WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-28020

9163560625

main91635-60625

6 parts on this diagram · 2 diagrams in section
