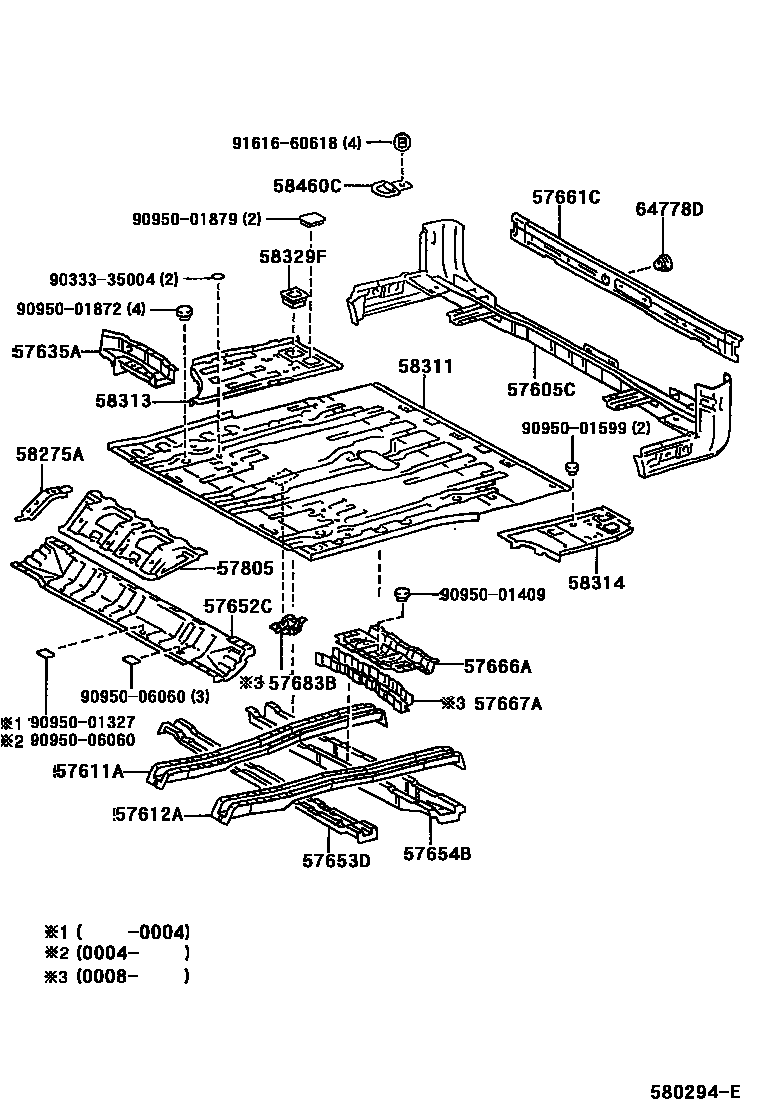

REAR FLOOR PANEL & REAR FLOOR MEMBER
57605CMEMBER SUB-ASSY, REAR FLOOR CROSS
W(MOON ROOF)
W(THIRD SEAT)
W(THIRD SEAT & MOON ROOF)
W(MOON ROOF)
W(THIRD SEAT)
W(THIRD SEAT & MOON ROOF)
57611AMEMBER, REAR FLOOR SIDE, RH
57635AREINFORCEMENT, REAR FLOOR SIDE MEMBER, REAR RH
W(3RD SEAT)
57652CMEMBER, REAR FLOOR CROSS, NO.1
57654BMEMBER, REAR FLOOR CROSS, NO.3
W(3RD SEAT)
57661CMEMBER, REAR FLOOR REAR CROSS, OUTER
57666AREINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.3
57667AREINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.4
57683BBRACKET, FUEL TANK MOUNTING, FRONT
58275ARETAINER, REAR SEATBACK TO CENTER FLOOR
58311PAN, REAR FLOOR
W(3RD SEAT)
58313PANEL, REAR FLOOR SIDE, RH
W(3RD SEAT)
58314PANEL, REAR FLOOR SIDE, LH
W(3RD SEAT)
58329FCOVER, REAR FLOOR SERVICE HOLE, NO.2
64778DPROTECTOR, SPARE WHEEL
9033335004
main90333-35004
9095001327
main90950-01327
9095001409
main90950-01409
9095001599
main90950-01599
9095001872
main90950-01872
9095001879
main90950-01879
9095006060
main90950-06060
9161660618
main91616-60618
27 parts on this diagram · 1 diagram in section
