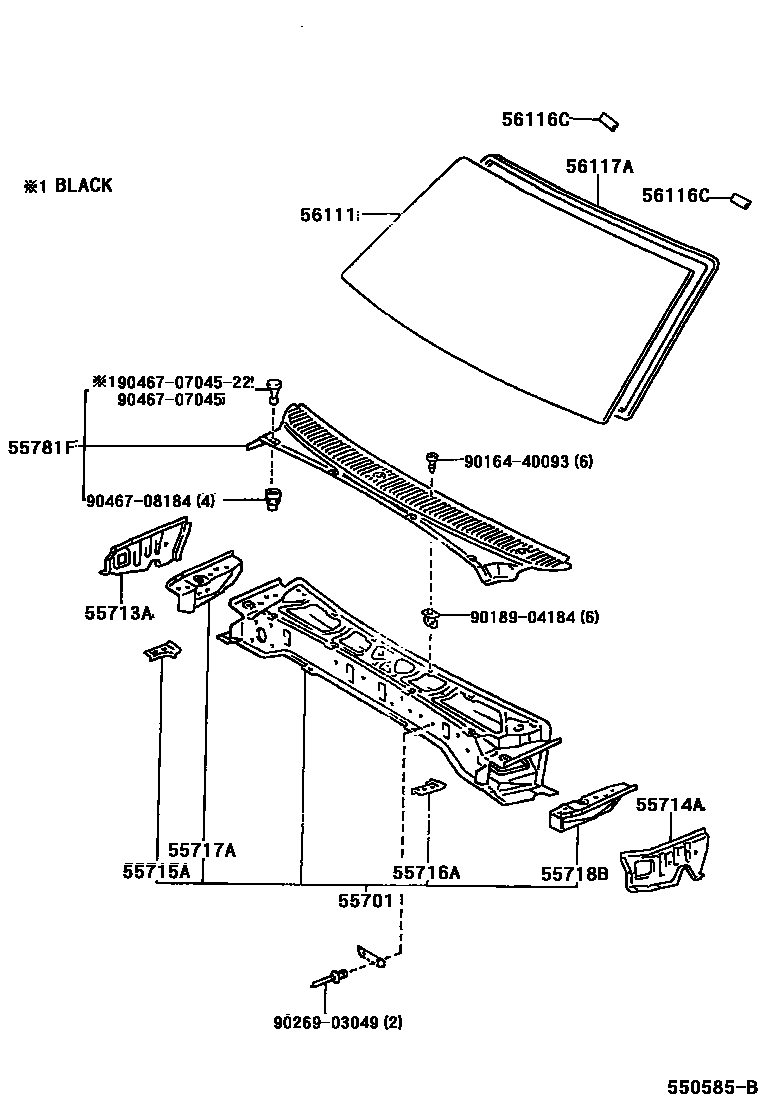

COWL PANEL & WINDSHIELD GLASS

55701PANEL SUB-ASSY, COWL

main55700-35160iRZN18#199511-199608

sub55700-35220

sub90950-01324

main55700-35170iVZN18#199511-199608

sub55700-35230

sub90950-01324

main55700-35220iRZN18#199608-200008

main55700-35230iVZN18#199608-200008

main55700-35530iVZN18#200008

55713APANEL, COWL TOP SIDE, RH

main55713-35011iRZN18#,VZN18#199511

55714APANEL, COWL TOP SIDE, LH

main55714-35011iRZN18#,VZN18#199511

55715ABRACE, COWL TOP TO APRON, RH

main55715-35010iRZN18#,VZN18#199511

55716ABRACE, COWL TOP TO APRON, LH

main55716-35010iRZN18#,VZN18#199511

55717APANEL, COWL TOP SIDE, INNER RH

main55717-35900iRZN18#,VZN18#199511

55718BPANEL, COWL TOP SIDE, INNER LH

main55718-35900iRZN18#,VZN18#199511

55781FLOUVER, COWL TOP VENTILATOR

main55708-35020iRZN18#,VZN18#199511

main55708-35060iRZN18#,VZN18#199806

COLD SPEC

56111GLASS, WINDSHIELD

main56111-35100iVZN18#199511-199807

*TL,T=4.76,BRONZE

main56111-35150iRZN18#,VZN18#199511-200008

*TL,T=4.76,GREEN

main56111-35160iRZN18#,VZN18#199511-199807

*TL,T=4.76,GREEN,W(TOP SHADE)

main56111-35160iVZN18#200008

*TL,T=4.76,GREEN

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56115-30100iRZN18#;VZN185..5F199901-200008

main56115-30100iVZN18#..4FC199901

PLANT NO. A51-A54

main56116-35040iRZN18#,VZN18#199511-199804

main56116-35050iRZN18#,VZN18#199901

PLANT NO. P11

main56116-35050iRZN18#,VZN18#199804-199901

56117ADAM, WINDOW GLASS ADHESIVE

main56117-35020iRZN18#,VZN18#199511-199907

L=604

main56117-35020iRZN18#,VZN18#199807-200008

L=3691

main56117-35080iRZN18#,VZN18#199907-200208

L=604

9016440093

main90164-40093

9018904184

main90189-04184

9026903049

main90269-03049

9046707045

main90467-07045

904670704522

main90467-0704522

9046708184

main90467-08184

17 parts on this diagram · 1 diagram in section
