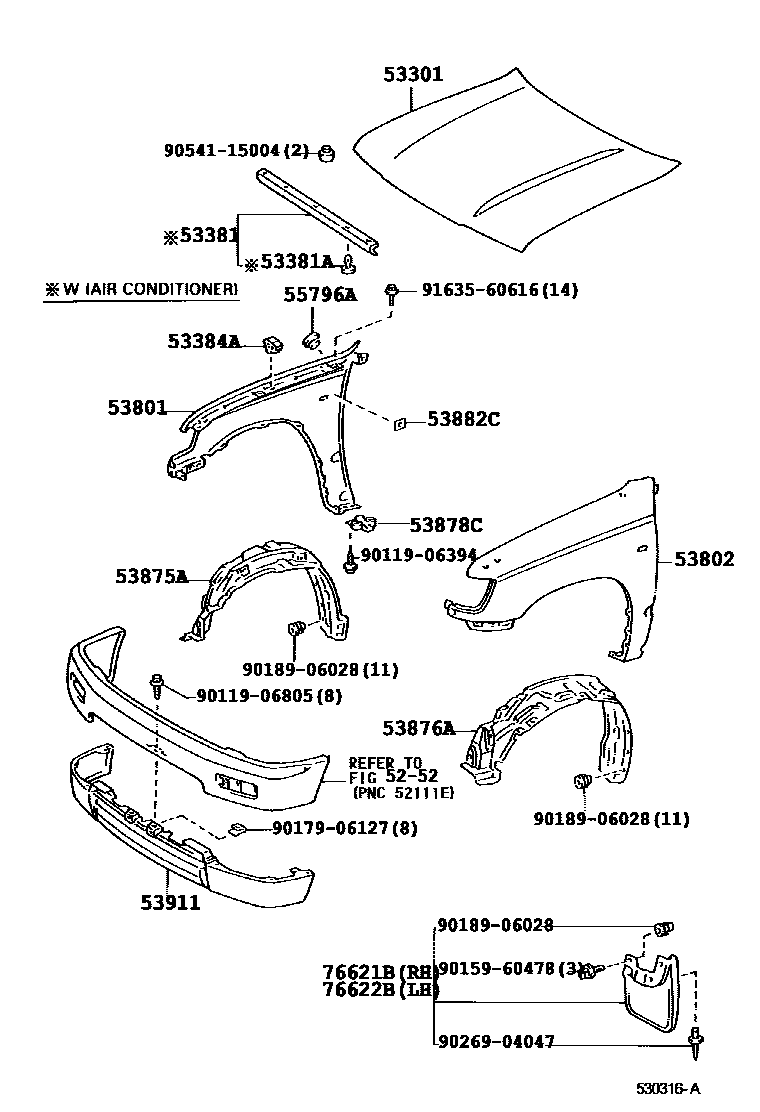

HOOD & FRONT FENDER

0001 1 0002 1 0003 1 0004 1

5252

53301HOOD SUB-ASSY

main53301-35040iRZN18#,VZN18#199511-200008

main53301-35050iVZN185..SR5B200107-200207

BADLANDS(CANADA)

main53301-35160iVZN18#200008-200208

main53301-35170iVZN18#..SR5V199807-200208

W(ENGINE HOOD BULGE)

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-35020iRZN18#,VZN18#199511

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iRZN18#,VZN18#199511

53384ABUMPER, FENDER TO HOOD

main53384-35010iRZN18#,VZN18#199511

53801FENDER SUB-ASSY, FRONT RH

main53801-35540iVZN18#..SR5B,SR5V200008-200208

main53801-35550iVZN18#..LULI,SR5V200008-200208

W(LARGE FENDER)

main53811-35080iVZN185..SR5B200107-200207

BADLANDS(CANADA)

sub53801-35550

main53811-35080iVZN18#..LULI199511-199906

sub53801-35550

main53811-35080iVZN18#199906-200008

W(LARGE FENDER)

sub53801-35550

main53811-35090iRZN18#,VZN18#..SR5B,SR5V199511-200008

sub53801-35540

53802FENDER SUB-ASSY, FRONT LH

main53802-35630iVZN18#..SR5B,SR5V200008-200208

main53802-35640iVZN18#..LULI,SR5V200008-200208

W(LARGE FENDER)

main53812-35090iVZN18#..SR5V199906-200008

W(LARGE FENDER)

sub53802-35640

main53812-35090iVZN185..SR5B200107-200207

BADLANDS(CANADA)

sub53802-35640

main53812-35090iVZN18#..LULI199511-200208

sub53802-35640

main53812-35100iRZN18#,VZN18#..SR5B,SR5V199511-200008

sub53802-35630

53875ALINER, FRONT FENDER, RH

main53875-35020iRZN18#,VZN18#199511-199807

main53875-35050iRZN18#,VZN18#199807

53876ALINER, FRONT FENDER, LH

main53876-35010iRZN18#,VZN18#199511-199807

main53876-35040iRZN18#,VZN18#199807

53878CSPACER, FRONT FENDER

main53878-35020iRZN18#,VZN18#199511

53882CSEAL, FRONT FENDER MAIN

main53882-16030iRZN18#,VZN18#199511-199910

53911PANEL, FRONT VALANCE

main53911-35120iRZN18#,VZN18#..SR5B,SR5V199511-199807

NO PAINT REQ.

sub53911-35909

main53911-35130iVZN18#..LULI199511-199807

NO PAINT REQ.

sub53911-35910

main53911-35140iVZN18#..LULI199711-199712

NO PAINT REQ.,40TH ANNIVERSARY PACKAGE

main53911-35180-B0iVZN18#..LULI199608-199807

FULL COLOR,WARM GRAY PEARC ME,TRIM4#&1A5

main53911-35180-D0iVZN18#..LULI199608-199708

FULL COLOR,RED MM,3K4

main53911-35300iRZN18#,VZN18#..SR5B,SR5V199807-200208

NO PAINT REQ.

sub53911-35911

main53911-35330-B0iVZN18#..SR5V199906-200008

SILVER ME.,1C0

main53911-35330-B0iVZN18#..SR5V200008-200107

SILVER ME.,K73 ,1C0

main53911-35330-C0iVZN18#..SR5V200008-200208

BLACK,KA3 ,202

main53911-35330-C0iVZN18#..SR5V199906-200008

BLACK,056 ,1A5 ,1C0 ,202 ,3K4 ,3L5 ,6Q7 ,8L7 ,8N1

main53911-35330-D0iVZN18#..SR5V200107-200208

RED MM,KH6 ,3K4

main53911-35330-G0iVZN18#..SR5V200008-200107

DK. GREEN MC.,K79 ,6Q7

main53911-35330-G0iVZN18#..SR5V199906-200008

DK. GREEN MC.,6Q7

main53911-35330-J0iVZN18#..SR5V200107-200208

DK.BLUE M.M.,KH7 ,8L7

main53911-35350iVZN18#..LULI200008-200208

NO PAINT REQ.

sub53911-35912

main53911-35350iVZN18#..SR5V199906-200208

NO PAINT REQ.,W(LARGE FENDER)

sub53911-35912

main53911-35350iVZN185..SR5B200107-200207

NO PAINT REQ.,BADLANDS(CANADA)

sub53911-35912

main53911-35908iVZN18#..LULI199807-200008

NO PAINT REQ.

sub53911-35350

55796ACOVER, RADIO ANTENNA HOLE

main55796-89102iRZN18#,VZN18#..SR5B199511

76621BMUDGUARD, FRONT BODY, RH

main76621-39395iRZN18#,VZN18#..SR5B,SR5V199511

76622BMUDGUARD, FRONT BODY, LH

main76622-39395iRZN18#,VZN18#..SR5B,SR5V199511

9011906394

main90119-06394

9011906805

main90119-06805

9015960478

main90159-60478

9017906127

main90179-06127

9018906028

main90189-06028

9026904047

main90269-04047

9054115004

main90541-15004

9163560616

main91635-60616

23 parts on this diagram · 4 diagrams in section
