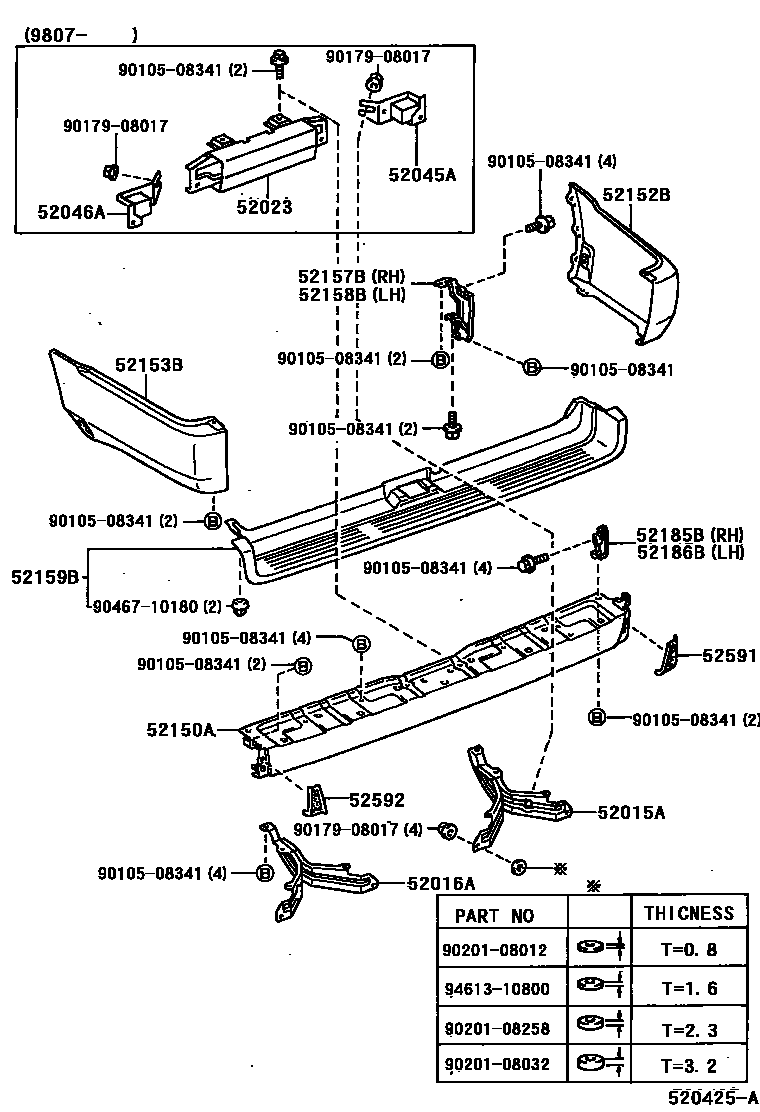

REAR BUMPER & BUMPER STAY

52015AARM SUB-ASSY, REAR BUMPER, RH

main52015-35010iRZN18#,VZN18#¥8,400199511-199807

main52015-35020iRZN18#,VZN18#¥8,400199807

52016AARM SUB-ASSY, REAR BUMPER, LH

main52016-35010iRZN18#,VZN18#¥8,400199511-199807

main52016-35020iRZN18#,VZN18#¥8,400199807

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-35020iRZN18#,VZN18#¥12,500199807

52045APROTECTOR SUB-ASSY, REAR BUMPER, RH

main52045-35010iRZN18#,VZN18#¥2,830199807

52046APROTECTOR SUB-ASSY, REAR BUMPER, LH

main52046-35010iRZN18#,VZN18#¥2,830199807

52150ABUMPER ASSY, REAR

main52105-35120iVZN18#..SR5V¥40,500199511-199807

DARK GRAY

sub52105-35920

main52105-35120iRZN18#¥40,500199511-199807

sub52105-35920

main52105-35130iVZN18#¥44,500199511-199807

main52105-35140iVZN18#..LULI¥40,500199711-199712

40TH ANNIVERSARY PACKAGE

sub52105-35921¥24,400

main52105-35170-B0iVZN185..LULI199708-199807

WARM GRAY PEARL ME.,1A5

main52105-35260iRZN18#,VZN18#..SR5B,SR5V¥44,700199807-200208

CHROME PLATED

main52105-35360iVZN18#..SR5B,SR5V¥44,700200205-200208

CHROME PLATED & W(THEFT-DETERRENT LABEL)

main52105-35903iVZN18#..LULI,SR5V¥28,300199807-200205

main52105-35915iVZN18#..LULI,SR5V¥28,300200205-200208

52152BEXTENSION, REAR BUMPER, RH

main52106-35050iRZN18#¥25,500199511-199601

DARK GRAY

sub52106-35051¥25,500

main52106-35051iVZN18#..SR5V¥25,500199601-199807

DARK GRAY

sub52106-35150¥25,700

main52106-35051iRZN18#¥25,500199601-199807

sub52106-35150¥25,700

main52106-35060iVZN18#..SR5V¥27,900199511-199601

sub52106-35061¥28,100

main52106-35061iRZN18#,VZN18#..SR5B,SR5V¥28,100199807

W(CHROME PLATED BUMPER)

main52106-35061iVZN18#..SR5V¥28,100199601-199807

main52106-35071iVZN18#..LULI¥25,500199711-199712

40TH ANNIVERSARY PACKAGE

sub52106-35120¥25,800

main52106-35080iVZN185..LULI¥27,900199511-199601

sub52106-35081¥28,100

main52106-35081iVZN18#..SR5V¥28,100199906

W(OVER FENDER & CHROME PLATED BUMPER)

main52106-35081iVZN18#..LULI¥28,100199601-199807

main52106-35900iVZN18#..SR5V¥15,700200008

main52106-35900iVZN18#..SR5V¥15,700199807-200008

SPORTS PACKAGE

main52106-35901iVZN18#..SR5V¥15,700200008

W(OVER FENDER)

main52106-35901iVZN18#..SR5V¥15,700199906-200008

SPORTS PACKAGE & W(LARGE FENDER)

main52106-35901iVZN18#..LULI¥15,700199807

52153BEXTENSION, REAR BUMPER, LH

main52107-35040iRZN18#¥25,500199511-199601

DARK GRAY

sub52107-35041¥25,500

main52107-35041iRZN18#¥25,500199601-199807

sub52107-35140¥25,700

main52107-35041iVZN18#..SR5V¥25,500199601-199807

DARK GRAY

sub52107-35140¥25,700

main52107-35050iVZN18#..SR5V¥27,900199511-199601

sub52107-35051¥28,100

main52107-35051iVZN18#..SR5V¥28,100199601-199807

main52107-35051iRZN18#,VZN18#..SR5B,SR5V¥28,100199807

W(CHROME PLATED BUMPER)

main52107-35061iVZN18#..LULI¥25,500199711-199712

40TH ANNIVERSARY PACKAGE

sub52107-35110¥25,800

main52107-35070iVZN185..LULI¥27,900199511-199601

sub52107-35071¥28,100

main52107-35071iVZN18#..LULI¥28,100199601-199807

main52107-35071iVZN18#..SR5V¥28,100199906

W(OVER FENDER & CHROME PLATED BUMPER)

main52107-35900iVZN18#..SR5V¥15,700200008

main52107-35900iVZN18#..SR5V¥15,700199807-200008

SPORTS PACKAGE

main52107-35901iVZN18#..SR5V¥15,700199906-200008

SPORTS PACKAGE & W(LARGE FENDER)

main52107-35901iVZN18#..SR5V¥15,700200008

W(OVER FENDER)

main52107-35901iVZN18#..LULI¥15,700199807

52157BSTAY, REAR BUMPER SIDE, NO.2 RH

main52093-35010iRZN18#,VZN18#¥2,260199511

52158BSTAY, REAR BUMPER SIDE, NO.2 LH

main52094-35010iRZN18#,VZN18#¥2,260199511

52159BPLATE, REAR BUMPER

main52159-35010iRZN18#,VZN18#¥13,700199511-199601

sub52159-35011¥14,400

main52159-35011iRZN18#,VZN18#¥14,400199601-199807

sub52159-35040¥13,700

main52159-35040iRZN18#,VZN18#¥13,700199807

52185BBRACKET, REAR BUMPER SIDE MOUNTING, RH

main52185-35010iRZN18#,VZN18#¥1,260199511

52186BBRACKET, REAR BUMPER SIDE MOUNTING, LH

main52186-35010iRZN18#,VZN18#¥1,260199511

52591SEAL, REAR BUMPER SIDE, RH

main52591-35010iRZN18#,VZN18#¥740199511

52592SEAL, REAR BUMPER SIDE, LH

main52592-35010iRZN18#,VZN18#¥740199511

9010508341

main90105-08341¥130

9017908017

main90179-08017¥190

9020108012

main90201-08012¥120

9020108032

main90201-08032¥180

9020108258

main90201-08258¥250

9046710180

main90467-10180¥120

9461310800

main94613-10800¥90

22 parts on this diagram · 1 diagram in section
