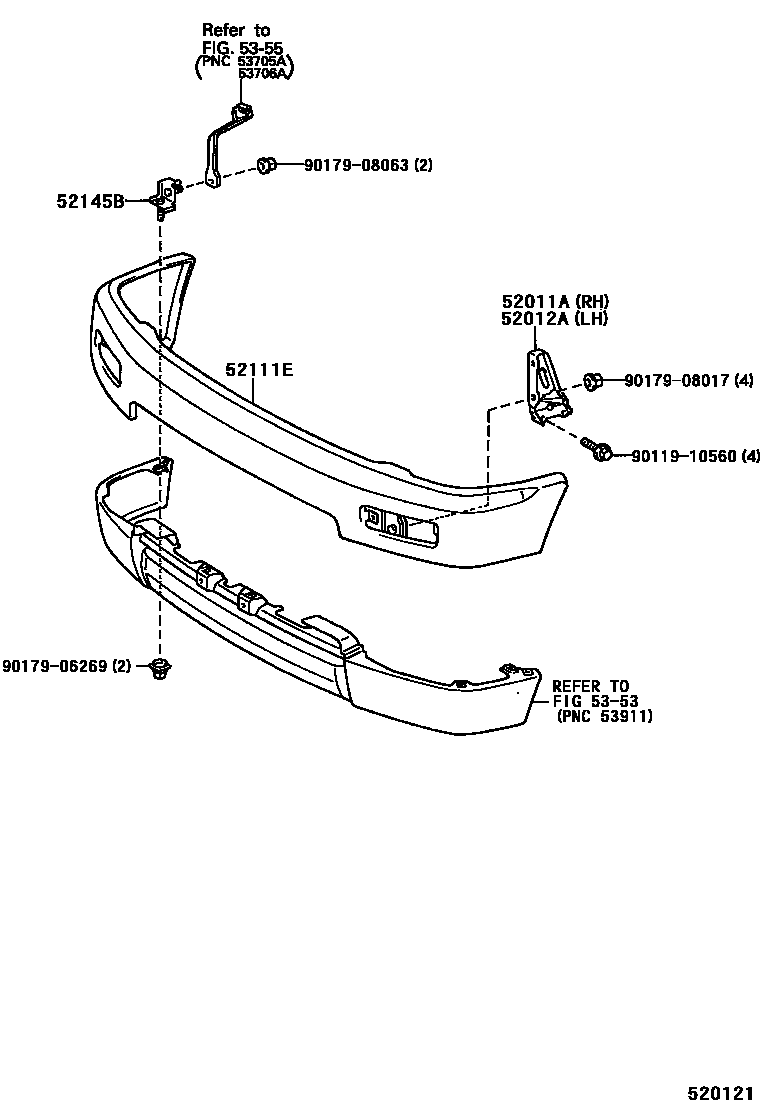

FRONT BUMPER & BUMPER STAY

0001 1 0002 140TH ANNIVERSARY PACKAGE 0003 1

52011AARM SUB-ASSY, FRONT BUMPER, RH

main52011-35070iRZN18#,VZN18#199807

main52141-35050iRZN18#,VZN18#199511-199807

52012AARM SUB-ASSY, FRONT BUMPER, LH

main52012-35070iRZN18#,VZN18#199807

main52142-35050iRZN18#,VZN18#199511-199807

52111EBAR, FRONT BUMPER

main52101-35290iVZN18#..SR5V199511-199807

NO PAINT REQ.

sub52101-35929

main52101-35290iRZN18#199511-199807

NO PAINT REQ.,DARK GRAY

sub52101-35929

main52101-35300iVZN18#..SR5V199511-199807

PLATED

main52101-35320iVZN18#..LULI199511-199807

PLATED

main52101-35330iVZN18#..LULI199711-199712

NO PAINT REQ.,40TH ANNIVERSARY PACKAGE

main52101-35530iRZN18#,VZN18#..SR5B,SR5V199807-200208

PLATED

main52101-35590iVZN18#..SR5V199906-200208

PLATED,W(LARGE FENDER)

main52101-35660iVZN18#..SR5B,SR5V200205-200208

PLATED,W(THEFT-DETERRENT LABEL)

main52101-35680iVZN18#..SR5V200205-200208

PLATED,W(LARGE FENDER & THEFT-DETERRENT LABEL)

main52101-35919iVZN18#..SR5V199807-200205

PAINT REQ.

sub52101-35926

main52101-35920iVZN185..SR5B199807-200207

PAINT REQ.,W(LARGE FENDER)

sub52101-35927

main52101-35926iVZN18#..SR5V200205-200208

PAINT REQ.

main52101-35927iVZN18#..LULI,SR5V200205-200208

PAINT REQ.,W(LARGE FENDER)

52145BBRACKET, FRONT BUMPER SIDE MOUNTING

main52145-35030iRZN18#,VZN18#199511-199807

RH

main52145-35040iRZN18#,VZN18#199807

RH

main52146-35030iRZN18#,VZN18#199511-199807

LH

main52146-35040iRZN18#,VZN18#199807

LH

5353

9011910560

main90119-10560

9017906269

main90179-06269

9017908017

main90179-08017

9017908063

main90179-08063

9 parts on this diagram · 3 diagrams in section
