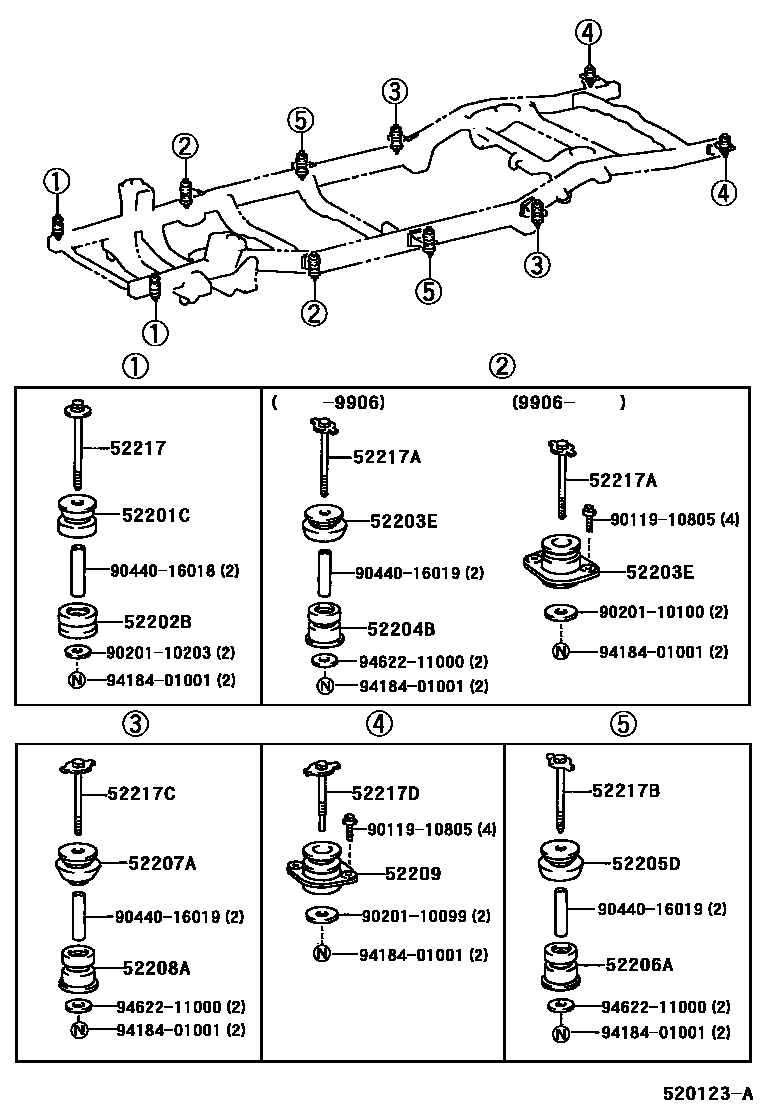

CAB MOUNTING & BODY MOUNTING

52201CCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 UPPER

main52201-35090iRZN18#,VZN18#199511

52202BCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 LOWER

main52202-35080iRZN18#,VZN18#199511

52203ECUSHION SUB-ASSY, CAB MOUNTING, NO.2

main52203-35200iRZN18#,VZN18#199511-199906

main52203-35250iRZN18#,VZN18#199906

52204BCUSHION SUB-ASSY, CAB MOUNTING, NO.2 LOWER

main52204-35110iRZN18#,VZN18#199511-199906

52205DCUSHION SUB-ASSY, CAB MOUNTING, NO.3 UPPER

main52213-35010iRZN18#,VZN18#199608-199704

main52213-35011iRZN18#,VZN18#199704

52206ACUSHION SUB-ASSY, CAB MOUNTING, NO.3 LOWER

main52206-35030iRZN18#,VZN18#199608

52207ACUSHION SUB-ASSY, CAB MOUNTING, NO.4 UPPER

main52207-35040iRZN18#,VZN18#199511-199708

main52207-60060iRZN18#,VZN18#199708

52208ACUSHION SUB-ASSY, CAB MOUNTING, NO.4 LOWER

main52208-35040iRZN18#,VZN18#199511-199708

sub52208-35041

main52208-60031iRZN18#,VZN18#199708

52209CUSHION SUB-ASSY, REAR END BODY MOUNTING, UPPER

main52209-35010iRZN18#,VZN18#199511-199906

main52209-35011iRZN18#,VZN18#199906

52217BOLT, BODY MOUNTING

main52217-35040iRZN18#,VZN18#199511

52217ABOLT, BODY MOUNTING

main52217-35050iRZN18#,VZN18#199511-199704

sub52217-35100

main52217-35100iRZN18#,VZN18#199704-199906

main52217-35110iRZN18#,VZN18#199906

52217BBOLT, BODY MOUNTING

main52217-35050iRZN18#,VZN18#199608-199611

sub52217-35100

main52217-35100iRZN18#,VZN18#199611

52217CBOLT, BODY MOUNTING

main52217-35050iRZN18#,VZN18#199511-199704

sub52217-35100

main52217-35100iRZN18#,VZN18#199704

52217DBOLT, BODY MOUNTING

main52217-35030iRZN18#,VZN18#199511-200008

9011910805

main90119-10805

9020110099

main90201-10099

9020110100

main90201-10100

9020110203

main90201-10203

9044016018

main90440-16018

9044016019

main90440-16019

9418401001

main94184-01001

9462211000

main94622-11000

22 parts on this diagram · 1 diagram in section
