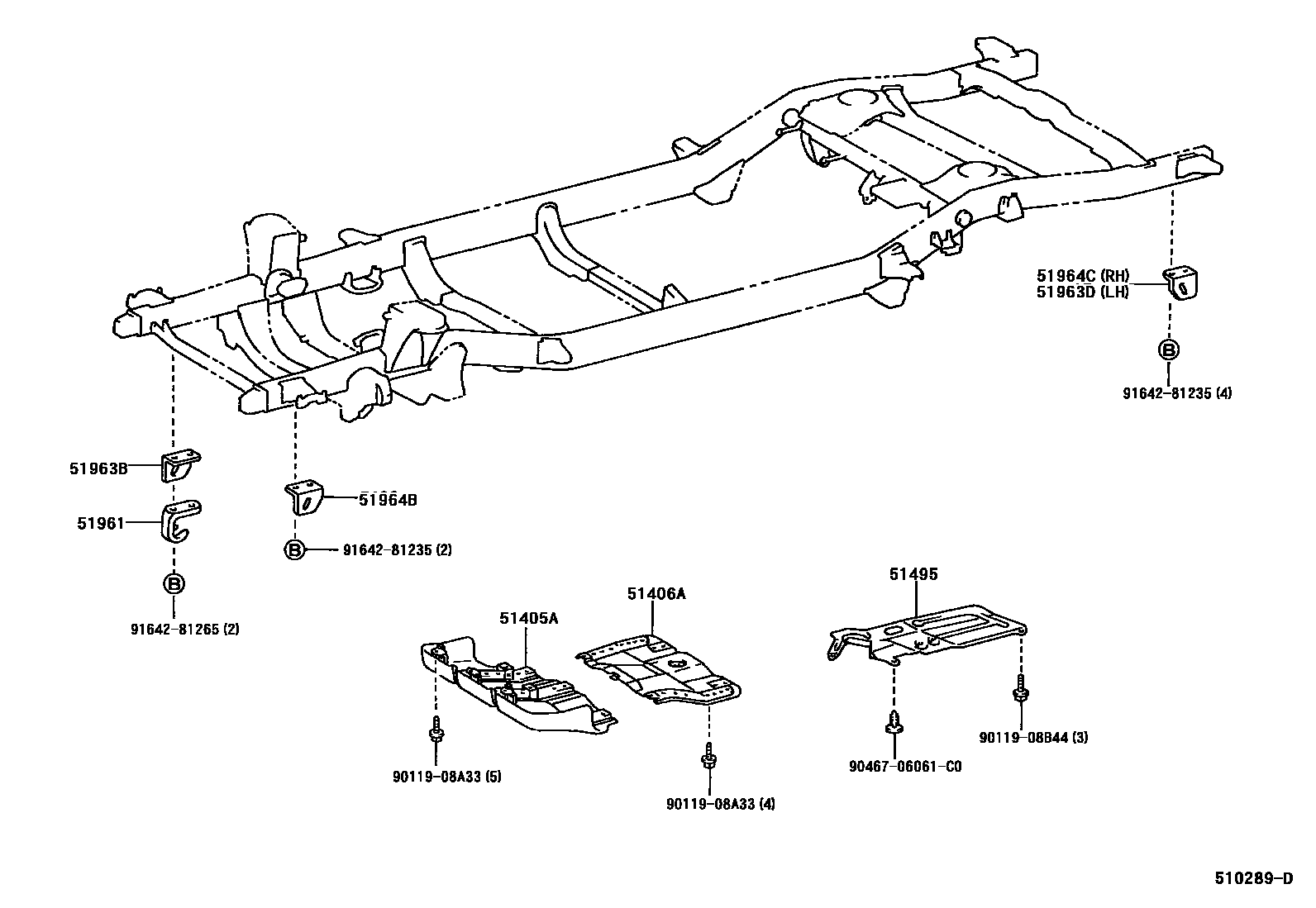

SUSPENSION CROSSMEMBER & UNDER COVER

51405ACOVER SUB-ASSY, ENGINE UNDER, NO.1

main51405-35070iRZN18#,VZN18#199511-199807

sub51405-35071

main51405-35071iRZN18#,VZN18#199807

51406ACOVER SUB-ASSY, ENGINE UNDER, NO.2

main51406-35010iRZN18#,VZN18#199511

51495COVER, TRANSMISSION UNDER

main51495-35010iRZN185,VZN185..4FC199708

51961HOOK, NO.1

main51961-35050iRZN18#,VZN18#199511-199709

sub51961-35051

main51961-35051iRZN18#,VZN18#199709-200208

51963BHOOK, TRANSPORT, FRONT RH

main51963-35070iRZN18#,VZN18#199511-200208

51963DHOOK, TRANSPORT, REAR LH

main51964-35060iRZN18#,VZN18#199511-200208

51964BHOOK, TRANSPORT, FRONT LH

main51964-35050iRZN18#,VZN18#199511-200208

51964CHOOK, TRANSPORT, REAR LH

main51963-35090iRZN18#,VZN18#199511-200208

9011908A33

main90119-08A33

9011908B44

main90119-08B44

9046706061C0

main90467-06061C0

9164281235

main91642-81235

9164281265

main91642-81265

13 parts on this diagram · 1 diagram in section
