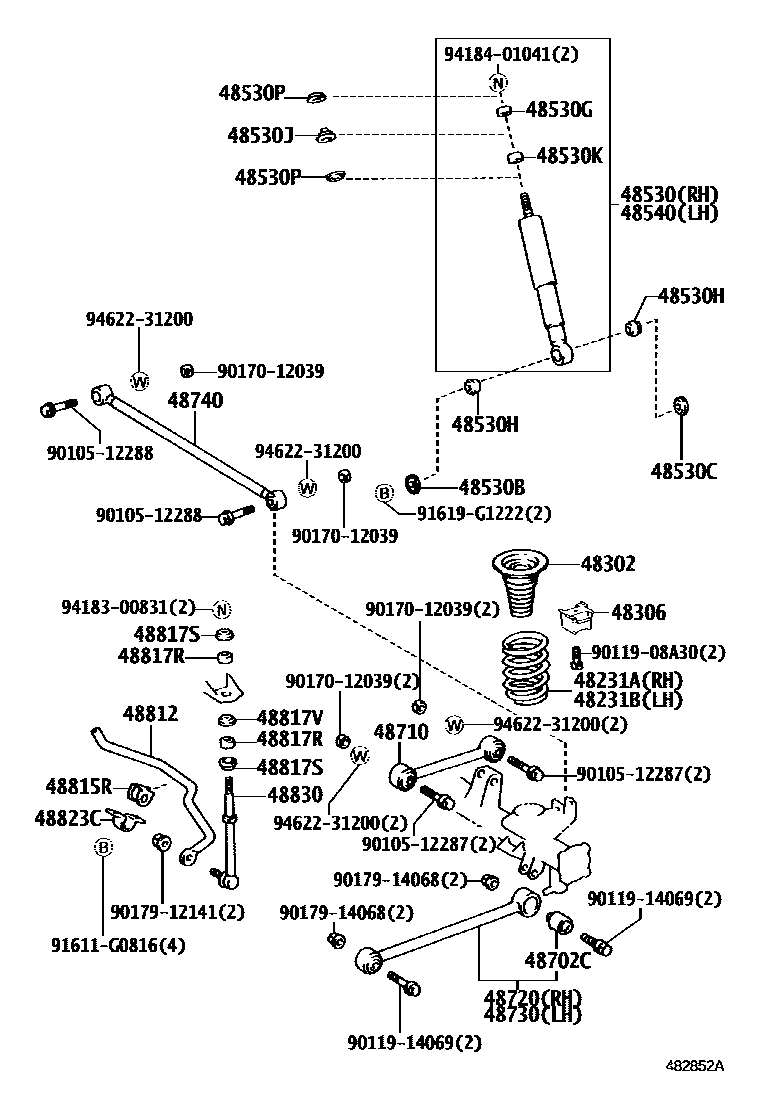

REAR SPRING & SHOCK ABSORBER
48231ASPRING, COIL, REAR RH
W(265/70R16 TIRE)
W(265/70R16 TIRE)
W(265/70R16 TIRE)
W(265/70R16 TIRE)
48231BSPRING, COIL, REAR LH
W(265/70R16 TIRE)
W(265/70R16 TIRE)
W(265/70R16 TIRE)
W(265/70R16 TIRE)
48302SPRING SUB-ASSY, HOLLOW
W(265/70R16 TIRE)
48306BUMPER SUB-ASSY, REAR SPRING
W(265/70R16 TIRE)
48530ABSORBER ASSY, SHOCK, REAR RH
sub48531-80526
sub48531-80528
sub48531-80691
sub48531-80690
sub48531-80692
sub48531-80688
sub48531-80198
MARK 48531-3D011,W(265/70R16 TIRE)
MARK 48531-3D011
W(265/70R16 TIRE)
MARK 48531-3D130
48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1
48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2
48530GCUSHION, REAR SHOCK ABSORBER, NO.1
48530HBUSH, REAR SHOCK ABSORBER
48530JRETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER)
48530KCUSHION, REAR SHOCK ABSORBER, NO.2
48530PRETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER)
48540ABSORBER ASSY, SHOCK, REAR LH
sub48531-80526
sub48531-80528
sub48531-80691
sub48531-80690
sub48531-80692
sub48531-80688
sub48531-80198
MARK 48531-3D011,W(265/70R16 TIRE)
MARK 48531-3D011
W(265/70R16 TIRE)
MARK 48531-3D130
48702CBUSH SUB-ASSY, LOWER CONTROL ARM
48740ROD ASSY, REAR LATERAL CONTROL
W(ABS)
48812BAR, STABILIZER, REAR
48815RBUSH, STABILIZER(FOR REAR)
48817RCUSHION, STABILIZER(FOR REAR)
48817SRETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)
48817VRETAINER, CUSHION, NO.2(FOR STABILIZER REAR BAR)
48823CCOVER, REAR STABILIZER BRACKET
48830LINK ASSY, REAR STABILIZER
9010512287
main90105-12287
9010512288
main90105-12288
9011908A30
main90119-08A30
9011914069
main90119-14069
9017012039
main90170-12039
9017912141
main90179-12141
9017914068
main90179-14068
91611G0816
main91611-G0816
91619G1222
main91619-G1222
9418300831
main94183-00831
9418401041
main94184-01041
9462231200
main94622-31200
37 parts on this diagram · 1 diagram in section
