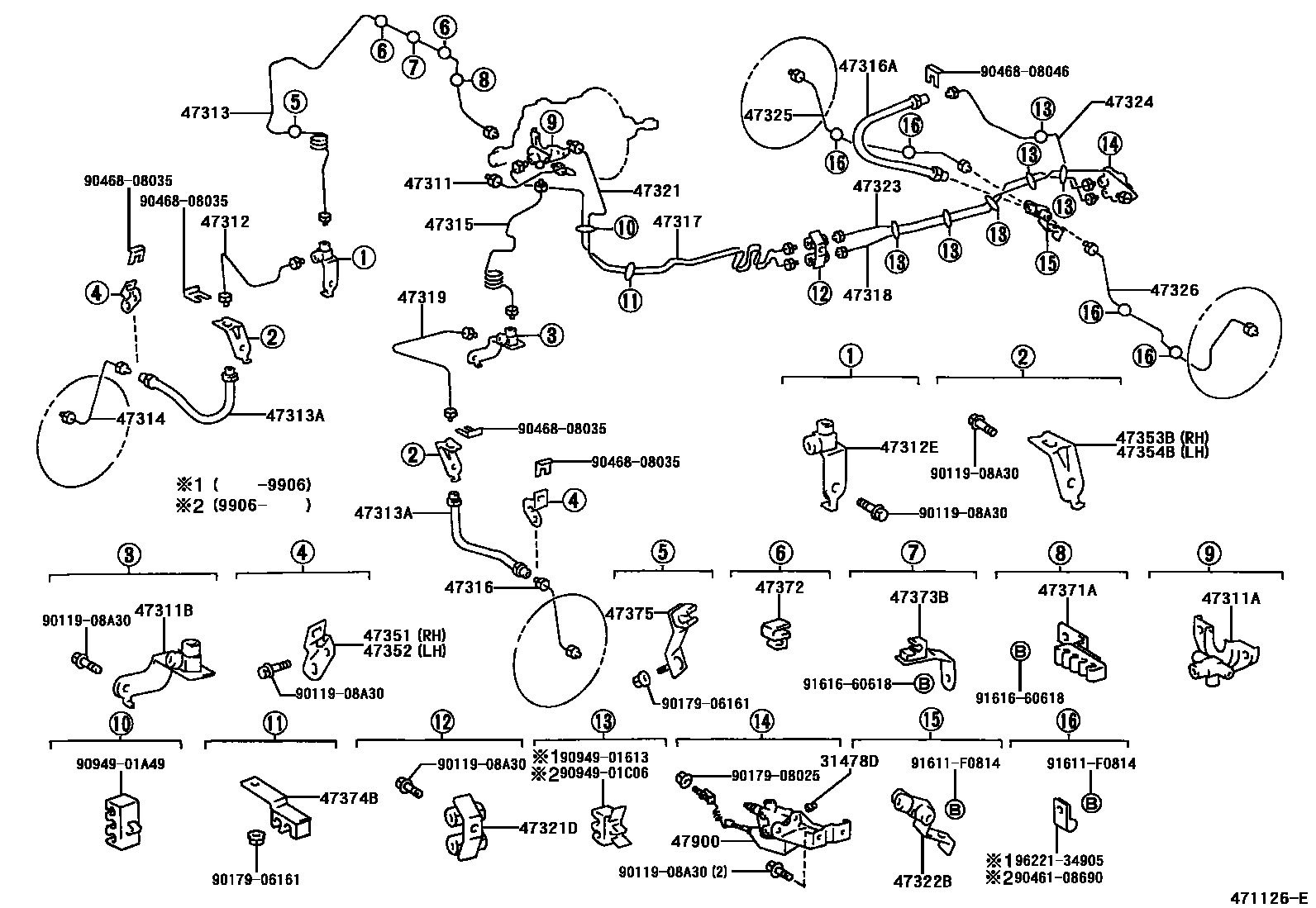

BRAKE TUBE & CLAMP
31478DCAP, BLEEDER PLUG(FOR LSPV)
47311TUBE, FRONT BRAKE, NO.1
W(ABS)
47311AWAY(FOR FRONT BRAKE TUBE)
47311BWAY, NO.1(FOR FRONT BRAKE TUBE)
47312TUBE, FRONT BRAKE, NO.2
47312EWAY, NO.2(FOR FRONT BRAKE TUBE)
47313TUBE, FRONT BRAKE, NO.3
W(ABS)
47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)
47314TUBE, FRONT BRAKE, NO.4
47315TUBE, FRONT BRAKE, NO.5
W(ABS)
47316TUBE, FRONT BRAKE, NO.6
47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
47317TUBE, FRONT BRAKE, NO.7
47318TUBE, FRONT BRAKE, NO.8
47319TUBE, FRONT BRAKE, NO.9
47321TUBE, REAR BRAKE, NO.1
W(ABS)
47321DWAY, NO.1(FOR REAR BRAKE TUBE)
W(ABS)
47322TUBE, REAR BRAKE, NO.2
47322BWAY, NO.2(FOR REAR BRAKE TUBE)
47323TUBE, REAR BRAKE, NO.3
W(ABS)
W(ABS)
47324TUBE, REAR BRAKE, NO.4
47325TUBE, REAR BRAKE, NO.5
W(265/70R16 TIRE)
W(265/70R16 TIRE)
W(265/75R15 TIRE)
47326TUBE, REAR BRAKE, NO.6
W(265/70R16 TIRE)
W(265/70R16 TIRE)
W(265/75R15 TIRE)
47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47353BRACKET, FLEXIBLE HOSE(FOR REAR)
47353BBRACKET, FLEXIBLE HOSE, NO.3
47354BBRACKET, FLEXIBLE HOSE, NO.4
47371ACLAMP, BRAKE TUBE, NO.1
W(265/70R16 7J TIRE)
47372CLAMP, BRAKE TUBE, NO.2
W(ABS)
47373BCLAMP, BRAKE TUBE, NO.3
W(ABS)
47374BCLAMP, BRAKE TUBE, NO.4
47375CLAMP, BRAKE TUBE, NO.5
9011908A30
9017906161
9017908025
9046108690
9046808035
9046808046
9094901613
9094901A49
9094901C06
91611F0814
9161660618
9622134905
46 parts on this diagram · 4 diagrams in section
