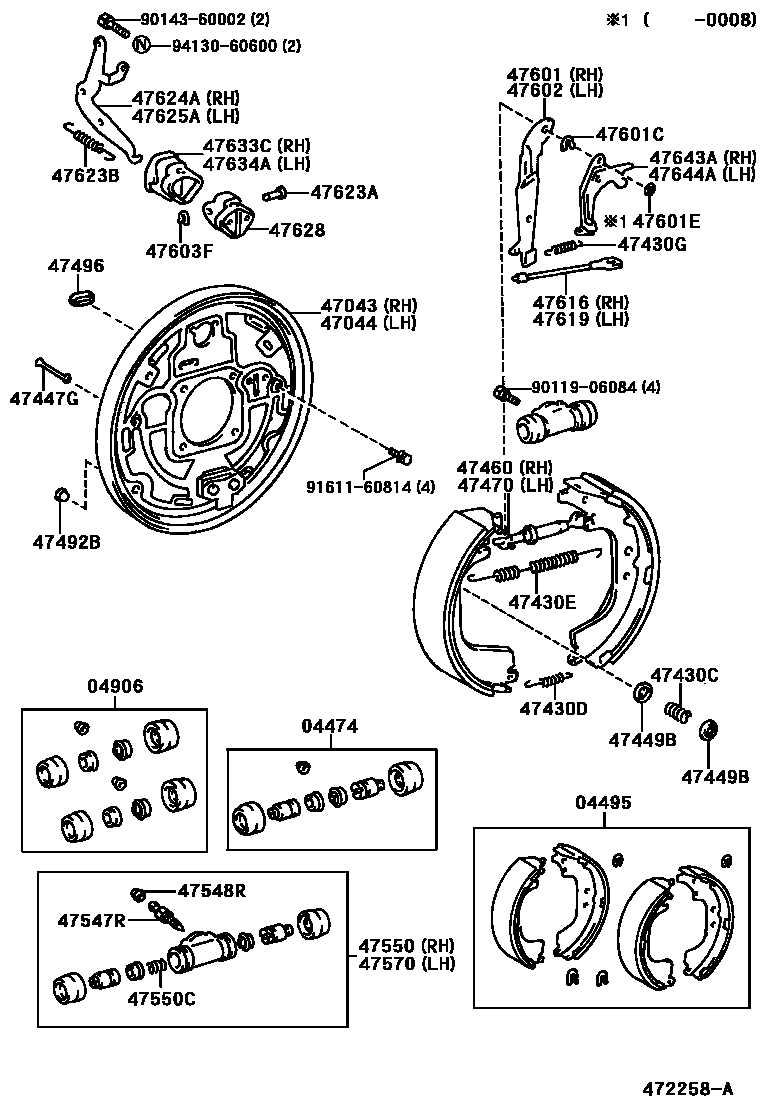

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE
04474CYLINDER KIT, REAR WHEEL
W(265/70R16 TIRE)
W(265/70R16 TIRE)
04906CUP KIT, REAR WHEEL CYLINDER
W(265/70R16 TIRE)
W(265/70R16 TIRE)
47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH
47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH
47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)
47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
RH
LH
47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)
47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47460ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)
47470ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)
47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)
47496PLUG, HOLE(FOR REAR BRAKE)
47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)
47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)
47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)
W(265/70R16 TIRE)
W(265/70R16 TIRE)
47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)
47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)
W(265/70R16 TIRE)
W(265/70R16 TIRE)
47601CWASHER, C(FOR REAR BRAKE)
T=1.6
47601ERING, E(FOR REAR BRAKE)
47603FWASHER, TYPE C(FOR PARKING BRAKE BELL CRANK)
47616WIRE, PARKING BRAKE, RH
47619WIRE, PARKING BRAKE, LH
47623APIN(FOR PARKING BRAKE BELL CRANK)
47623BSPRING, TENSION(FOR PARKING BRAKE BELL CRANK RETURN)
47624ACRANK, PARKING BRAKE BELL, RH
47625ACRANK, PARKING BRAKE BELL, LH
47628BRACKET, REAR BRAKE BELLCRANK
47633CBOOT, REAR BRAKE BELLCRANK, RH
47634ABOOT, REAR BRAKE BELLCRANK, LH
47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH
47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH
9011906084
main90119-06084
9014360002
main90143-60002
9161160814
main91611-60814
9413060600
main94130-60600
40 parts on this diagram · 1 diagram in section
