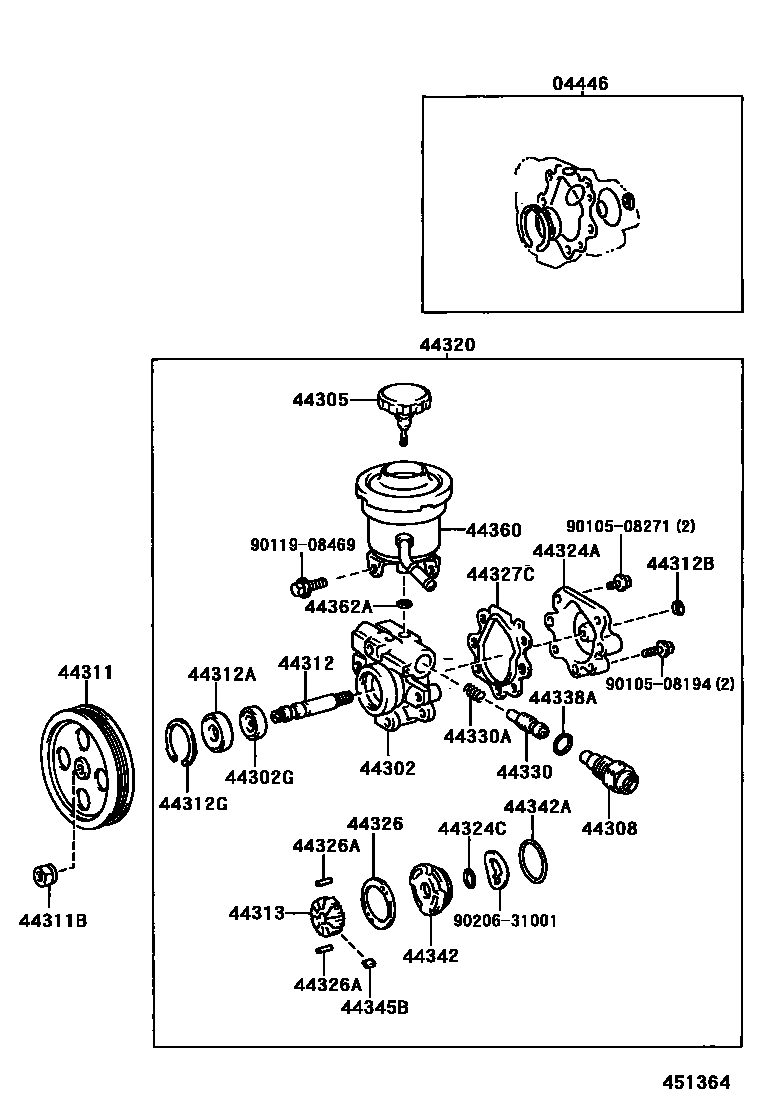

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1

04446GASKET KIT, POWER STEERING PUMP

main04446-30120iRZN18#199511-200008

main04446-34010iVZN18#199511

sub04446-53030

44302HOUSING SUB-ASSY, VANE PUMP, FRONT

main44302-34010iRZN18#199511-200008

main44302-34020iVZN18#199511

44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

main90311-17007iRZN18#199511-200008

main90311-18015iVZN18#199511

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-22040iRZN18#199511-200008

sub44305-22060

main44305-50010iVZN18#199511

sub44305-50020

44308UNION SUB-ASSY, PRESSURE PORT

main44308-33070iRZN18#,VZN18#199511

44311PULLEY, VANE PUMP

main44311-34020iRZN18#199511-200008

main44311-34030iVZN18#199511

44311BNUT(FOR VANE PUMP PULLEY)

main90178-12003iRZN18#,VZN18#199807

main90179-12022iRZN18#,VZN18#199511-199807

44312SHAFT, VANE PUMP

main44312-26020iRZN18#199511-200008

main44312-32020iVZN18#199511

44312ABEARING(FOR VANE PUMP SHAFT)

main90363-17008iRZN18#199511-200008

sub90363-17013

44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)

main90520-10003iVZN18#199511

main90520-15001iRZN18#199511-200008

sub90520-15005

44312GRING, SNAP, NO.2(FOR VANE PUMP SHAFT BEARING)

main90521-44002iRZN18#199511-200008

44313ROTOR, VANE PUMP

main44313-26060iRZN18#,VZN18#199511

NO MARK

main44313-26070iRZN18#,VZN18#199511

MARK 1

main44313-26080iRZN18#,VZN18#199511

MARK 2

main44313-26090iRZN18#,VZN18#199511

MARK 3

main44313-26100iRZN18#,VZN18#199511

MARK 4

44320PUMP ASSY, VANE

main44320-35480iRZN18#199511-200008

main44320-35490iVZN18#199511

44324AHOUSING, PUMP, REAR

main44324-34010iRZN18#199511-200008

main44324-34020iVZN18#199511

44324CRING, O(FOR PUMP HOUSING REAR)

main90301-18007iRZN18#,VZN18#199511

44326RING, CAM(FOR VANE PUMP)

main44325-32270iRZN18#,VZN18#199511

NO MARK

main44325-32280iRZN18#,VZN18#199511

MARK 1

main44325-32290iRZN18#,VZN18#199511

MARK 2

main44325-32300iRZN18#,VZN18#199511

MARK 3

main44325-32310iRZN18#,VZN18#199511

MARK 4

44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)

main90250-04071iRZN18#,VZN18#199511

L=23.3,OD=4.0

44327CGASKET, VANE PUMP HOUSING

main44327-26010iRZN18#,VZN18#199511

44330VALVE ASSY, FLOW CONTROL

main44330-26071iRZN18#,VZN18#199511

MARK A

main44330-26081iRZN18#,VZN18#199511

MARK B

main44330-26091iRZN18#,VZN18#199511

MARK C

main44330-26101iRZN18#,VZN18#199511

MARK D

main44330-26111iRZN18#,VZN18#199511

MARK E

main44330-26121iRZN18#,VZN18#199511

MARK F

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90501-13034iRZN18#,VZN18#199511

44338ARING, O(FOR PRESSURE PORT UNION)

main90301-19003iRZN18#,VZN18#199511-199711

ID=19.5,OD=22.5

sub90301-19013

main90301-19013iRZN18#,VZN18#199711

ID=19.2,OD=22.3

sub90301-19018

44342PLATE, VANE PUMP SIDE, REAR

main44342-26020iRZN18#,VZN18#199511

44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)

main90301-47001iRZN18#,VZN18#199511

44345BPLATE, VANE PUMP

main44345-26010iRZN18#,VZN18#199511

L=15.000

main44345-26020iRZN18#,VZN18#199511

L=14.998

main44345-26030iRZN18#,VZN18#199511

L=14.996

main44345-26040iRZN18#,VZN18#199511

L=14.994

main44345-26050iRZN18#,VZN18#199511

L=14.992

44360RESERVOIR ASSY, VANE PUMP OIL

main44306-35240iVZN18#199511

main44306-35250iRZN18#199511-200008

44362ARING, O(FOR VANE PUMP OIL RESERVOIR)

main90301-11010iRZN18#,VZN18#199511-199711

sub90301-11016

main90301-11016iRZN18#,VZN18#199711

9010508194

main90105-08194

9010508271

main90105-08271

9011908469

main90119-08469

9020631001

main90206-31001

30 parts on this diagram · 2 diagrams in section
