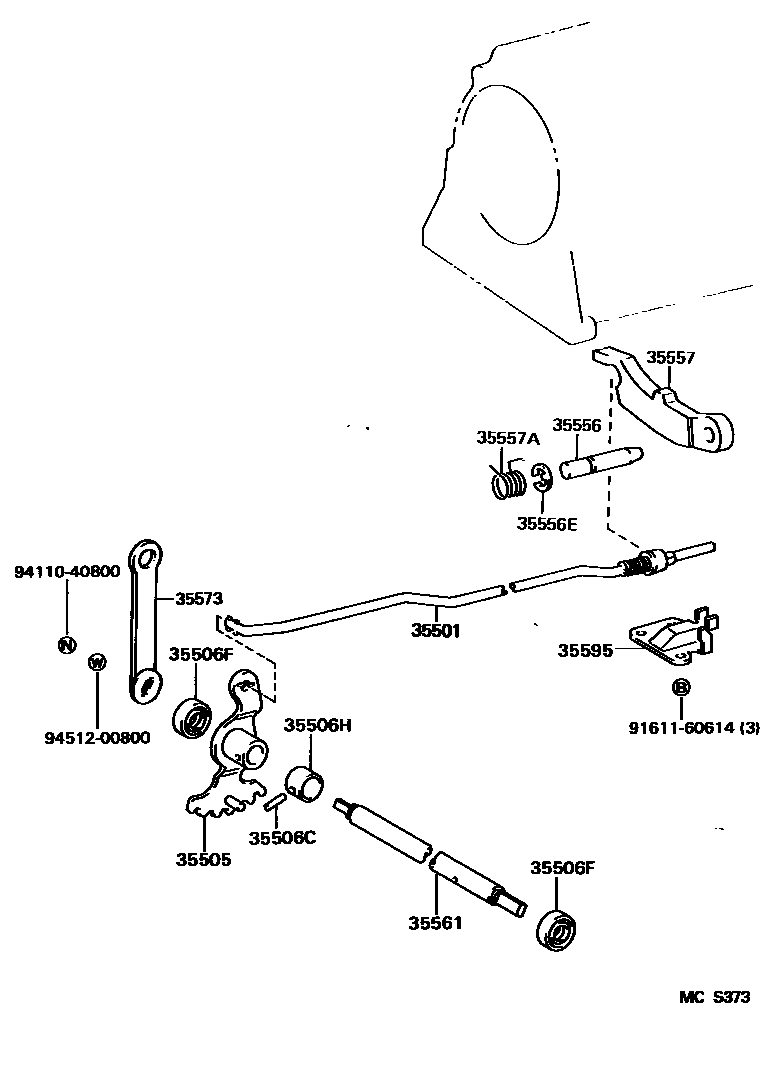

THROTTLE LINK & VALVE LEVER (ATM)

0001 1A340E,A340F 0002 1A340E,A340F 0003 1A340E,A340F

35501ROD SUB-ASSY, PARKING LOCK

main35501-60010iRZN18#,VZN18#..4FC199511

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-30020iVZN180200008

main35505-30021iRZN180,VZN180..4FC199807-200008

main35505-50010iRZN18#,VZN18#..4FC199511-199807

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iRZN18#,VZN18#..4FC199511

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iRZN18#,VZN18#..4FC199511

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20006iRZN18#,VZN18#..4FC199511

35556SHAFT, PARKING LOCK PAWL

main35556-30020iRZN18#,VZN18#..4FC199511

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iRZN18#,VZN18#..4FC199511

35557PAWL, PARKING LOCK

main35557-60020iRZN18#,VZN18#..4FC199511

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-21002iRZN18#,VZN18#..4FC199511

35561SHAFT, MANUAL VALVE LEVER

main35561-35010iRZN18#,VZN18#..4FC199511

35573LEVER, TRANSMISSION CONTROL SHAFT, LH

main35573-35030iRZN185,VZN185..4FC199511

main35573-35050iRZN180,VZN180..4FC199511

35595BRACKET, PARKING LOCK PAWL

main35595-60010iRZN18#,VZN18#..4FC199511

9161160614

main91611-60614

9411040800

main94110-40800

9451200800

main94512-00800

15 parts on this diagram · 3 diagrams in section
